Prefix of the output function (Normally Open / Normally Closed)

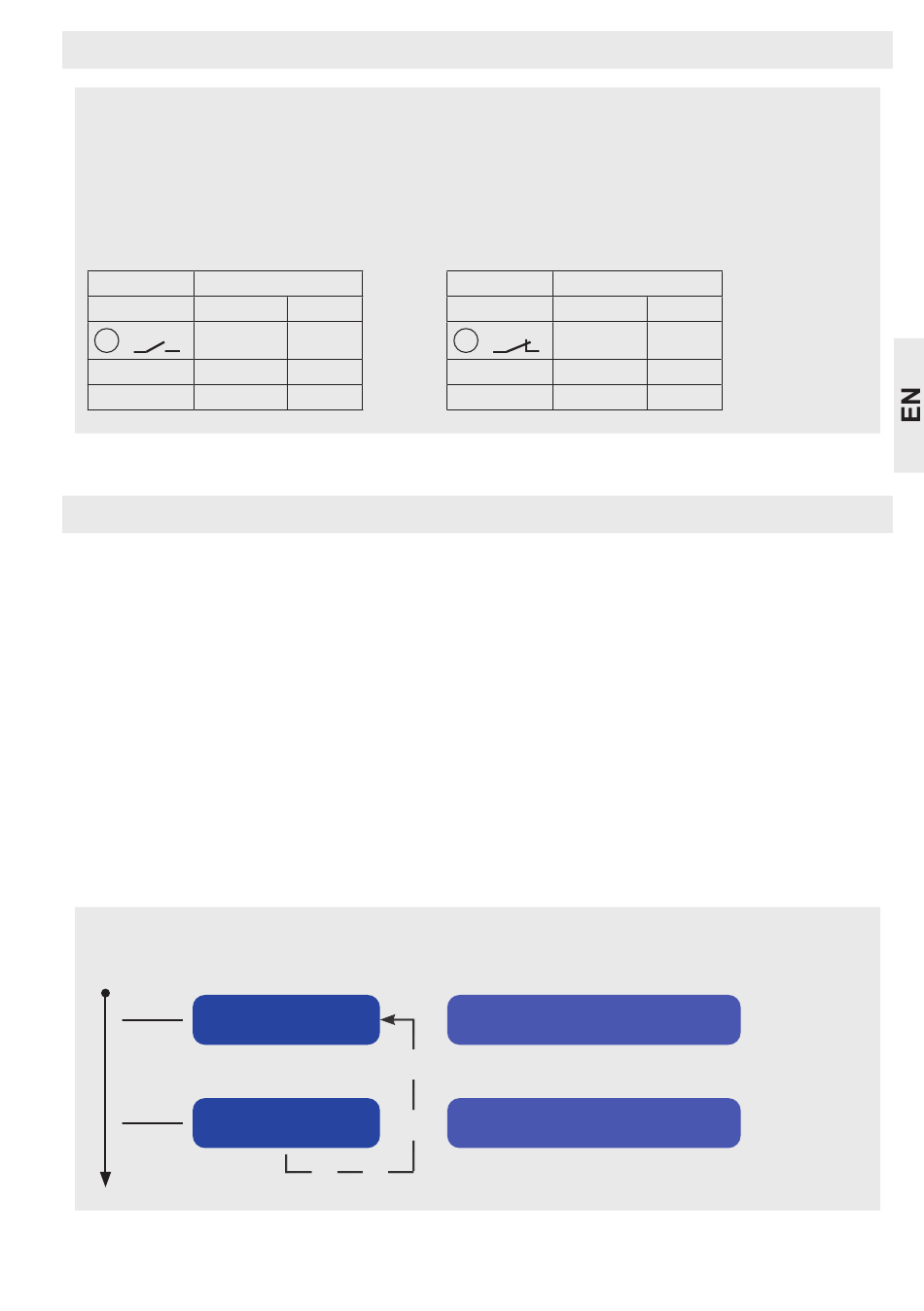

Options of the output functions and optical representation
0 = Medium / object not detected
1 = Medium / object detected
S1 = Switching point 1
A1 = Output 1
Output function normally open
Normally open
S1 0
Open
A1
LED green On
LED yellow Off
Prefix / Adjustment output function
The adjustment can be carried out optionally with the teach magnet or with the teach wire.
Prefix / Adjustment with EasyTeach by Wire (ETW):
The menu for the output functions starts by activating the EasyTeach connection (Teach wire / Teach
pin with the supply voltage UB+) before switching on the supply voltage. By continuing to hold the
EasyTeach connection actively the menu goes through the various tiers of the output functions in an in-
finite loop. The menu always starts with the output function normally open and changes every 5 seconds.
The desired output function is set by disconnecting the wire.
Prefix / Adjustment with EasyTeach by Magnet (ETM):
The menu for the output functions starts by holding the EasyTeach magnet on the EasyTeach spot
before switching on the supply voltage. By continuing to hold the EasyTeach magnet on the
EasyTeach spot the menu goes through the various tiers of the output functions in an infinite loop. The
menu always starts with the output function normally open and changes every 5 seconds. The desired
output function is set by removing the EasyTeach magnet.
Output function
Normally open*
Normally closed
Output function normally closed
1 S1
Closed
A1
Off LED green
On LED yellow Off
Optical representation
Normally closed
0
Closed
On
LED flashes green
LED flashes yellow
1
Open
Off
On
*Delivery configuration
