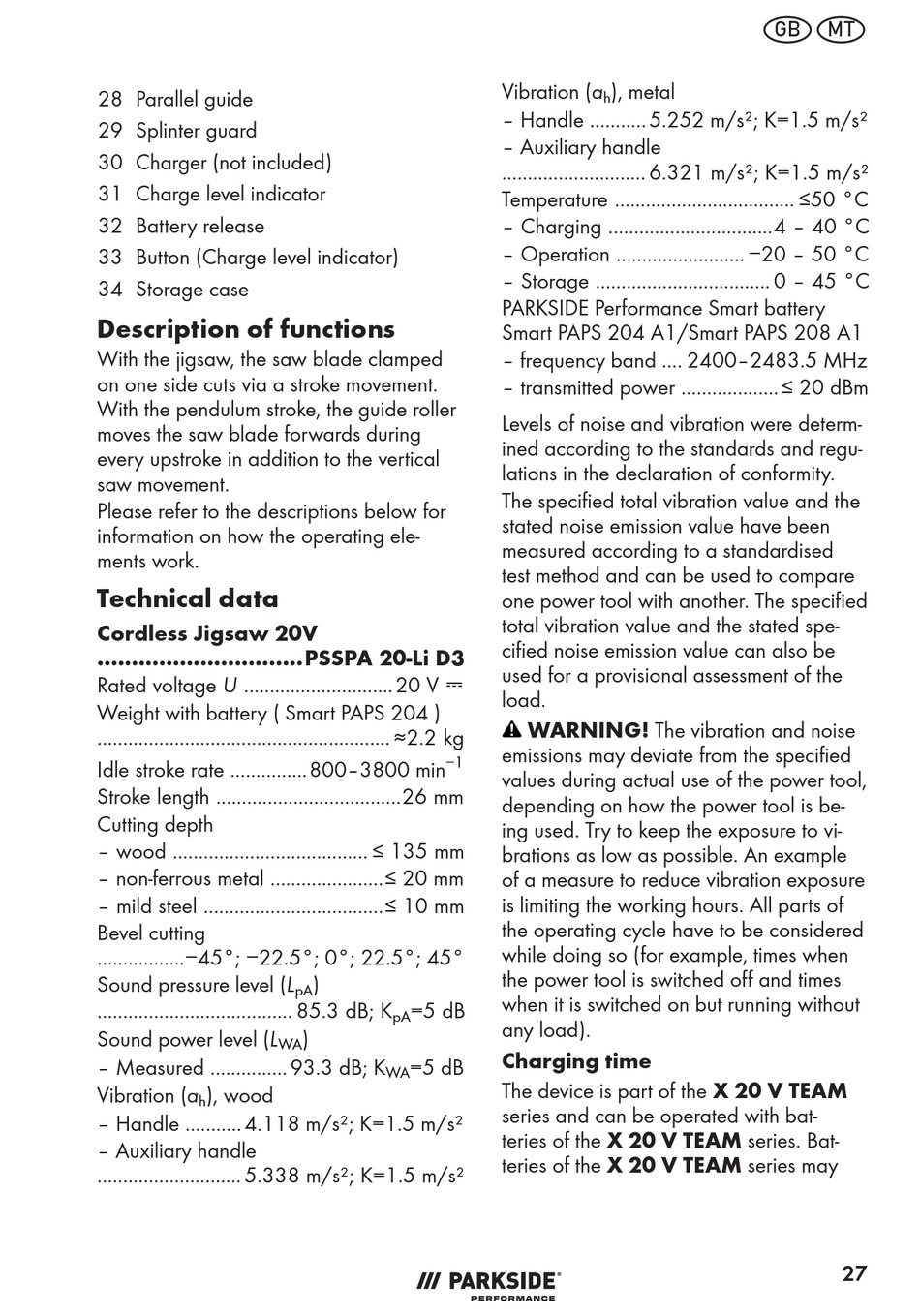

28 Parallel guide
29 Splinter guard
30 Charger (not included)
31 Charge level indicator
32 Battery release
33 Button (Charge level indicator)
34 Storage case
Description of functions
With the jigsaw, the saw blade clamped
on one side cuts via a stroke movement.
With the pendulum stroke, the guide roller
moves the saw blade forwards during
every upstroke in addition to the vertical
saw movement.
Please refer to the descriptions below for
information on how the operating ele-
ments work.
Technical data
Cordless Jigsaw 20V
..............................PSSPA 20-Li D3
Rated voltage U ............................. 20 V ⎓
Weight with battery ( Smart PAPS 204 )
......................................................... ≈2.2 kg
Idle stroke rate ...............800–3800 min
Stroke length ....................................26 mm
Cutting depth
– wood ...................................... ≤ 135 mm
– non-ferrous metal ......................≤ 20 mm
– mild steel ...................................≤ 10 mm
Bevel cutting
.................−45°; −22.5°; 0°; 22.5°; 45°
Sound pressure level (L
...................................... 85.3 dB; K
Sound power level (L
– Measured ............... 93.3 dB; K
Vibration (a ), wood
h
– Handle ........... 4.118 m/s²; K=1.5 m/s²
– Auxiliary handle
............................ 5.338 m/s²; K=1.5 m/s²
−1
)
pA
=5 dB
pA
)
WA
=5 dB
WA
Vibration (a ), metal
h
– Handle ........... 5.252 m/s²; K=1.5 m/s²
– Auxiliary handle
............................ 6.321 m/s²; K=1.5 m/s²
Temperature ................................... ≤50 °C
– Charging ................................4 – 40 °C
– Operation ......................... −20 – 50 °C
– Storage .................................. 0 – 45 °C
PARKSIDE Performance Smart battery
Smart PAPS 204 A1/Smart PAPS 208 A1
– frequency band .... 2400–2483.5 MHz
– transmitted power ................... ≤ 20 dBm
Levels of noise and vibration were determ-
ined according to the standards and regu-
lations in the declaration of conformity.
The specified total vibration value and the
stated noise emission value have been
measured according to a standardised
test method and can be used to compare
one power tool with another. The specified
total vibration value and the stated spe-
cified noise emission value can also be
used for a provisional assessment of the
load.
WARNING! The vibration and noise
emissions may deviate from the specified
values during actual use of the power tool,
depending on how the power tool is be-
ing used. Try to keep the exposure to vi-
brations as low as possible. An example
of a measure to reduce vibration exposure
is limiting the working hours. All parts of
the operating cycle have to be considered
while doing so (for example, times when
the power tool is switched off and times
when it is switched on but running without
any load).
Charging time
The device is part of the X 20 V TEAM
series and can be operated with bat-
teries of the X 20 V TEAM series. Bat-
teries of the X 20 V TEAM series may
