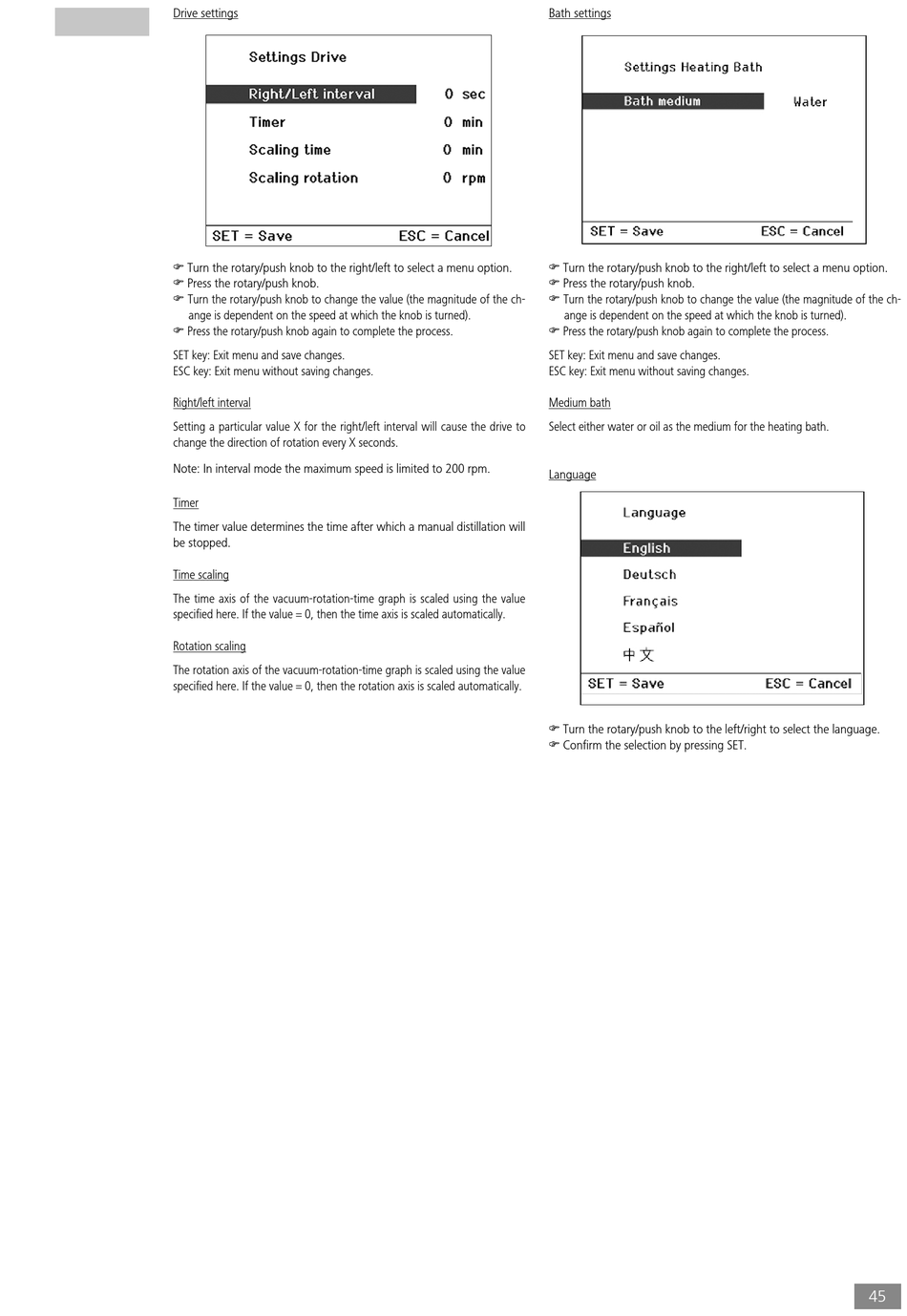

IKA RV 10 Control Betriebsanleitung Seite 45

Drive settings
 Turn the rotary/push knob to the right/left to select a menu option.
 Press the rotary/push knob.
 Turn the rotary/push knob to change the value (the magnitude of the ch-
ange is dependent on the speed at which the knob is turned).
 Press the rotary/push knob again to complete the process.
SET key: Exit menu and save changes.
ESC key: Exit menu without saving changes.
Right/left interval
Setting a particular value X for the right/left interval will cause the drive to
change the direction of rotation every X seconds.
Note: In interval mode the maximum speed is limited to 200 rpm.
Timer
The timer value determines the time after which a manual distillation will
be stopped.
Time scaling
The time axis of the vacuum-rotation-time graph is scaled using the value
specified here. If the value = 0, then the time axis is scaled automatically.
Rotation scaling
The rotation axis of the vacuum-rotation-time graph is scaled using the value
specified here. If the value = 0, then the rotation axis is scaled automatically.
Bath settings
 Turn the rotary/push knob to the right/left to select a menu option.
 Press the rotary/push knob.
 Turn the rotary/push knob to change the value (the magnitude of the ch-
ange is dependent on the speed at which the knob is turned).
 Press the rotary/push knob again to complete the process.
SET key: Exit menu and save changes.
ESC key: Exit menu without saving changes.
Medium bath
Select either water or oil as the medium for the heating bath.
Language
 Turn the rotary/push knob to the left/right to select the language.
 Confirm the selection by pressing SET.
