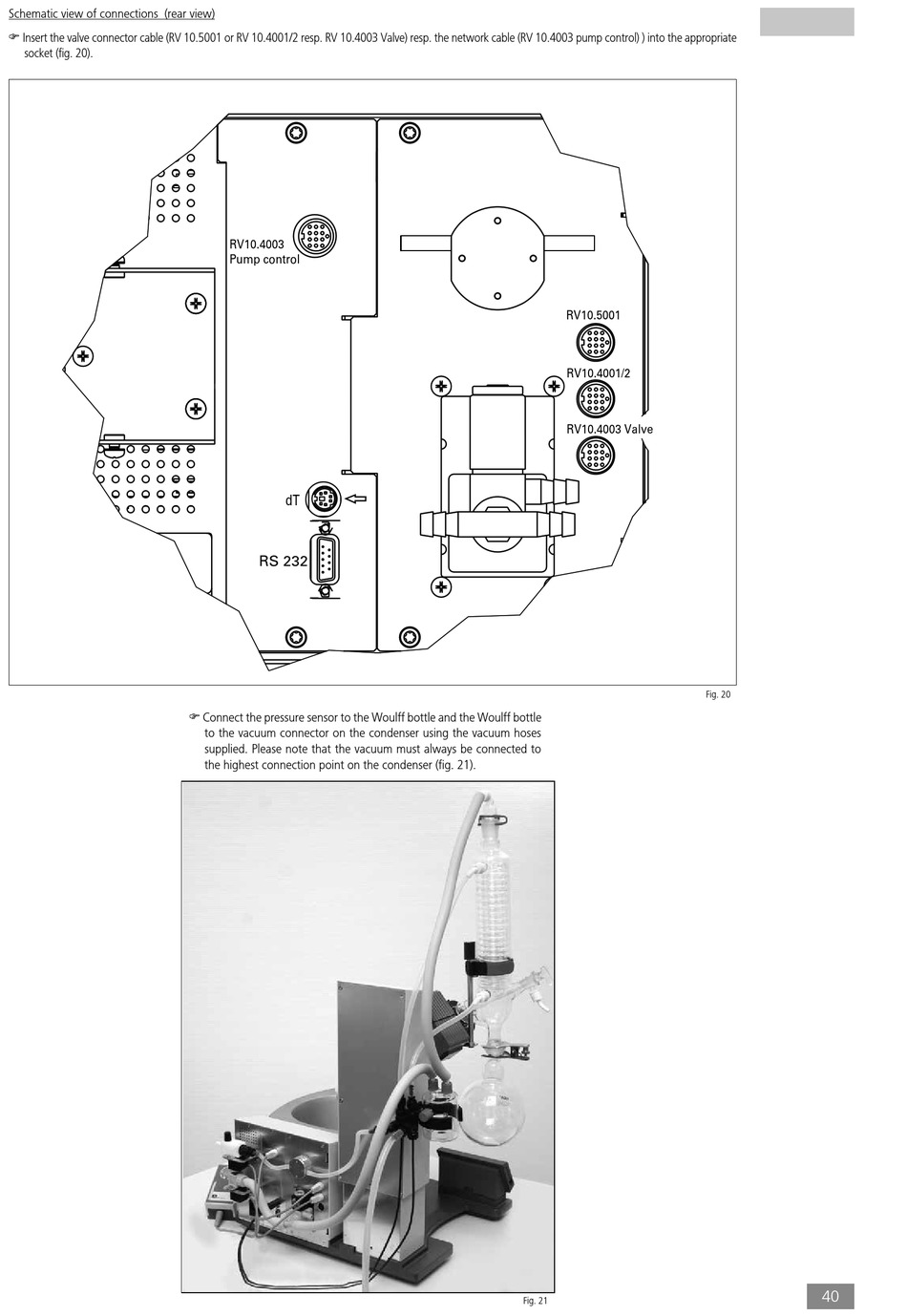

Schematic view of connections (rear view)
 Insert the valve connector cable (RV 10.5001 or RV 10.4001/2 resp. RV 10.4003 Valve) resp. the network cable (RV 10.4003 pump control) ) into the appropriate
socket (fig. 20).
RV10.4003
Pump control
dT
RS 232
 Connect the pressure sensor to the Woulff bottle and the Woulff bottle
to the vacuum connector on the condenser using the vacuum hoses
supplied. Please note that the vacuum must always be connected to
the highest connection point on the condenser (fig. 21).
RV10.5001
RV10.4001/2
RV10.4003 Valve
Fig. 21
Fig. 20
