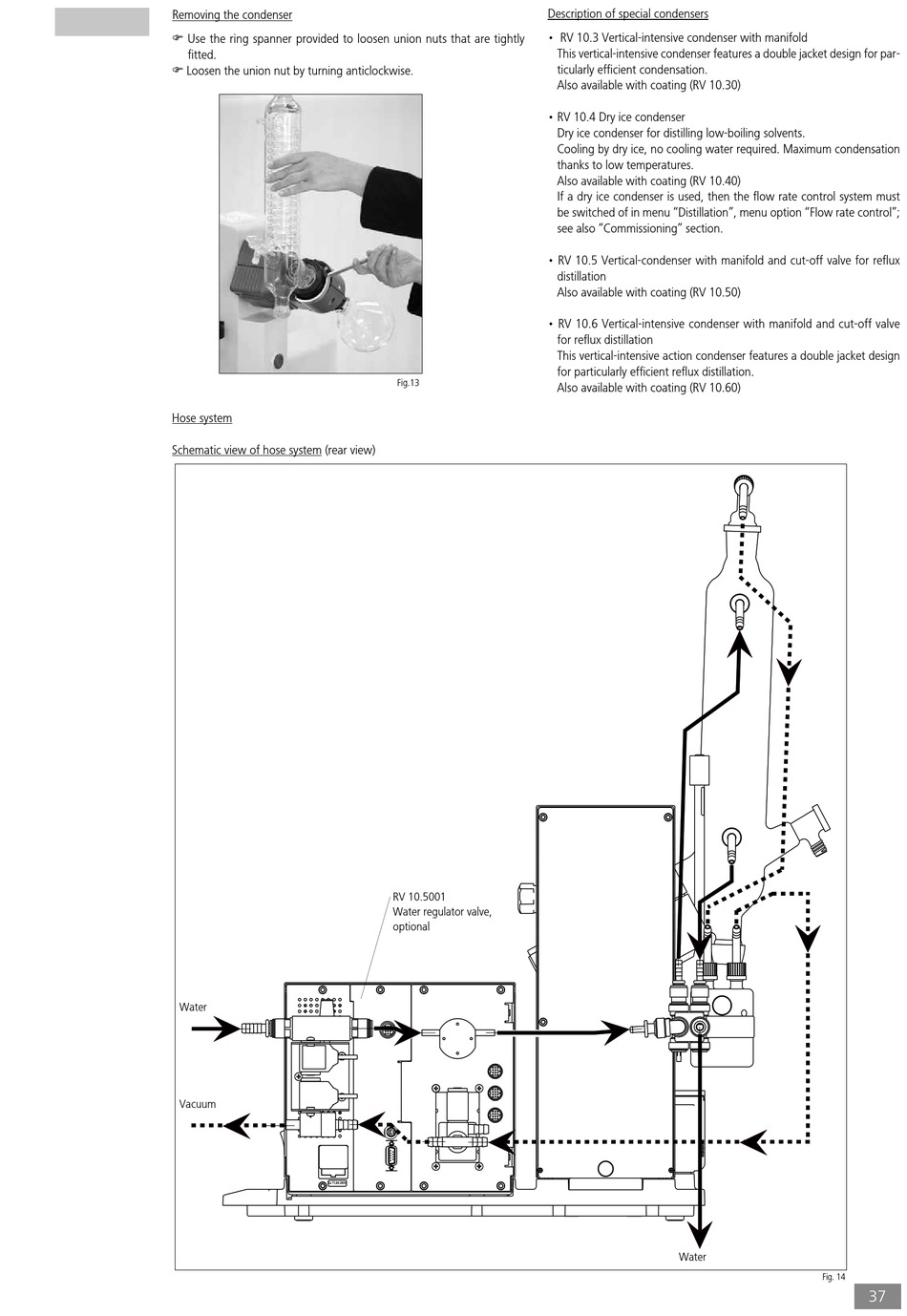

IKA RV 10 Control Betriebsanleitung Seite 37

Removing the condenser
 Use the ring spanner provided to loosen union nuts that are tightly
fitted.
 Loosen the union nut by turning anticlockwise.
Hose system
Schematic view of hose system (rear view)
Water
Vacuum
2x T1,6A 250V
Description of special condensers
• RV 10.3 Vertical-intensive condenser with manifold
This vertical-intensive condenser features a double jacket design for par-
ticularly efficient condensation.
Also available with coating (RV 10.30)
• RV 10.4 Dry ice condenser
Dry ice condenser for distilling low-boiling solvents.
Cooling by dry ice, no cooling water required. Maximum condensation
thanks to low temperatures.
Also available with coating (RV 10.40)
If a dry ice condenser is used, then the flow rate control system must
be switched of in menu "Distillation", menu option "Flow rate control";
see also "Commissioning" section.
• RV 10.5 Vertical-condenser with manifold and cut-off valve for reflux
distillation
Also available with coating (RV 10.50)
• RV 10.6 Vertical-intensive condenser with manifold and cut-off valve
for reflux distillation
This vertical-intensive action condenser features a double jacket design
for particularly efficient reflux distillation.
Fig.13
Also available with coating (RV 10.60)
RV 10.5001
Water regulator valve,
optional
Water
Fig. 14
37
