PANEL DESCRIPTION 2

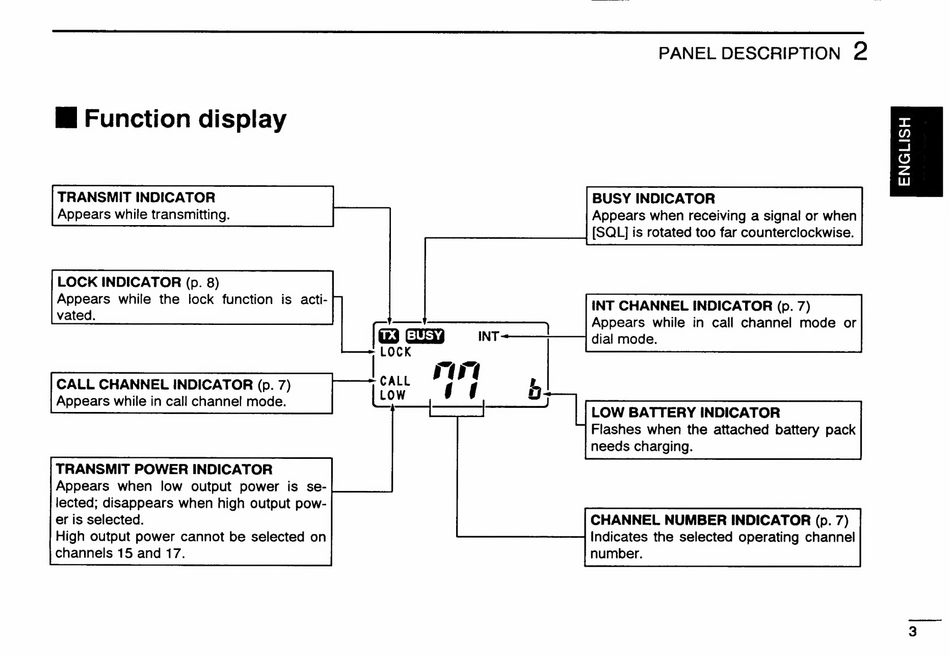

Mi Function display
TRANSMIT INDICATOR
Appears while transmitting.
LOCK INDICATOR (p. 8)
Appears while the lock function is acti-
vated.
BUSY INDICATOR
Appears when receiving a signal or when
[SQL] is rotated too far counterclockwise.
INT CHANNEL INDICATOR (p. 7)
Appears while in call channel mode or
dial mode.
InT-———
LOCK
| m7
CALL CHANNEL INDICATOR (p. 7) [tow rae | 5
Appears while in call channel mode.
aD LOW BATTERY INDICATOR
Flashes when the attached battery pack
needs charging.
TRANSMIT POWER INDICATOR
Appears when low output power is se-
lected; disappears when high output pow-
er is selected.
High output power cannot be selected on
channels 15 and 17.
CHANNEL NUMBER INDICATOR (p. 7)
Indicates the selected operating channel
number.
