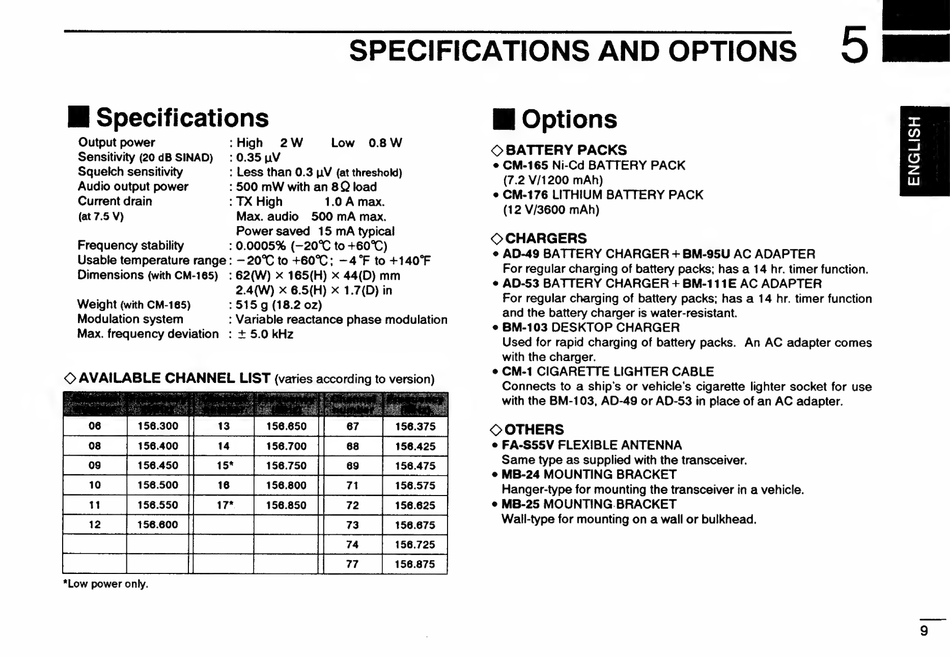

SPECIFICATIONS AND OPTIONS
li Specifications
Output power 'High 2W
Sensitivity (20 dB SINAD) :0.35 uV
Squelich sensitivity : Less than 0.3 pV (at threshold)
Low 0.8W
Audio output power : 500 mW with an 8Q load
Current drain : TX High 1.0 A max.
(at 7.5 V) Max. audio 500 mA max.
Power saved 15 mA typical
Frequency stability : 0.0005% (—20°C to +60)
Usable temperature range : —20°C to +60°C; —4°F to +140°F
Dimensions (with CM-165) :62(W) x 165(H) x 44(D) mm
2.4(W) X 6.5(H) < 1.7(D) in
> 515 g (18.2 02)
: Variable reactance phase modulation
: + §.0 kHz
Weight (with CM-165)
Modulation system
Max. frequency deviation
© AVAILABLE CHANNEL LIST (varies according to version)
*Low power only.
S
Mi Options
© BATTERY PACKS
° CM-165 Ni-Cd BATTERY PACK
(7.2 V/1200 mAh)
° CM-176 LITHIUM BATTERY PACK
(12 V/3600 mAh)
© CHARGERS
¢ AD-49 BATTERY CHARGER + BM-95U AC ADAPTER
For regular charging of battery packs; has a 14 hr. timer function.
e AD-53 BATTERY CHARGER + BM-111E AC ADAPTER
For regular charging of battery packs; has a 14 hr. timer function
and the battery charger is water-resistant.
e BM-103 DESKTOP CHARGER
Used for rapid charging of battery packs. An AC adapter comes
with the charger.
e CM-1 CIGARETTE LIGHTER CABLE
Connects to a ship's or vehicle's cigarette lighter socket for use
with the BM-103, AD-49 or AD-53 in place of an AC adapter.
© OTHERS
e FA-S55V FLEXIBLE ANTENNA
Same type as supplied with the transceiver.
e MB-24 MOUNTING BRACKET
Hanger-type for mounting the transceiver in a vehicle.
e MB-25 MOUNTING.BRACKET
Wall-type for mounting on a wall or bulkhead.
