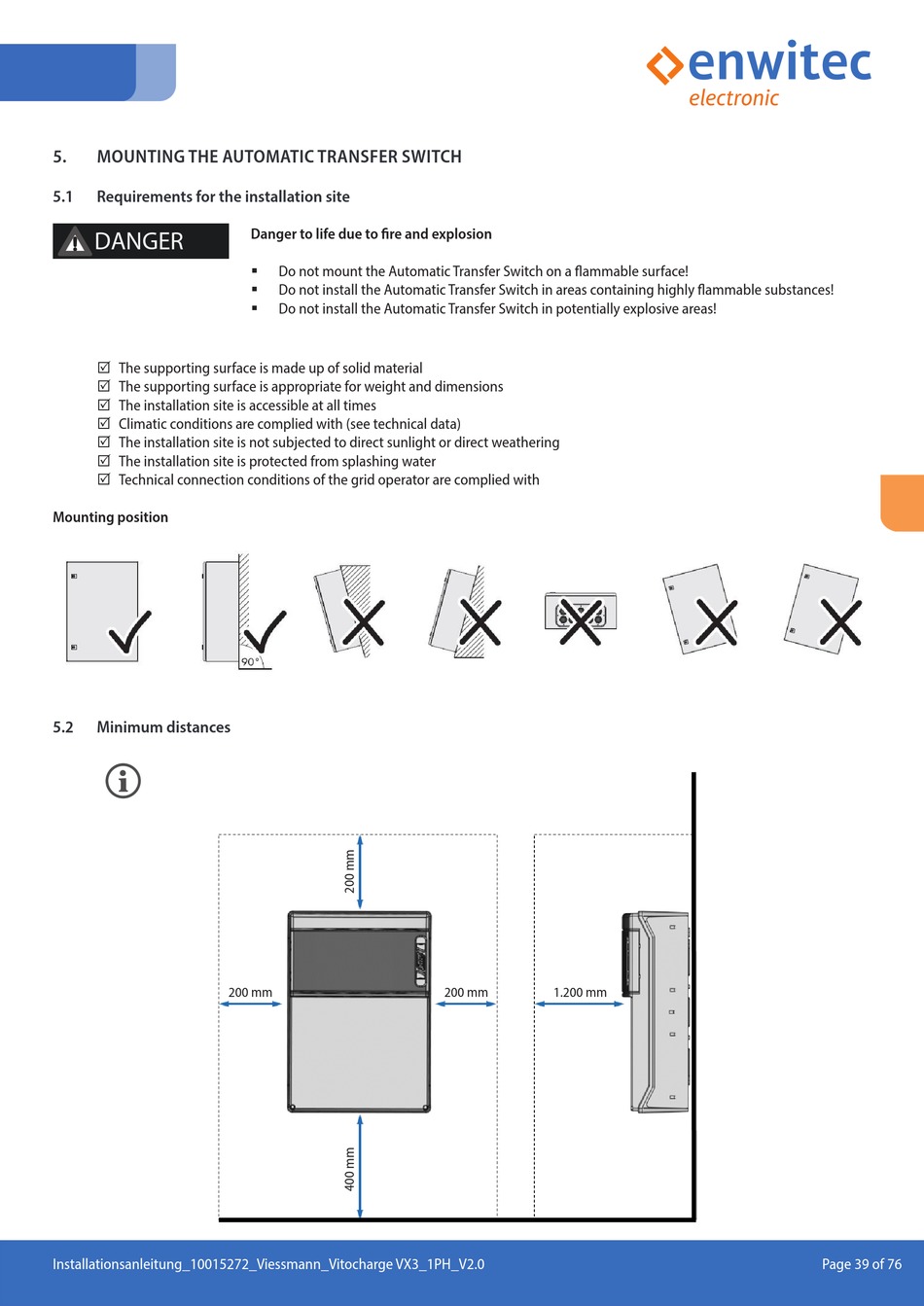

5. MOUNTING THE AUTOMATIC TRANSFER SWITCH
5.1 Requirements for the installation site
DANGER
5 The supporting surface is made up of solid material
5 The supporting surface is appropriate for weight and dimensions
5 The installation site is accessible at all times
5 Climatic conditions are complied with (see technical data)
5 The installation site is not subjected to direct sunlight or direct weathering
5 The installation site is protected from splashing water
5 Technical connection conditions of the grid operator are complied with
Mounting position
5.2 Minimum distances
Installationsanleitung_10015272_Viessmann_Vitocharge VX3_1PH_V2.0
Danger to life due to fire and explosion
Do not mount the Automatic Transfer Switch on a flammable surface!
ƒ
Do not install the Automatic Transfer Switch in areas containing highly flammable substances!
ƒ
Do not install the Automatic Transfer Switch in potentially explosive areas!
ƒ
200 mm 200 mm 1.200 mm
