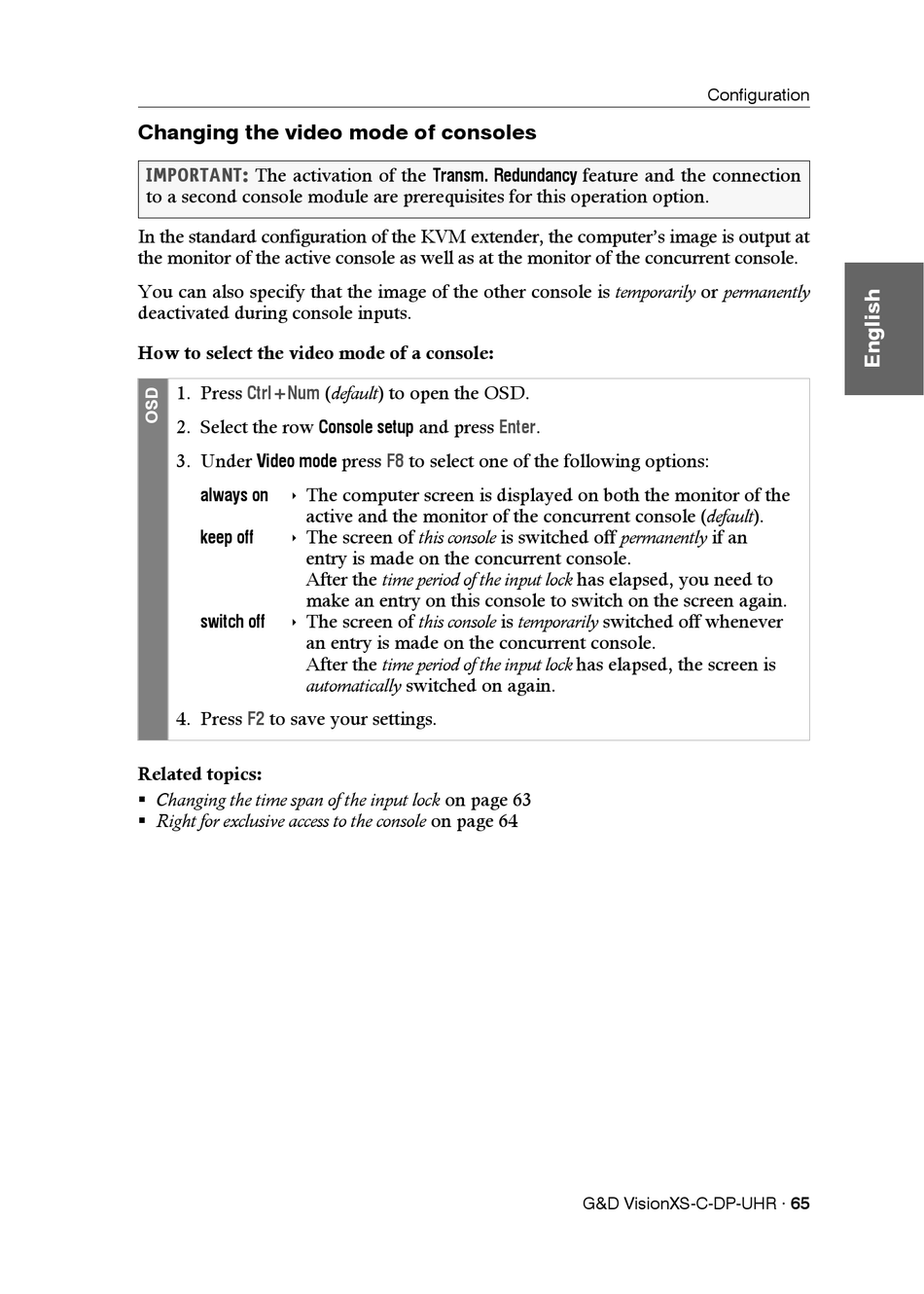

Changing the video mode of consoles
IMPORTANT: The activation of the
to a second console module are prerequisites for this operation option.
In the standard configuration of the KVM extender, the computer's image is output at
the monitor of the active console as well as at the monitor of the concurrent console.
You can also specify that the image of the other console is temporarily or permanently
deactivated during console inputs.
How to select the video mode of a console:
1. Press Ctrl+Num
2. Select the row
3. Under Video mode
 The computer screen is displayed on both the monitor of the
always on
active and the monitor of the concurrent console (default).
keep off  The screen of this console is switched off permanently if an
entry is made on the concurrent console.
After the time period of the input lock has elapsed, you need to
make an entry on this console to switch on the screen again.
switch off  The screen of this console is temporarily switched off whenever
an entry is made on the concurrent console.
After the time period of the input lock has elapsed, the screen is
automatically switched on again.
4. Press F2 to save your settings.
Related topics:
 Changing the time span of the input lock on page 63
 Right for exclusive access to the console on page 64
Transm. Redundancy
(default) to open the OSD.
Console setup and press
press F8 to select one of the following options:
feature and the connection
Enter .
G&D VisionXS-C-DP-UHR · 65
Configuration
