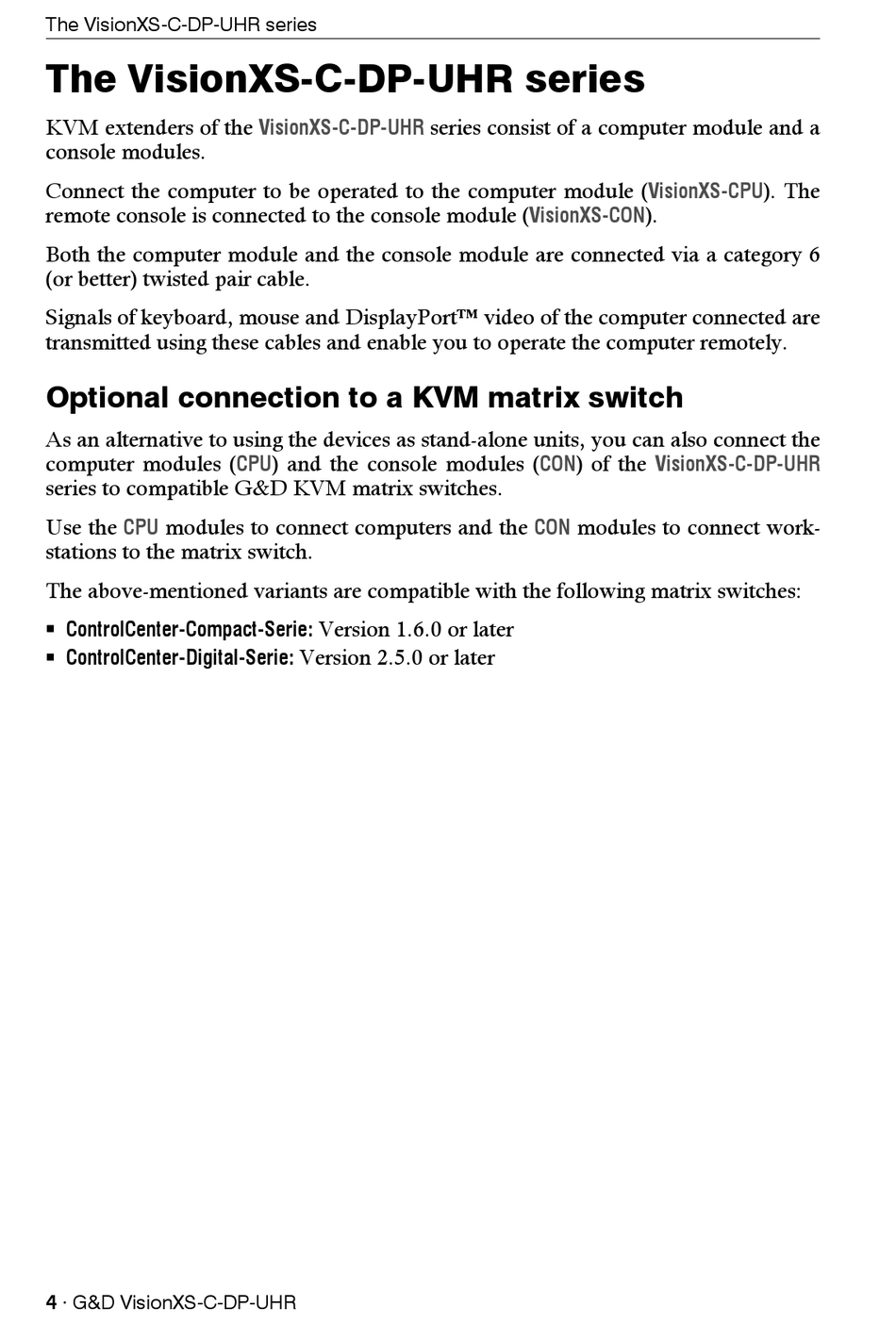

The VisionXS-C-DP-UHR series
The VisionXS-C-DP-UHR series
KVM extenders of the series consist of a computer module and a
VisionXS-C-DP-UHR
console modules.
Connect the computer to be operated to the computer module ( ). The
VisionXS-CPU
remote console is connected to the console module ( ).
VisionXS-CON
Both the computer module and the console module are connected via a category 6
(or better) twisted pair cable.
Signals of keyboard, mouse and DisplayPort™ video of the computer connected are
transmitted using these cables and enable you to operate the computer remotely.
Optional connection to a KVM matrix switch
As an alternative to using the devices as stand-alone units, you can also connect the
computer modules ( ) and the console modules ( ) of the
CPU CON VisionXS-C-DP-UHR
series to compatible G&D KVM matrix switches.
Use the modules to connect computers and the modules to connect work-
CPU CON
stations to the matrix switch.
The above-mentioned variants are compatible with the following matrix switches:
Version 1.6.0 or later
 ControlCenter-Compact-Serie:
 ControlCenter-Digital-Serie: Version 2.5.0 or later
4 · G&D VisionXS-C-DP-UHR
