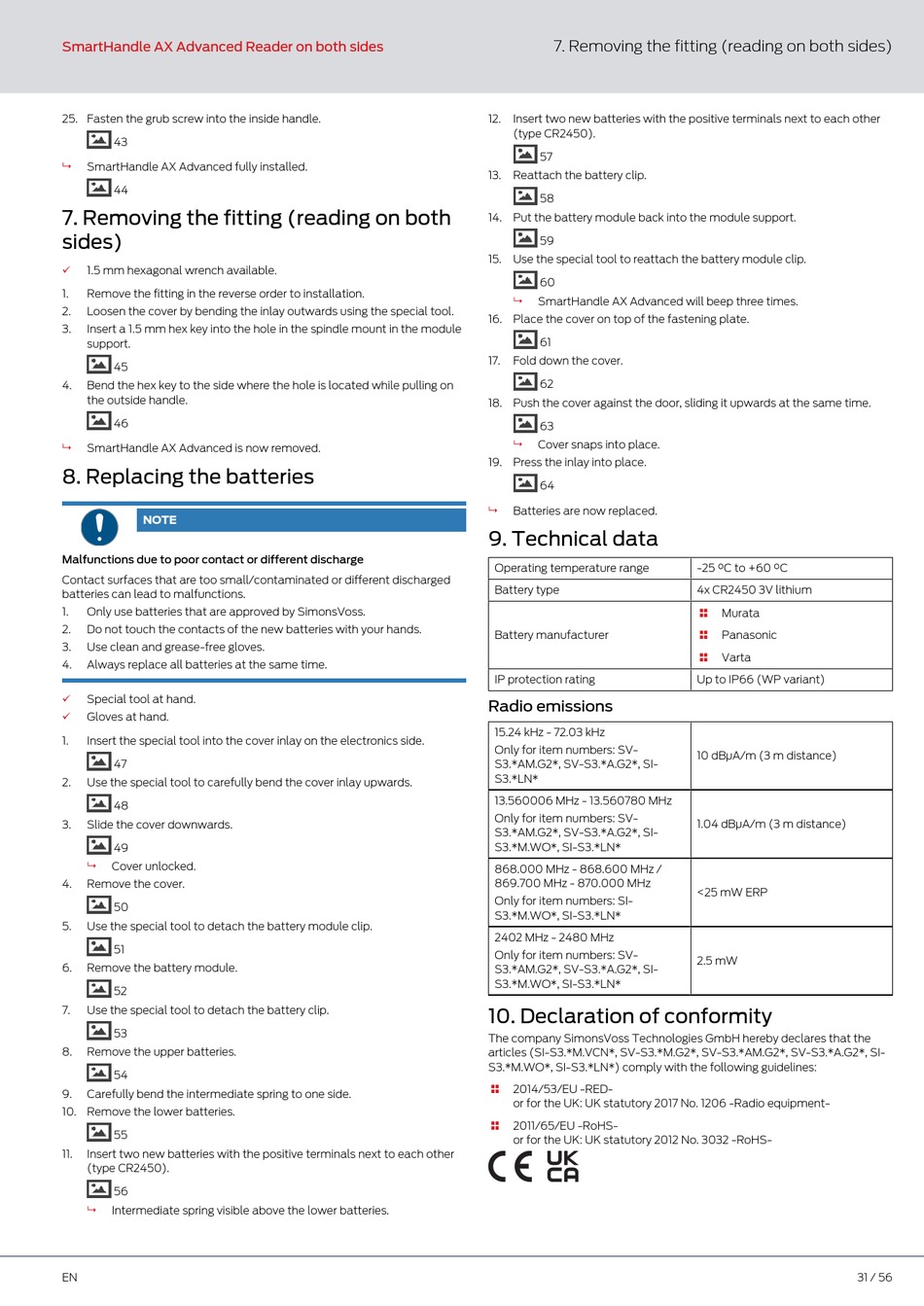

SmartHandle AX Advanced Reader on both sides
25. Fasten the grub screw into the inside handle.
43
9
SmartHandle AX Advanced fully installed.
44
7. Removing the fitting (reading on both
sides)
ü
1.5 mm hexagonal wrench available.
1.
Remove the fitting in the reverse order to installation.
2.
Loosen the cover by bending the inlay outwards using the special tool.
3.
Insert a 1.5 mm hex key into the hole in the spindle mount in the module
support.
45
4.
Bend the hex key to the side where the hole is located while pulling on
the outside handle.
46
9
SmartHandle AX Advanced is now removed.
8. Replacing the batteries
NOTE
Malfunctions due to poor contact or different discharge
Contact surfaces that are too small/contaminated or different discharged
batteries can lead to malfunctions.
1.
Only use batteries that are approved by SimonsVoss.
2.
Do not touch the contacts of the new batteries with your hands.
3.
Use clean and grease-free gloves.
4.
Always replace all batteries at the same time.
ü
Special tool at hand.
Gloves at hand.
ü
1.
Insert the special tool into the cover inlay on the electronics side.
47
2.
Use the special tool to carefully bend the cover inlay upwards.
48
3.
Slide the cover downwards.
49
Cover unlocked.
9
4.
Remove the cover.
50
5.
Use the special tool to detach the battery module clip.
51
6.
Remove the battery module.
52
7.
Use the special tool to detach the battery clip.
53
8.
Remove the upper batteries.
54
9.
Carefully bend the intermediate spring to one side.
10. Remove the lower batteries.
55
11.
Insert two new batteries with the positive terminals next to each other
(type CR2450).
56
9
Intermediate spring visible above the lower batteries.
EN
7. Removing the fitting (reading on both sides)
12.
Insert two new batteries with the positive terminals next to each other
(type CR2450).
57
13.
Reattach the battery clip.
58
14. Put the battery module back into the module support.
59
15.
Use the special tool to reattach the battery module clip.
60
9
SmartHandle AX Advanced will beep three times.
16. Place the cover on top of the fastening plate.
61
17.
Fold down the cover.
62
18. Push the cover against the door, sliding it upwards at the same time.
63
Cover snaps into place.
9
19. Press the inlay into place.
64
9
Batteries are now replaced.
9. Technical data
Operating temperature range
Battery type
Battery manufacturer
IP protection rating
Radio emissions
15.24 kHz - 72.03 kHz
Only for item numbers: SV-
S3.*AM.G2*, SV-S3.*A.G2*, SI-
S3.*LN*
13.560006 MHz - 13.560780 MHz
Only for item numbers: SV-
S3.*AM.G2*, SV-S3.*A.G2*, SI-
S3.*M.WO*, SI-S3.*LN*
868.000 MHz - 868.600 MHz /
869.700 MHz - 870.000 MHz
Only for item numbers: SI-
S3.*M.WO*, SI-S3.*LN*
2402 MHz - 2480 MHz
Only for item numbers: SV-
S3.*AM.G2*, SV-S3.*A.G2*, SI-
S3.*M.WO*, SI-S3.*LN*
10. Declaration of conformity
The company SimonsVoss Technologies GmbH hereby declares that the
articles (SI-S3.*M.VCN*, SV-S3.*M.G2*, SV-S3.*AM.G2*, SV-S3.*A.G2*, SI-
S3.*M.WO*, SI-S3.*LN*) comply with the following guidelines:
2014/53/EU -RED-
or for the UK: UK statutory 2017 No. 1206 -Radio equipment-
2011/65/EU -RoHS-
or for the UK: UK statutory 2012 No. 3032 -RoHS-
-25 °C to +60 °C
4x CR2450 3V lithium
Murata
Panasonic
Varta
Up to IP66 (WP variant)
10 dBµA/m (3 m distance)
1.04 dBµA/m (3 m distance)
<25 mW ERP
2.5 mW
31 / 56
