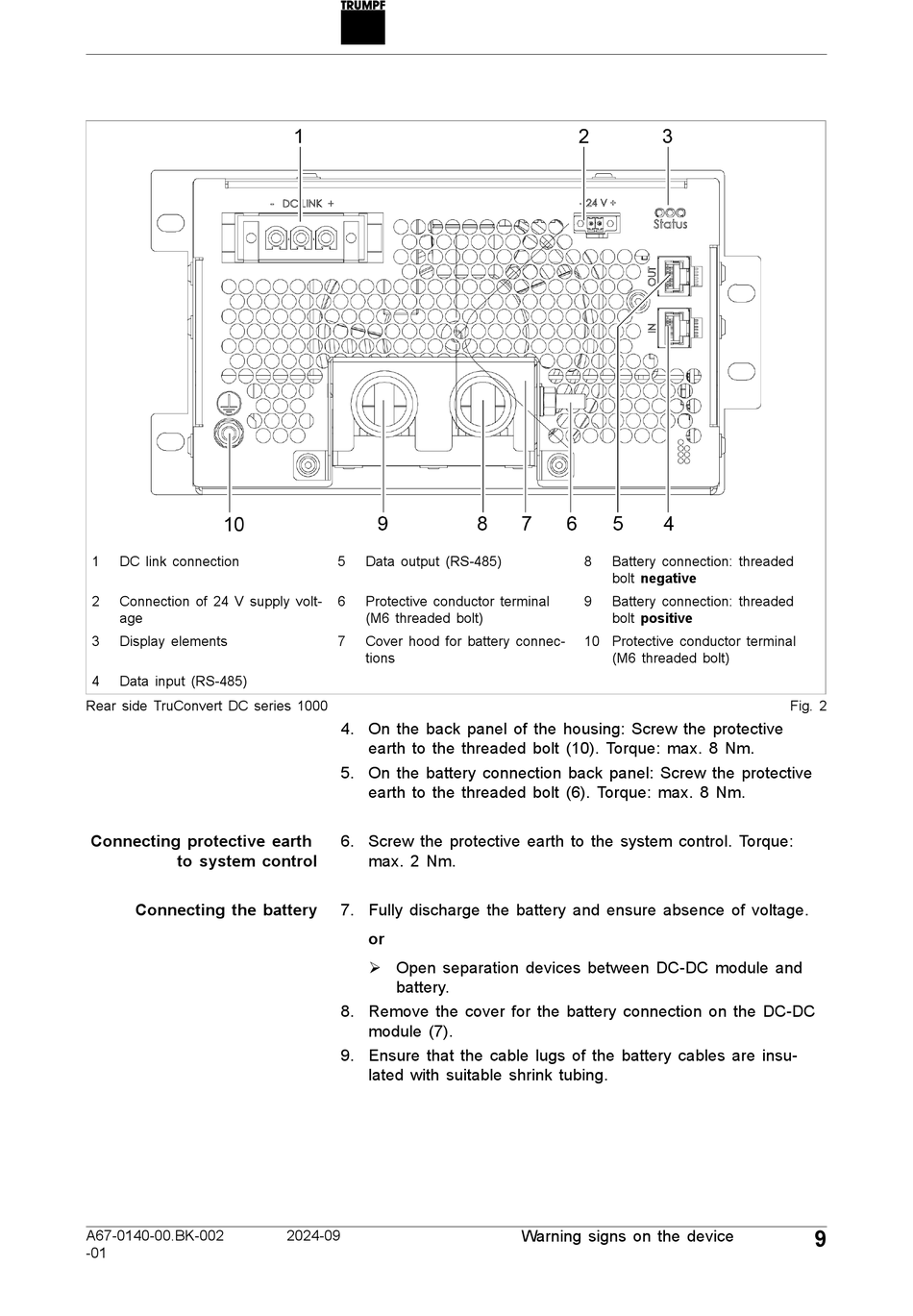

DC link connection
2
Connection of 24 V supply volt-
age
3
Display elements
4
Data input (RS-485)
Rear side TruConvert DC series 1000
Connecting protective earth
to system control
Connecting the battery
A67-0140-00.BK-002
-01
5
Data output (RS-485)
6
Protective conductor terminal
(M6 threaded bolt)
7
Cover hood for battery connec-
tions
4. On the back panel of the housing: Screw the protective
earth to the threaded bolt (10). Torque: max. 8 Nm.
5. On the battery connection back panel: Screw the protective
earth to the threaded bolt (6). Torque: max. 8 Nm.
6. Screw the protective earth to the system control. Torque:
max. 2 Nm.
7. Fully discharge the battery and ensure absence of voltage.
or
Ø Open separation devices between DC-DC module and
battery.
8. Remove the cover for the battery connection on the DC-DC
module (7).
9. Ensure that the cable lugs of the battery cables are insu-
lated with suitable shrink tubing.
2024-09
8
Battery connection: threaded
bolt negative
9
Battery connection: threaded
bolt positive
10 Protective conductor terminal
(M6 threaded bolt)
