Trumpf TruConvert DC 1008 Kurzanleitung Seite 11

1 DC link voltage

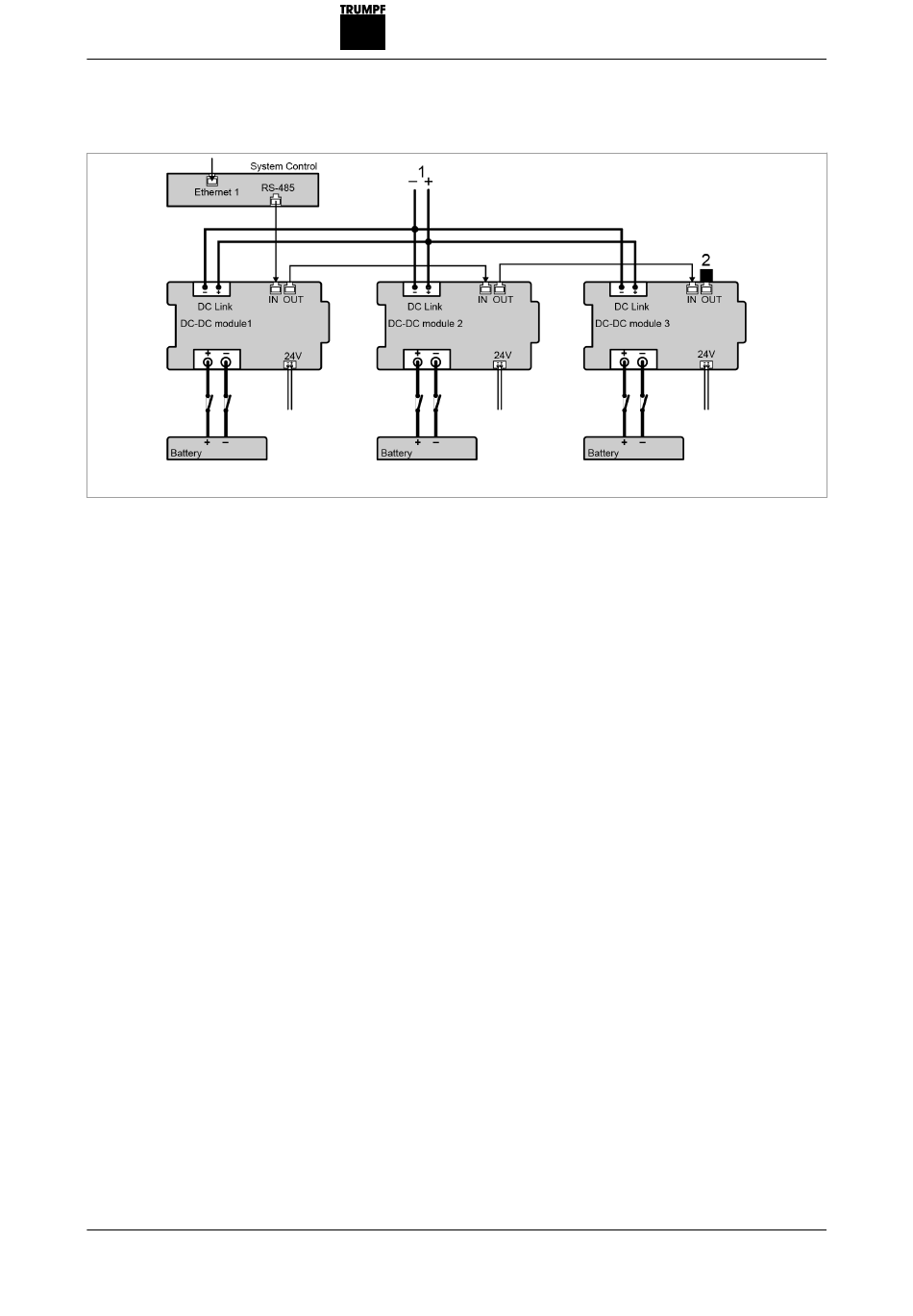

Circuit diagram: Example with 1 system control and 3 DC-DC-modules
A67-0140-00.BK-002
-01
Circuit diagram example
Note
To ensure data transmission, always connect the terminating
resistor to the last bus participant.
Connect the terminating resistor even if there is only one bus
participant.
Use only the provided terminating resistor.
2024-09
2 Terminating resistor
Warning signs on the device
Fig. 3
11
