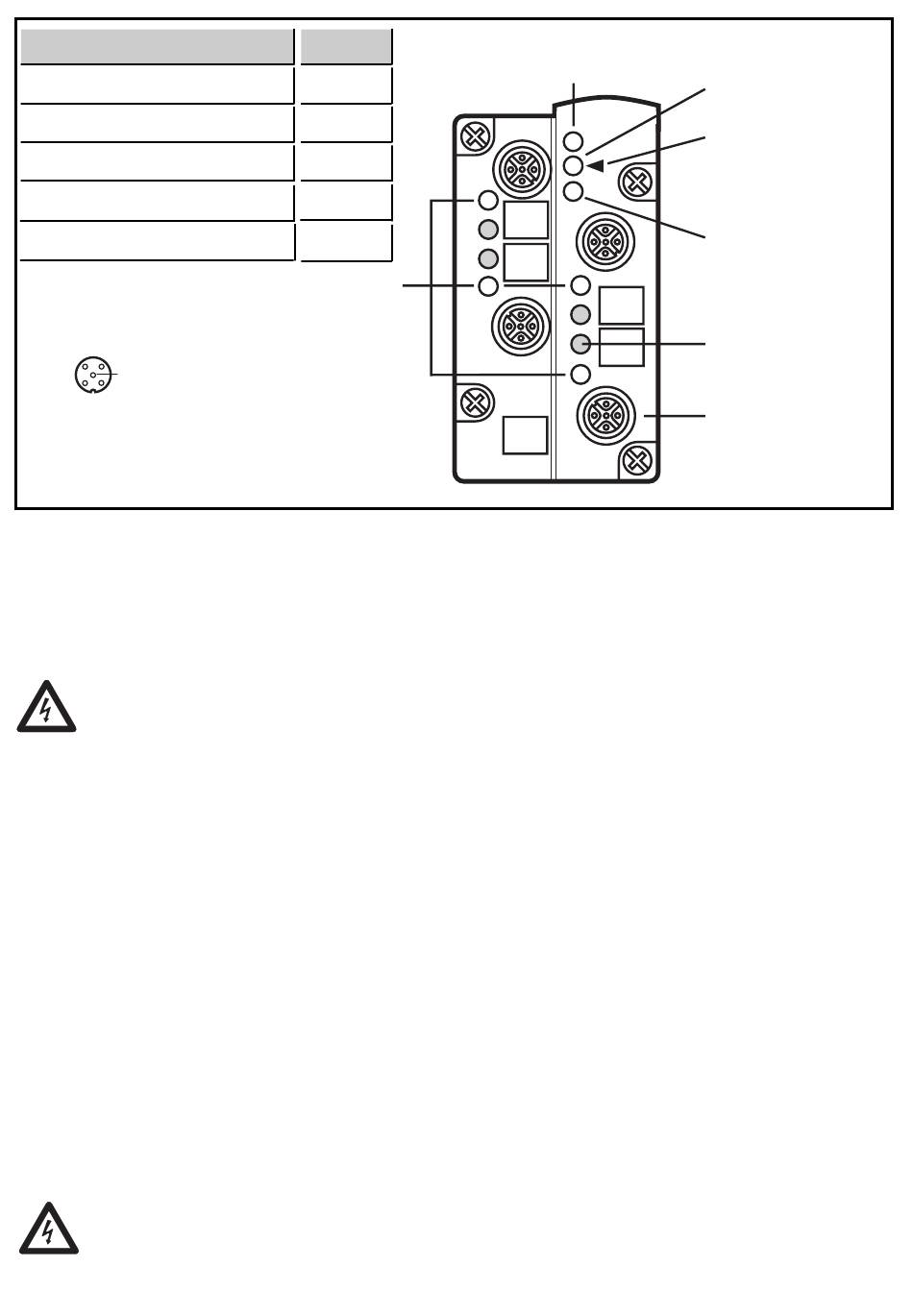

M12 socket
sensor supply L+
function check input
sensor supply L-
data input I
inputs
3 4
5
2 1
Addressing
Assign a free address between 1A and 31B. At the factory the address
is set to 0.
Do not remove the addressing plug while live.
Addressing with the addressing unit AC1144
If the mounted and wired module is used with the FC lower part
AC5010 (with addressing socket), it can be addressed via the address-
ing cable (E70213).
If it is used with the FC lower part AC5000 (without addressing sock-
et) the module must first be addressed via the addressing unit AC1144
and then mounted onto the lower part.
Infrared addressing
The AS-i module also offers the option of infrared addressing with the
addressing unit AC1144.
The AS-i communication (yellow cable) must be switched off
during the infrared addressing. To do so, disconnect the master.
6
PAGE
Pin
1
2
3
4
5
4x LED1 yellow
LED3 infrared reciever
LED2 red
FAULT
fixture infrared
adapter
LED green
PWR sensor
supply o.k
4x LED4 red
function check
input
4 sockets
M12
