Function and features

• AS-i profile: S-0.F.E
• maximum number of modules per master: 31
• AS-interface version 2.1

Operating and display elements

Mounting
Mount the module onto the wired module lower part of the AS-i net-
work, tightening torque 0.8Nm.

Technical data

You can download the data sheet from the Internet if required
(www.ifm-electronic.com).

Electrical connection

Connect the plugs of the actuators to the M12 sockets. The sensors
are supplied with voltage via the AS-i network. Do not connect the
inputs to an external potential. Cover the sockets not used with the
protective caps (AC3004) to guarantee protection rating IP67.
45

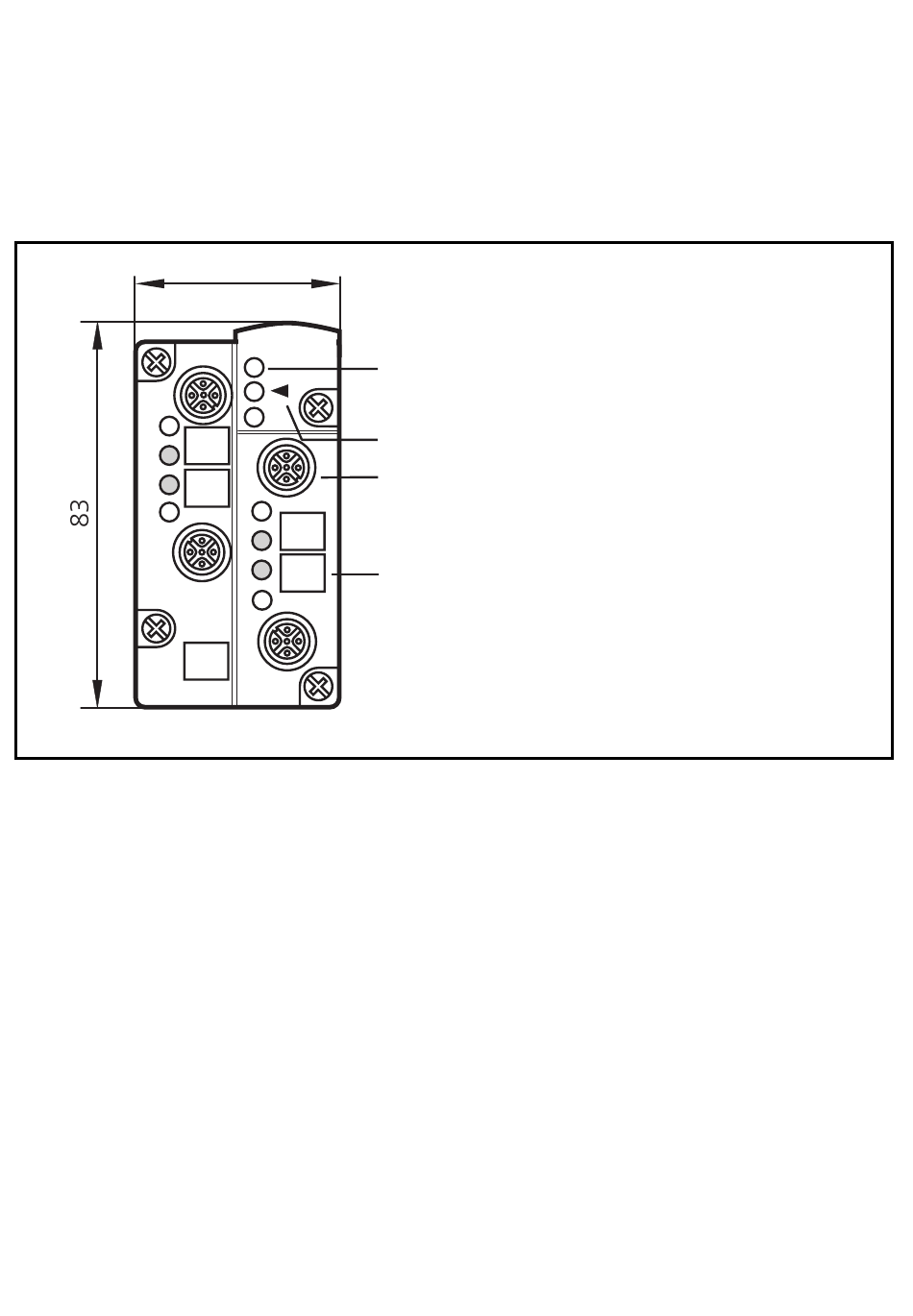

LEDs
fixture infrared adapter
4 sockets M12
labels
