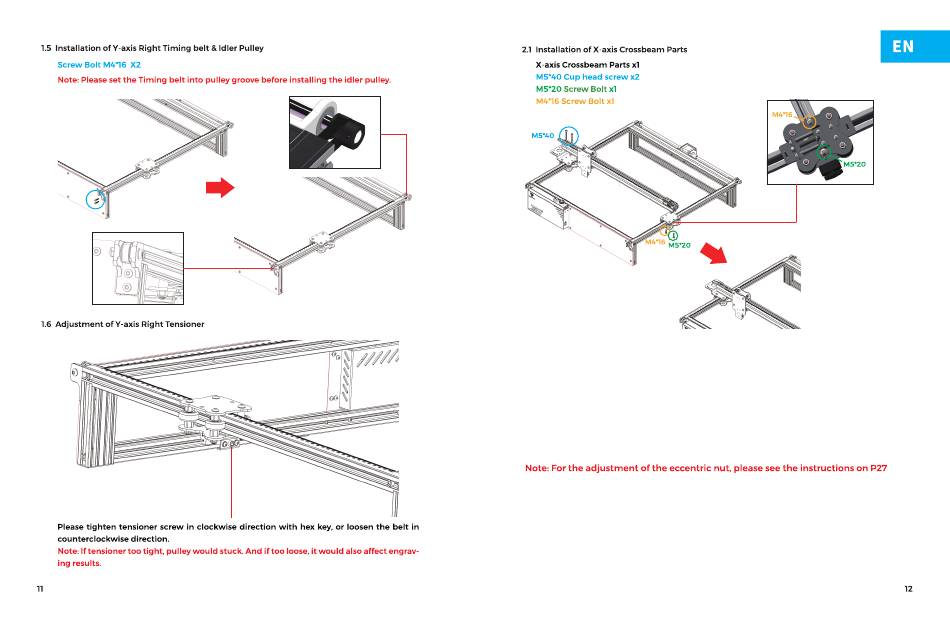

1.5 Installation of Y-axis Right Timing belt & Idler Pulley
Screw Bolt M4*16 X2
Note: Please set the Timing belt into pulley groove before installing
1.6 Adjustment of Y-axis Right Tensioner
6)
Please tighten tensioner screw in clockwise
counterclockwise direction.
Note: If tensioner too tight, pulley would stuck. And if too loose, it would also affect engrav-
ing results.
11
the idler pulley.
direction with hex key, or loosen the belt in
2.1 Installation of X-axis Crossbeam Parts
X-axis Crossbeam Parts xl
M5*40 Cup head screw x2
M5*20 Screw Bolt xl
M4*16 Screw Bolt xl
M5*40
M4*16
M5*20
Note: For the adjustment of the eccentric
M4*16
M5*20
nut, please see the instructions on P27
12
