two trees TS2 Bedienungsanleitung Seite 11

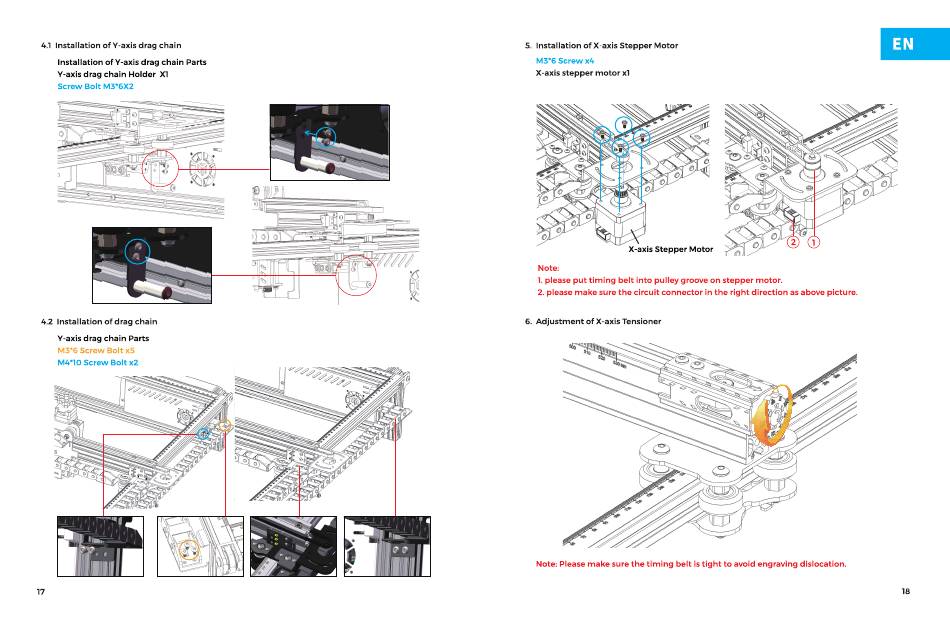

4.1 Installation of Y-axis drag chain
Installation of Y-axis drag chain Parts
Y-axis drag chain Holder Xl
Screw Bolt M3*6X2
4.2 Installation of drag chain
Y-axis drag chain Parts
M3*6 Screw Bolt x5
M4*10 Screw Bolt x2
17
5. Installation of X-axis Stepper Motor
M3*6 screw
X-axis stepper motor xl
X-axis Stepper Motor
Note:
I. please put timing belt into pulley groove on stepper
2. please make sure the circuit connector
6. Adjustment of X-axis Tensioner
Note: Please make sure the timing belt is tight to avoid engraving
motor.
in the right direction as above picture.
dislocation.
EN
18
