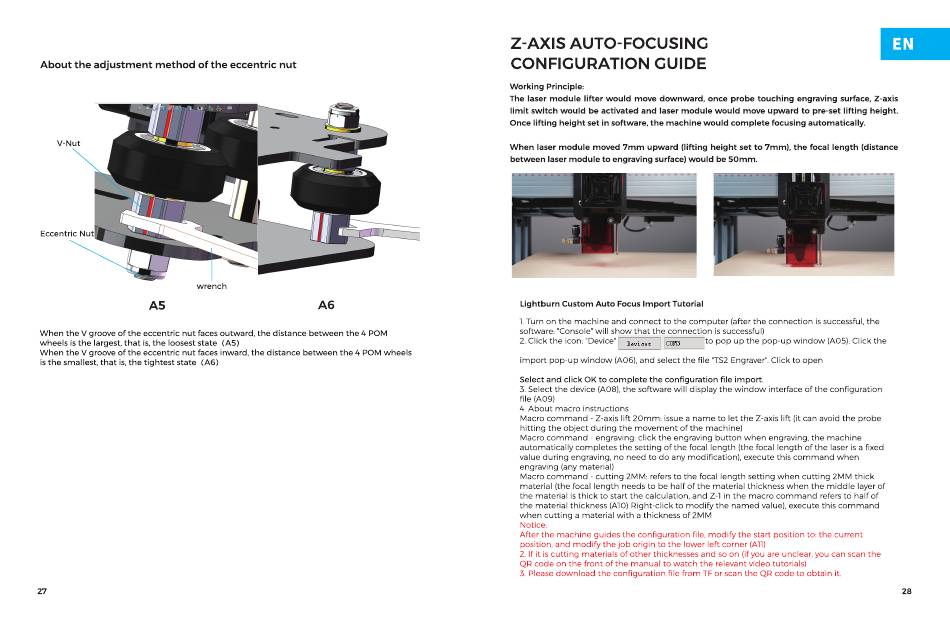

two trees TS2 Bedienungsanleitung Seite 16

About the adjustment method of the eccentric
V-Nut
Eccentric Nut
wrench
When the V groove of the eccentric nut faces outward,
wheels is the largest, that is, the loosest state
When the V groove of the eccentric nut faces inward,
is the smallest, that is, the tightest state (A6)
27
nut
the distance between the 4 POM
(A5)
the distance between the 4 POM wheels
Z-AXIS AUTO-FOCUSING
CONFIGURATION GUIDE
Working Principle:
The laser module lifter would move downward,
limit switch would be activated and laser module
Once lifting height set in software, the machine
When laser module moved 7mm upward (lifting
between laser module to engraving surface) would
Lightburn Custom Auto Focus Import Tutorial
I. Turn on the machine and connect to the computer
software: "Console' wil show that the connection
2. Click the icon: "Device' Devices
import pop up window (A06), and select the file "TS2 Engraver".
Select and click 0K to complete the configuration
3. Select the device (A08), the software will display
file (A09)
4. About macro instructions
Macro command - Z axis lift 20mm: issue a name to let the Z axis lift (it can avoid the probe
hitting the object during the movement of the machine)
Macro command - engraving: click the engraving
automatically completes the setting of the focal length (the focal length of the laser is a fixed
value during engraving, no need to do any modification),
engraving (any material)
Macro command - cutting 2MM: refers to the focal length setting when cutting
material (the focal ength needs to be half of the material
the material is thick to start the calculation,
the material thickness (AIO) Right click to modify the named value), execute this command
when cutting a material with a thickness of 2MM
Notice:
After the machine guides the configuration
position, and modify the job origin to the lower left corner (All)
2. If it is cutting materials of other thicknesses
QR code on the front of the manual to watch
3. Please download the configuration file from TF or scan the QR code to obtain it.
once probe touching engraving surface, Z-axis
would move upward to pre-set lifting height.
would complete focusing automatically.
height set to 7mm), the focal length (distance
be 50mm.
(after the connection is successful, the
is successfu )
to pop up the pop up window (A05). Click the
Click to open
file import.
the window interface of the configuration
button when engraving, the machine
execute this command when
2MM thick
thickness when the midd e ayer of
and Z-I in the macro command refers to half of
file, modify the start position to: the current
and so on (if you are unclear, you can scan the
the relevant video tutorials)
