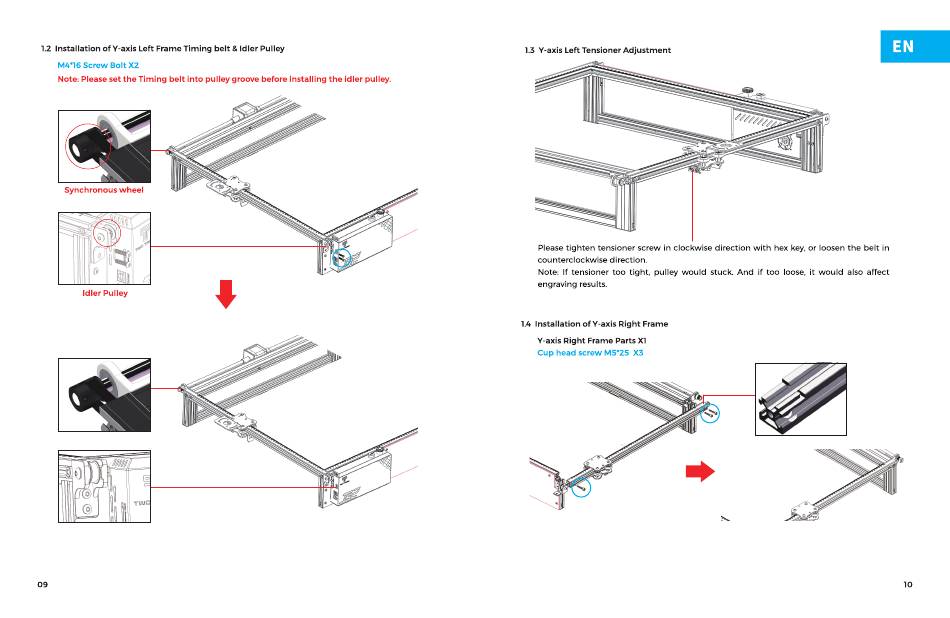

1.2 Installation
of Y-axis Left Frame Timing
belt & Idler Pulley
M4*16
Screw
Bolt
X2
Note: Please set the Timing
belt into pulley groove before installing
Synchronous
wheel
Idler
Pulley
09
the idler pulley.
1.3 Y-axis Left Tensioner Adjustment
Please tighten
tensioner
screw in clockwise
counterclockwise
direction.
Note: If tensioner
too tight,
pulley would
engraving
results.
1.4 Installation
of Y-axis Right Frame
Y-axis Right Frame Parts XI
Cup head screw M5*25 X3
direction
with
hex key, or loosen the belt in
stuck. And
if too loose, it would
also affect
10
