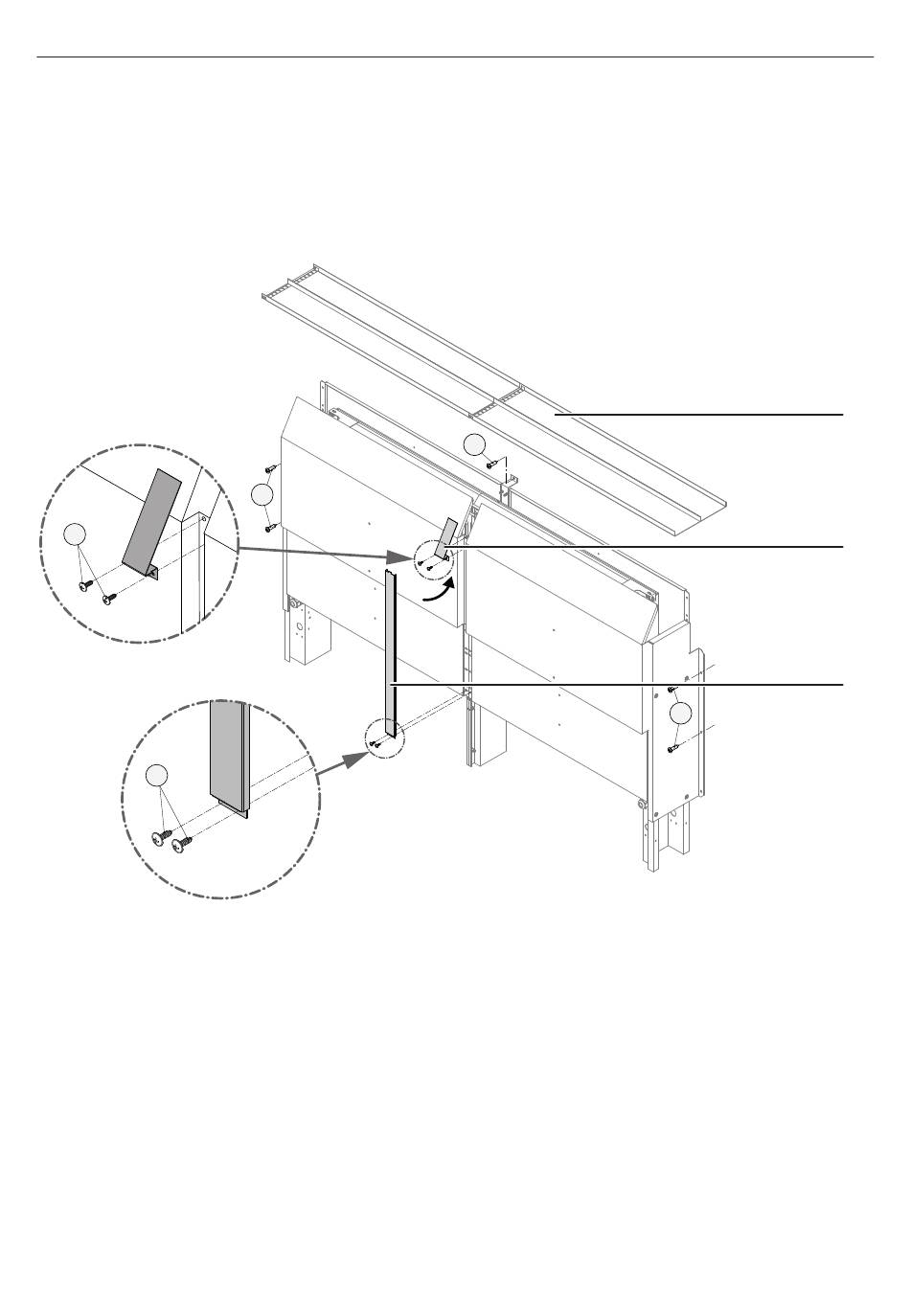

4. Now screw the front upper cover bracket using the 2 self-tapping screws (3) B 2.9 x 9.5. Then
push the cover rail with the strap from below into the opening of the angled cover. Hinge dow-
nwards and screw on with 2 self-tapping screws (3) B2.9 x 9.5.
5. It may be necessary to slightly release the lower socket screws so that the cover parts can be
mounted more easily.
3
3
A. Protective grille
B. Angled bracket
58
4
4
C. Cover rail
Installation
4
A
B
C
