EOS 46.U XL Montage- Und Gebrauchsanweisungen Seite 57

Installation

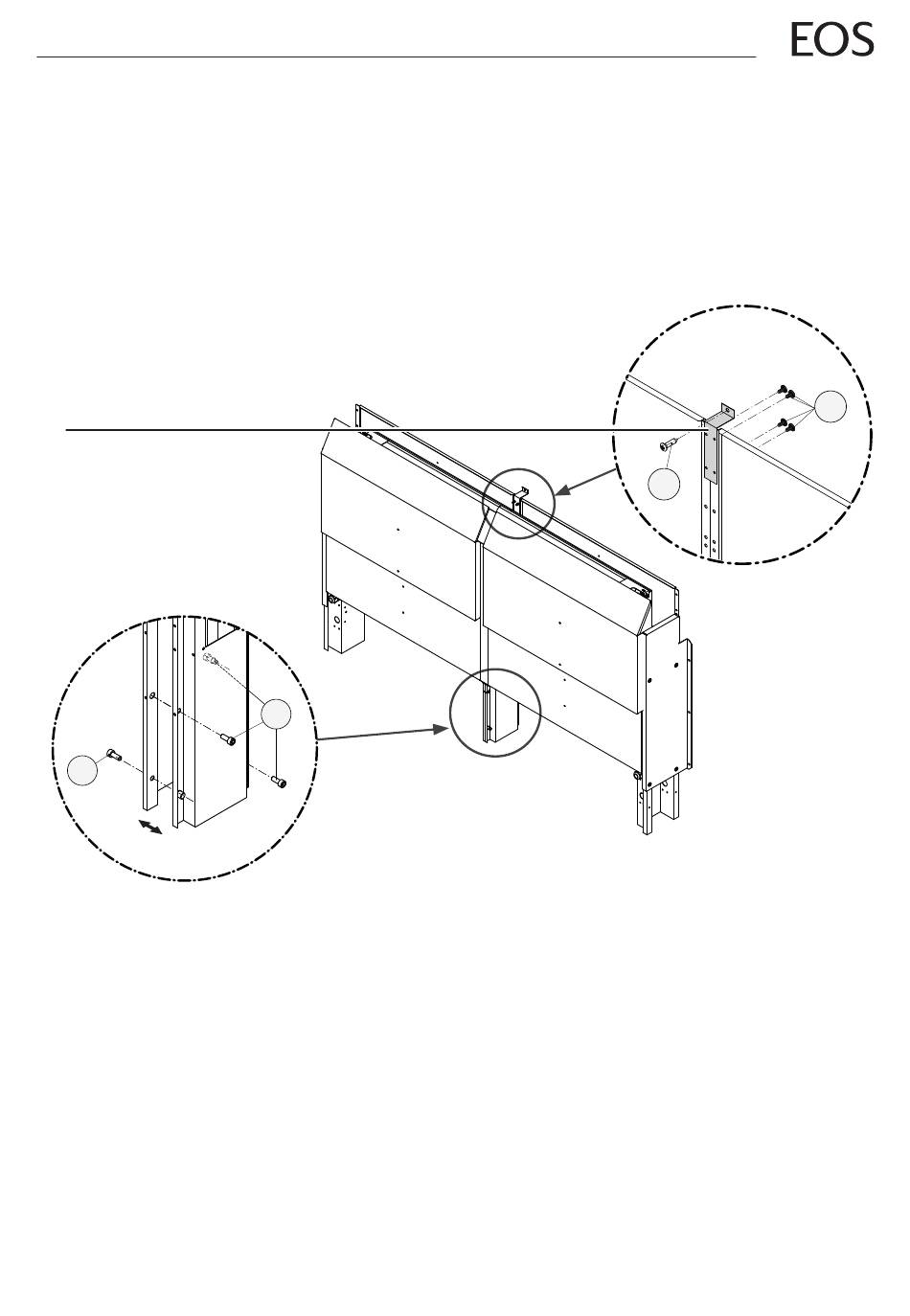

3. Now place both components together with the middle foot parts.
Screw the two parts into the nuts to the lower area with the 4 supplied socket screws (1) M
ƒ
6 x 20 as shown in detail Y.
In a further step, screw the enclosed securing bracket to the upper rear wall parts accor-
ƒ
ding to detail X with the supplied tapping screws (2) B 4.2 x 9.5.
A
Y
1
A. Mounting bracket for wall fastening
1
X
4
2
