5.4.

CONTINUITY TEST

Before attempting any resistance measurement, cut off power supply from
the circuit to be measured and make sure that all capacitors are discharged,
if present.
1. Switch on the instrument by pressing the ON/OFF key. The measuring mode
automatically selected and the indication
2. Press the V/ Ω / key until the symbol
3. Insert the red cable into input terminal V/Ω/
COM.
4. Position the test leads in the circuit to be measured (see Fig. 6). The continuity buzzer
activates for R<40
5. To use the AutoHOLD function, see § 4.3.2

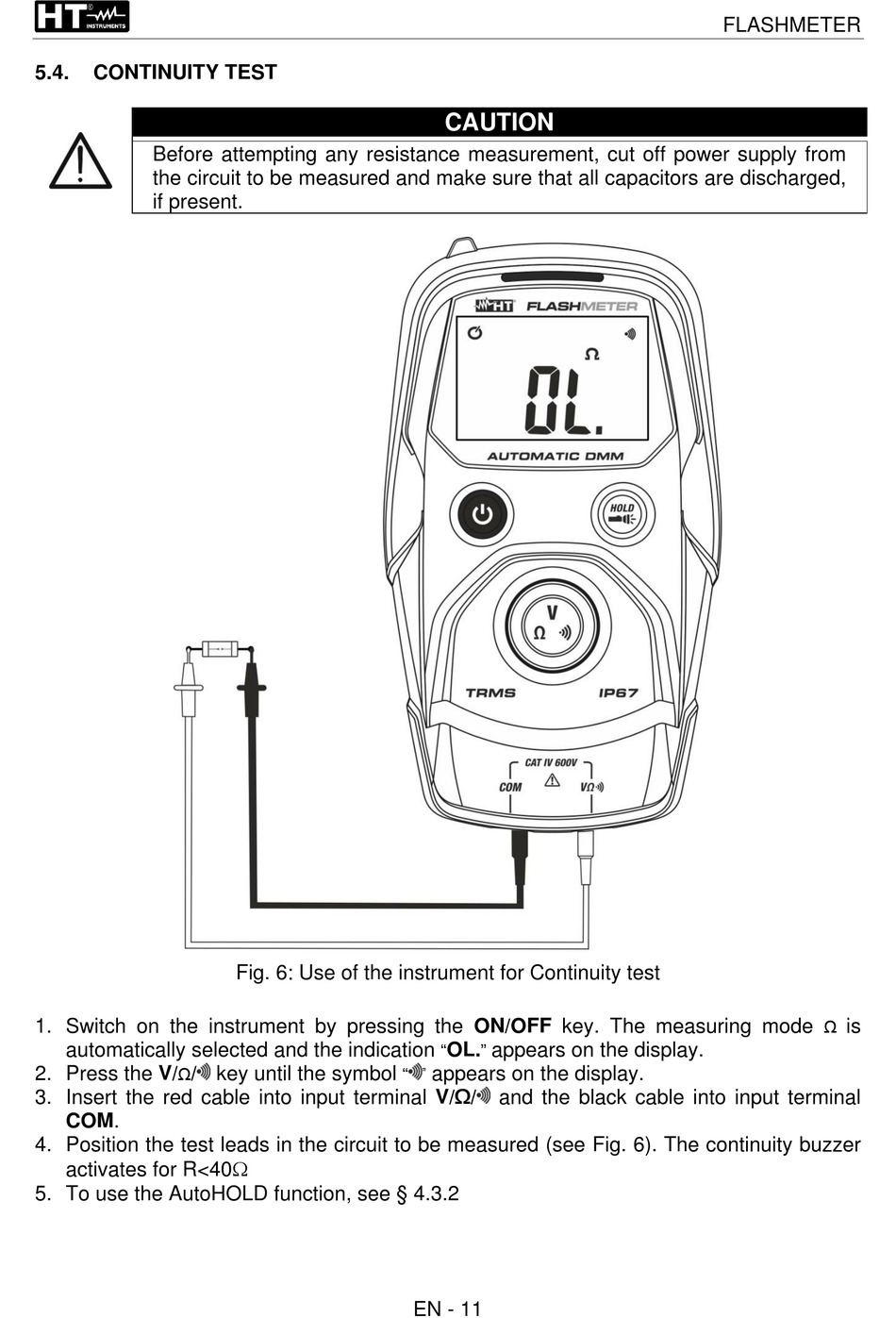

Fig. 6: Use of the instrument for Continuity test
" "
CAUTION
" "
OL. appears on the display.
appears on the display.
and the black cable into input terminal
EN - 11
FLASHMETER
Ω
is
