CONNECTION
PEDESTRIAN GATE
12 V AC

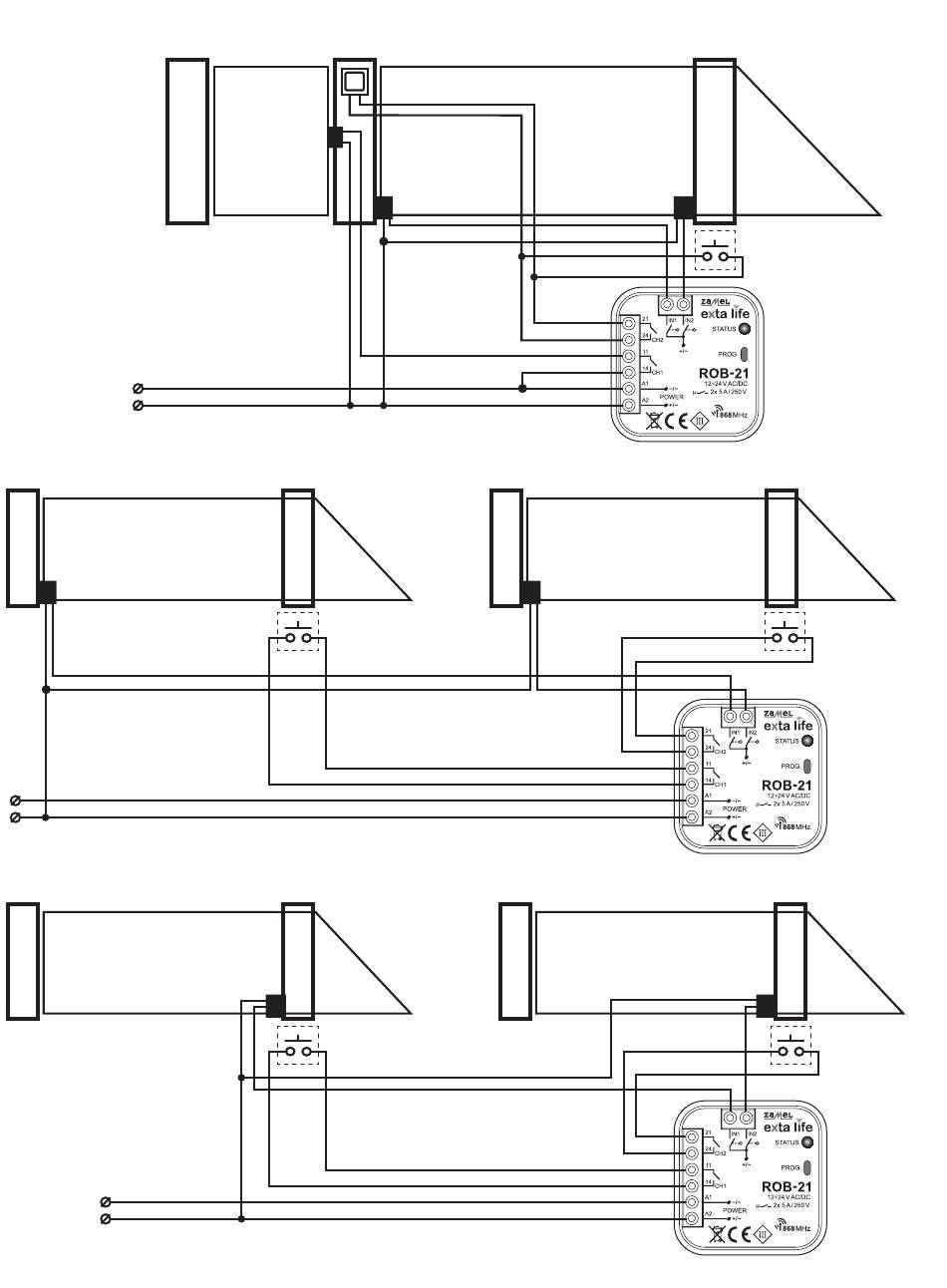

Controlling entrance gate (channel 2) and 12 V AC electric strike of the pedestrian gate (channel 1)
Limit switch
- gate 1 closed
12 V AC
Controlling two entrance gates (limit switches signalling closing)
GATE 1
Limit switch
- gate 1 opened
12 V AC
Controlling two entrance gates (limit switches signalling opening)
Button
Electric
strike
GATE 1
Local gate 1
control
Local gate 1
control
GATE
Limit switch
- gate closed
- gate opened
Limit switch
- gate 2 closed
GATE 2
Limit switch
Local gate
control
GATE 2
Limit switch
- gate 2 opened
Local gate 2
control
Local gate 2
control
