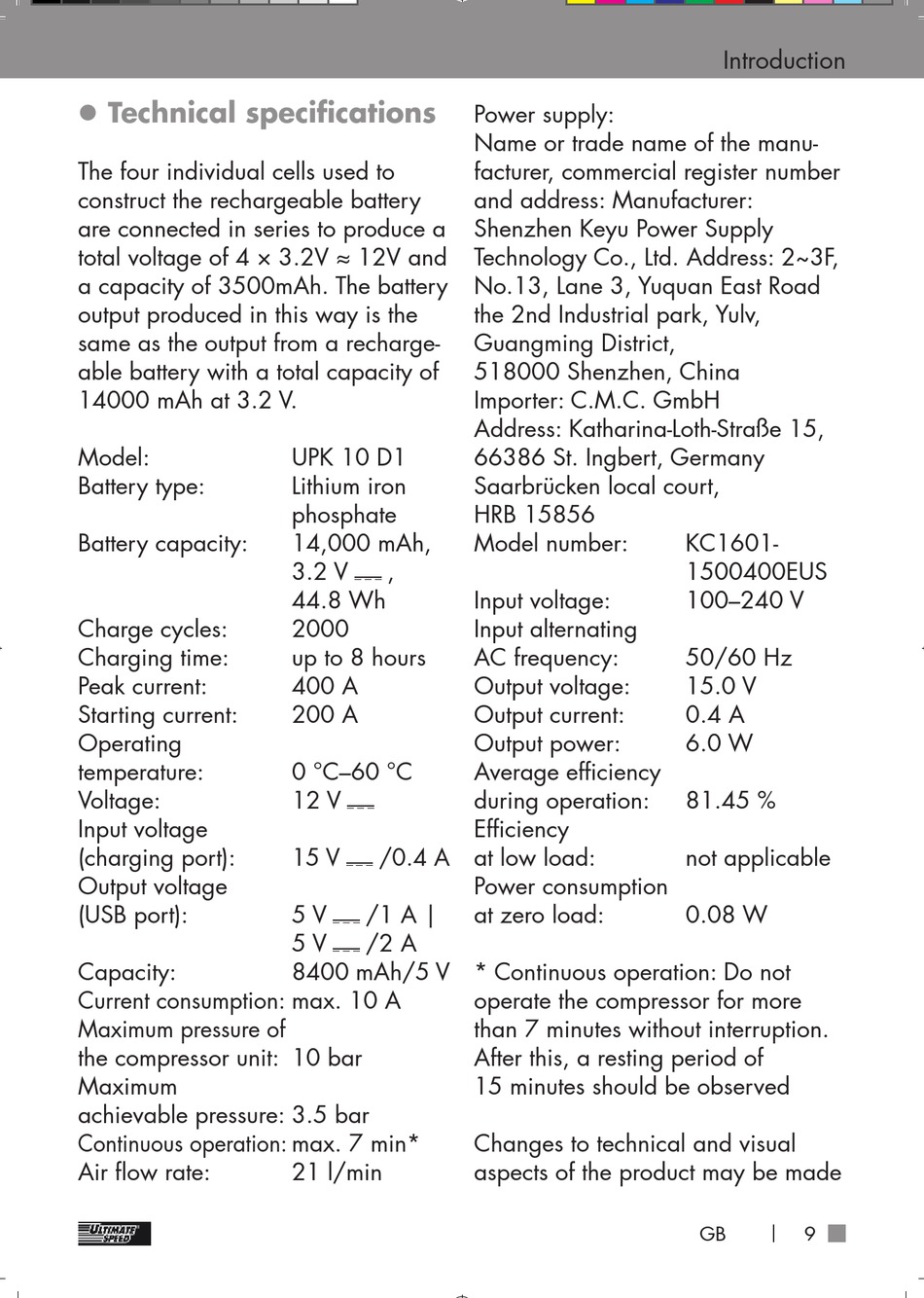

z Technical specifications
The four individual cells used to
construct the rechargeable battery
are connected in series to produce a
total voltage of 4 × 3.2V ≈ 12V and
a capacity of 3500mAh. The battery
output produced in this way is the
same as the output from a recharge-
able battery with a total capacity of
14000 mAh at 3.2 V.
Model:
Battery type:
Battery capacity:
Charge cycles:
Charging time:
Peak current:
Starting current:
Operating
temperature:
Voltage:
Input voltage
(charging port):
Output voltage
(USB port):
Capacity:
Current consumption: max. 10 A
Maximum pressure of
the compressor unit: 10 bar
Maximum
achievable pressure: 3.5 bar
Continuous operation: max. 7 min*
Air flow rate:
UPK 10 D1
Lithium iron
phosphate
14,000 mAh,
3.2 V ,
44.8 Wh
2000
up to 8 hours
400 A
200 A
0 °C–60 °C
12 V
15 V /0.4 A
5 V /1 A |
5 V /2 A
8400 mAh/5 V
21 l/min
Power supply:
Name or trade name of the manu-
facturer, commercial register number
and address: Manufacturer:
Shenzhen Keyu Power Supply
Technology Co., Ltd. Address: 2~3F,
No.13, Lane 3, Yuquan East Road
the 2nd Industrial park, Yulv,
Guangming District,
518000 Shenzhen, China
Importer: C.M.C. GmbH
Address: Katharina-Loth-Straße 15,
66386 St. Ingbert, Germany
Saarbrücken local court,
HRB 15856
Model number:
Input voltage:
Input alternating
AC frequency:
Output voltage:
Output current:
Output power:
Average efficiency
during operation:
Efficiency
at low load:
Power consumption
at zero load:
* Continuous operation: Do not
operate the compressor for more
than 7 minutes without interruption.
After this, a resting period of
15 minutes should be observed
Changes to technical and visual
aspects of the product may be made
Introduction
KC1601-
1500400EUS
100–240 V
50/60 Hz
15.0 V
0.4 A
6.0 W
81.45 %
not applicable
0.08 W
GB 9
