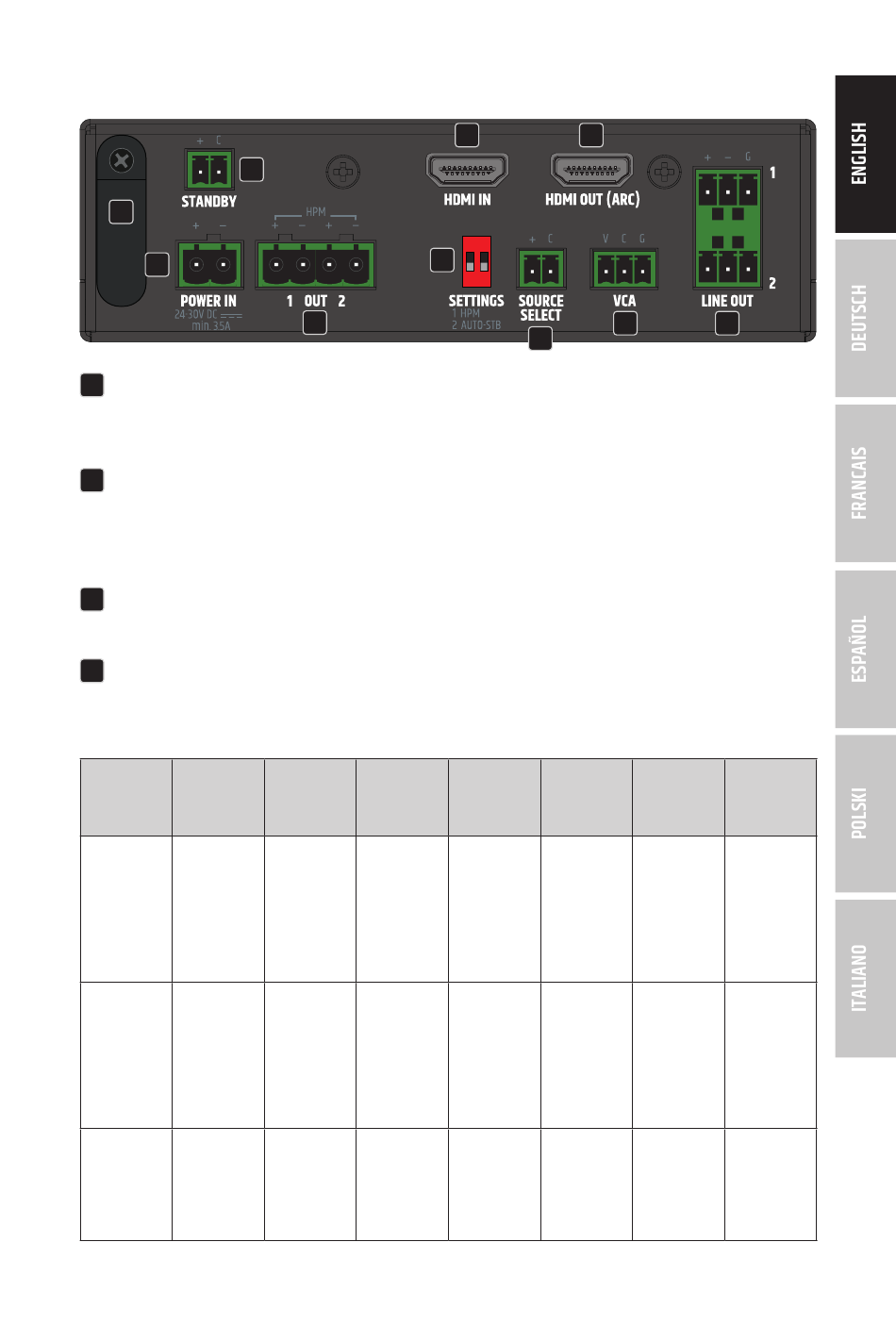

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
8
2
1
POWER IN
1
Terminal block connection for the device's power supply. To avoid damage to the device, please
use only the original power supply (power supply device included).
STRAIN RELIEF
2
Use the strain relief for the flexible cable of the external power supply to protect the device's
power terminal block connector and the power supply terminal block from damage and to
prevent the terminal block from being pulled out unintentionally.
HDMI IN
3
Digital audio / video input with a type A HDMI socket.
HDMI OUT (ARC)
4
Digital audio / video output with a type A HDMI socket and ARC function (Audio Return Channel).
HDMI IN AND HDMI OUT FUNCTIONALITY OVERVIEW
HDMI sources CEC source
connected detection
status
HDMI IN only Enabled
connected
HDMI OUT Enabled
(ARC) only
connected
Both HDMI Disabled
IN and HDMI
OUT (ARC)
connected
7
5
Default Action after
source triggering
selected on SOURCE
power up SELECT GPI
HDMI IN
X
HDMI OUT
(ARC)
X
Last selected Toggle between
HDMI source the HDMI
(Factory default sources
setting is HDMI
IN for the first
power up)
3 4
ON
1 2
9
10
Plug in Plug in
HDMI IN HDMI OUT
(ARC)
AMP205AV
doesn't switch
to HDMI OUT
(ARC). Users
X
must use SOUR-
CE SELECT GPI to
toggle between
sources
AMP205AV
doesn't switch
to HDMI IN.
Users must
X
use SOURCE
SELECT GPI to
toggle between
sources
X X
6
Unplug Unplug
HDMI IN HDMI OUT
(ARC)
X X
X X
AMP205AV AMP205AV
toggles to toggles to
HDMI OUT HDMI IN
(ARC)
