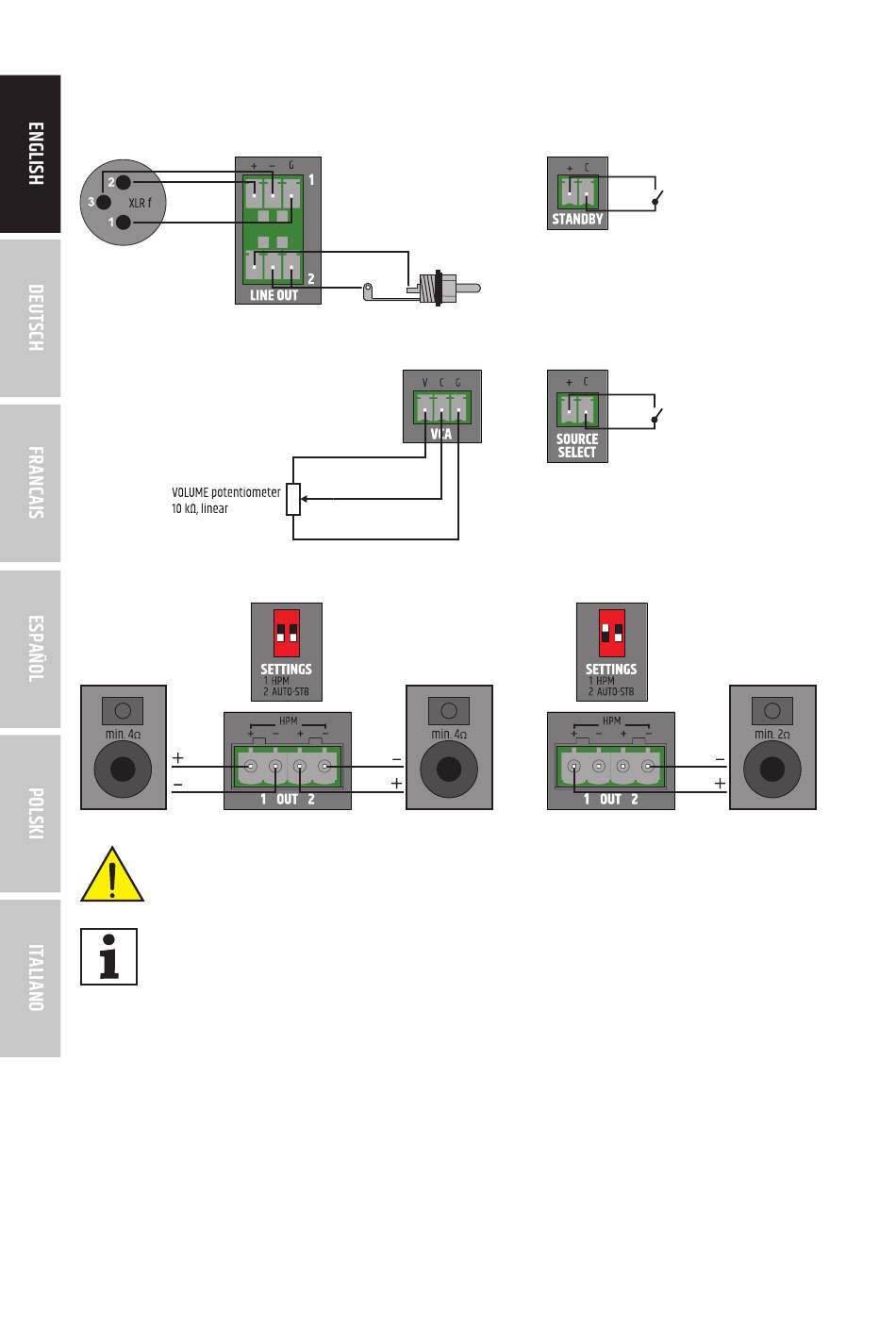

TERMINAL BLOCK CONNECTIONS
Connections LINE OUT 1 / 2
balanced
Connections VCA
Connections OUT 1 / 2 / HPM
ATTENTION: When wiring terminal blocks, please note the correct assignment of the
poles/terminals. The manufacturer accepts no liability for damage caused by faulty
wiring!
Tip: Preferably use balanced audio cables for wiring analogue line inputs and outputs.
12
unbalanced
5 V
volume
ground
ON
1 2
Connections STANDBY
momentary
switch
Connections SOURCE SELECT
momentary
switch
ON
1 2
