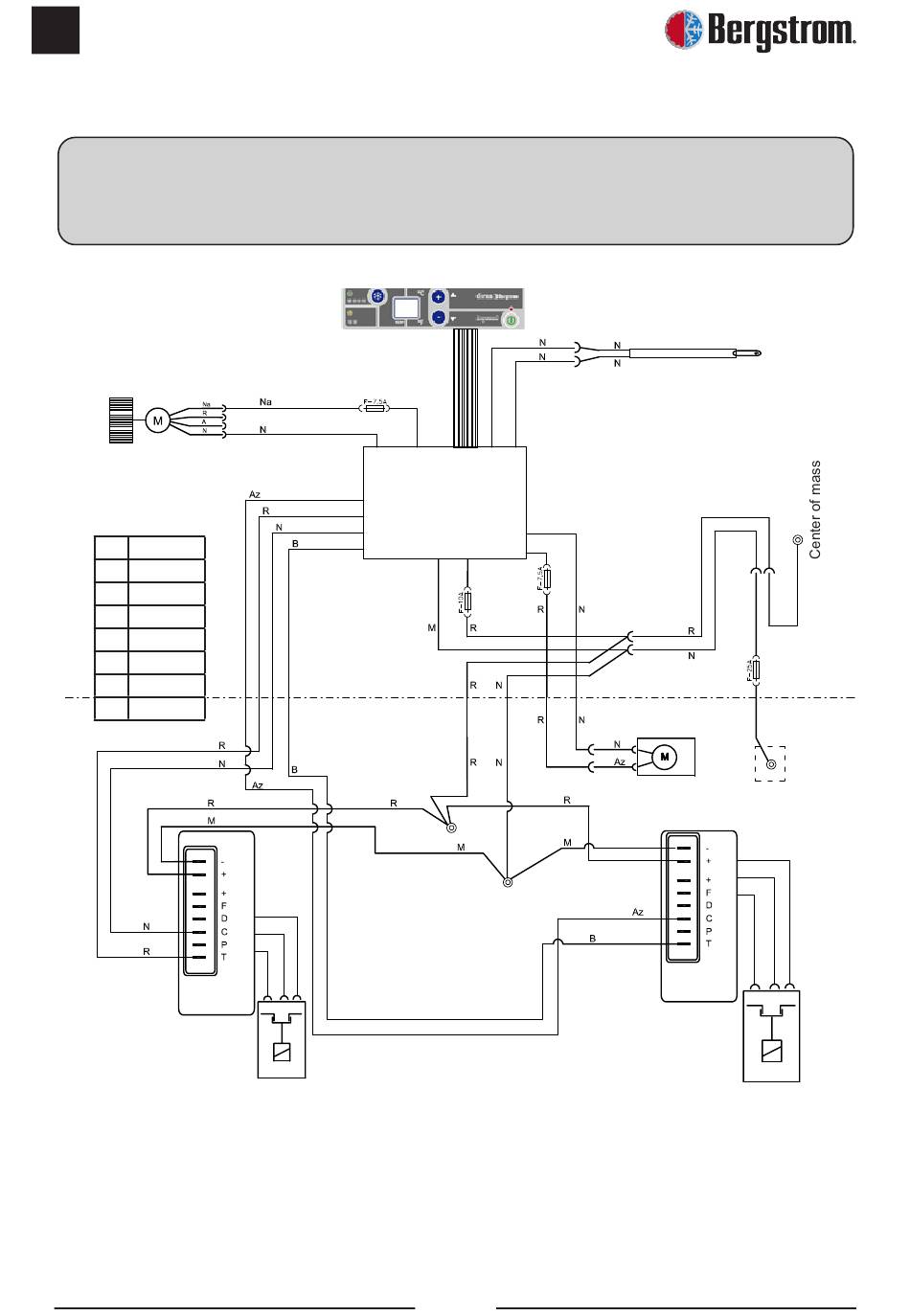

VEHICLES WITHOUT ORIGINAL POWER SUPPLY CABLING - Electrical layout
Take care not to invert polarities when connecting the unit. If this happens, the plate does not come
on and the unit does not work.
Centrifugal
blower
2,6 Amp.
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Compressor
electronic
module
IMPORTANT WARNING!
Electronic
control
Compressor
Comsuption 30 mAmp.
Compressor
electronic
module
14
Return air
sensor
NTC 15KΩ a 25º
Condenser
fan
2,9 Amp.
Taking
PWM.
positive
front
Compressor
