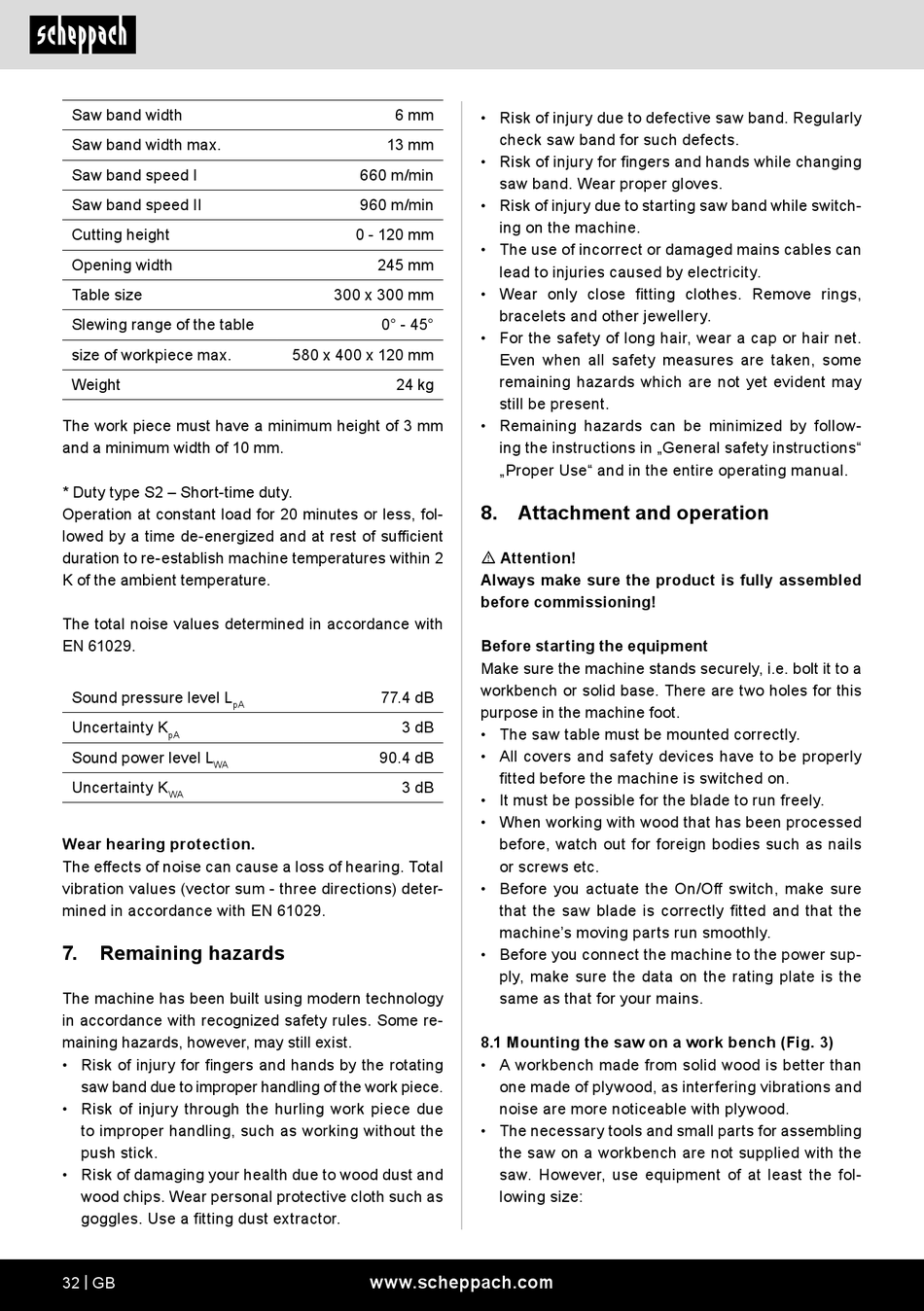

Scheppach HBS261 Originalbetriebsanleitung Seite 32

Saw band width
Saw band width max.
Saw band speed I
Saw band speed II
Cutting height
Opening width
Table size
Slewing range of the table
size of workpiece max.
Weight
The work piece must have a minimum height of 3 mm
and a minimum width of 10 mm.
* Duty type S2 – Short-time duty.
Operation at constant load for 20 minutes or less, fol-
lowed by a time de-energized and at rest of sufficient
duration to re-establish machine temperatures within 2
K of the ambient temperature.
The total noise values determined in accordance with
EN 61029.
Sound pressure level L
pA
Uncertainty K
pA
Sound power level L
WA
Uncertainty K
WA
Wear hearing protection.
The effects of noise can cause a loss of hearing. Total
vibration values (vector sum - three directions) deter-
mined in accordance with EN 61029.
7. Remaining hazards
The machine has been built using modern technology
in accordance with recognized safety rules. Some re-
maining hazards, however, may still exist.
• Risk of injury for fingers and hands by the rotating
saw band due to improper handling of the work piece.
• Risk of injury through the hurling work piece due
to improper handling, such as working without the
push stick.
• Risk of damaging your health due to wood dust and
wood chips. Wear personal protective cloth such as
goggles. Use a fitting dust extractor.
32 | GB
6 mm
13 mm
660 m/min
960 m/min
0 - 120 mm
245 mm
300 x 300 mm
0° - 45°
580 x 400 x 120 mm
24 kg
77.4 dB
3 dB
90.4 dB
3 dB
www.scheppach.com
• Risk of injury due to defective saw band. Regularly
check saw band for such defects.
• Risk of injury for fingers and hands while changing
saw band. Wear proper gloves.
• Risk of injury due to starting saw band while switch-
ing on the machine.
• The use of incorrect or damaged mains cables can
lead to injuries caused by electricity.
• Wear only close fitting clothes. Remove rings,
bracelets and other jewellery.
• For the safety of long hair, wear a cap or hair net.
Even when all safety measures are taken, some
remaining hazards which are not yet evident may
still be present.
• Remaining hazards can be minimized by follow-
ing the instructions in „General safety instructions"
„Proper Use" and in the entire operating manual.
8. Attachment and operation
m Attention!
Always make sure the product is fully assembled
before commissioning!
Before starting the equipment
Make sure the machine stands securely, i.e. bolt it to a
workbench or solid base. There are two holes for this
purpose in the machine foot.
• The saw table must be mounted correctly.
• All covers and safety devices have to be properly
fitted before the machine is switched on.
• It must be possible for the blade to run freely.
• When working with wood that has been processed
before, watch out for foreign bodies such as nails
or screws etc.
• Before you actuate the On/Off switch, make sure
that the saw blade is correctly fitted and that the
machine's moving parts run smoothly.
• Before you connect the machine to the power sup-
ply, make sure the data on the rating plate is the
same as that for your mains.
8.1 Mounting the saw on a work bench (Fig. 3)
• A workbench made from solid wood is better than
one made of plywood, as interfering vibrations and
noise are more noticeable with plywood.
• The necessary tools and small parts for assembling
the saw on a workbench are not supplied with the
saw. However, use equipment of at least the fol-
lowing size:
