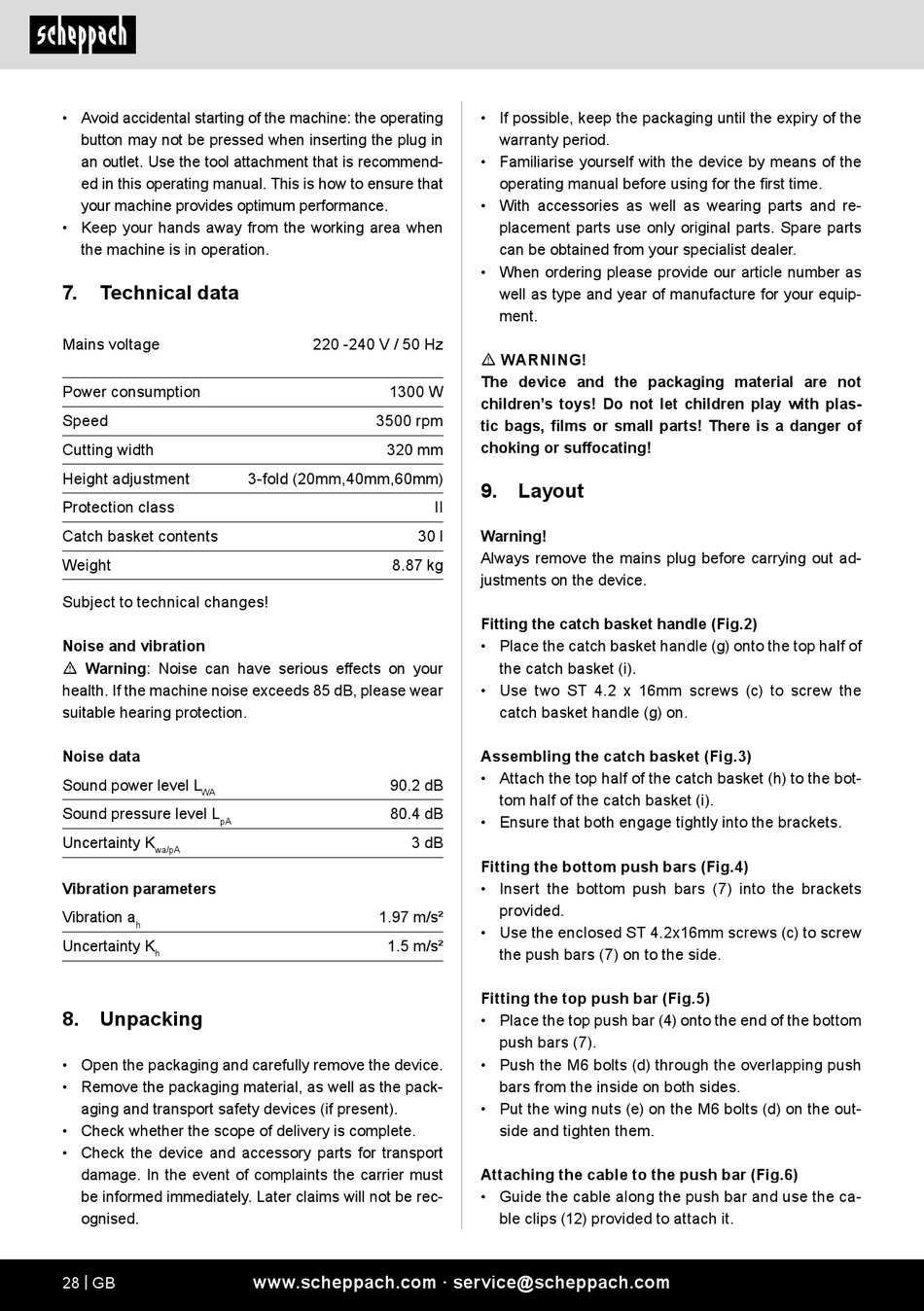

Scheppach E-MP320 Originalbetriebsanleitung Seite 28

• Avoid accidental starting of the machine: the operating
button may not be pressed when inserting the plug in
an outlet. Use the tool attachment that is recommend-
ed in this operating manual. This is how to ensure that
your machine provides optimum performance.
• Keep your hands away from the working area when
the machine is in operation.
7. Technical data
Mains voltage
Power consumption
Speed
Cutting width
Height adjustment
Protection class
Catch basket contents
Weight
Subject to technical changes!
Noise and vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB, please wear
suitable hearing protection.
Noise data
Sound power level L
WA
Sound pressure level L
pA
Uncertainty K
wa/pA
Vibration parameters
Vibration a
h
Uncertainty K
h
8. Unpacking
• Open the packaging and carefully remove the device.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be rec-
ognised.
28 | GB
220 -240 V / 50 Hz
1300 W
3500 rpm
320 mm
3-fold (20mm,40mm,60mm)
30 l
8.87 kg
90.2 dB
80.4 dB
3 dB
1.97 m/s²
1.5 m/s²
www.scheppach.com · service@scheppach.com
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the device by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for your equip-
ment.
m WARNING!
The device and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9. Layout
II
Warning!
Always remove the mains plug before carrying out ad-
justments on the device.
Fitting the catch basket handle (Fig.2)
• Place the catch basket handle (g) onto the top half of
the catch basket (i).
• Use two ST 4.2 x 16mm screws (c) to screw the
catch basket handle (g) on.
Assembling the catch basket (Fig.3)
• Attach the top half of the catch basket (h) to the bot-
tom half of the catch basket (i).
• Ensure that both engage tightly into the brackets.
Fitting the bottom push bars (Fig.4)
• Insert the bottom push bars (7) into the brackets
provided.
• Use the enclosed ST 4.2x16mm screws (c) to screw
the push bars (7) on to the side.
Fitting the top push bar (Fig.5)
• Place the top push bar (4) onto the end of the bottom
push bars (7).
• Push the M6 bolts (d) through the overlapping push
bars from the inside on both sides.
• Put the wing nuts (e) on the M6 bolts (d) on the out-
side and tighten them.
Attaching the cable to the push bar (Fig.6)
• Guide the cable along the push bar and use the ca-
ble clips (12) provided to attach it.
