English

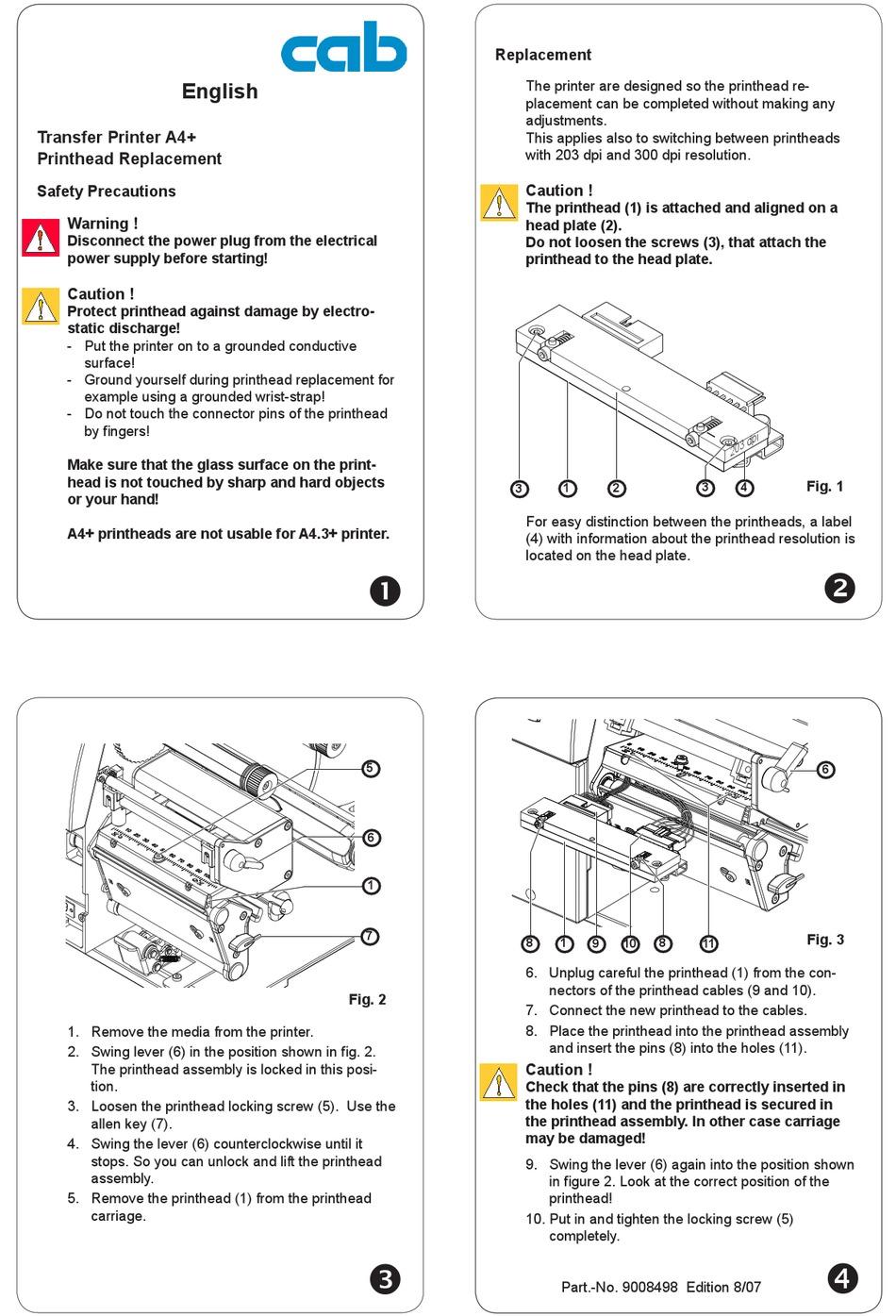

Transfer Printer A4+
Printhead Replacement
Safety Precautions
Warning !
Disconnect the power plug from the electrical
power supply before starting!
Caution !
Protect printhead against damage by electro-
static discharge!
- Put the printer on to a grounded conductive
surface!
- Ground yourself during printhead replacement for
example using a grounded wrist-strap!
- Do not touch the connector pins of the printhead
by fingers!
Make sure that the glass surface on the print-
head is not touched by sharp and hard objects
or your hand!
A4+ printheads are not usable for A4.3+ printer.
1. Remove the media from the printer.
2. Swing lever (6) in the position shown in fig. 2.
The printhead assembly is locked in this posi-
tion.
3. Loosen the printhead locking screw (5). Use the
allen key (7).
4. Swing the lever (6) counterclockwise until it
stops. So you can unlock and lift the printhead
assembly.
5. Remove the printhead (1) from the printhead
carriage.
Replacement
3

5
6
1
7
Fig. 2

The printer are designed so the printhead re-
placement can be completed without making any
adjustments.
This applies also to switching between printheads
with 203 dpi and 300 dpi resolution.
Caution !
The printhead (1) is attached and aligned on a
head plate (2).
Do not loosen the screws (3), that attach the
printhead to the head plate.
2
1
For easy distinction between the printheads, a label
(4) with information about the printhead resolution is
located on the head plate.
8 1 8
9 10
6.
Unplug careful the printhead (1) from the con-
nectors of the printhead cables (9 and 10).
7. Connect the new printhead to the cables.
8.
Place the printhead into the printhead assembly
and insert the pins (8) into the holes (11).
Caution !
Check that the pins (8) are correctly inserted in
the holes (11) and the printhead is secured in
the printhead assembly. In other case carriage
may be damaged!
9. Swing the lever (6) again into the position shown
in figure 2. Look at the correct position of the
printhead!
10. Put in and tighten the locking screw (5)
completely.
Part.-No. 9008498 Edition 8/07
d p i
2 0 3
Fig. 1
3 4

6
Fig. 3
11

