Futurelight DMX SPLIT 6 Bedienungsanleitung Seite 18

Cable connection
Notes
• For connection, use special DMX cables for high data flow.
• Always connect one DMX output to the DMX input of the next unit until all units are connected, to form a DMX
chain. Connect a 120 Ω terminating plug to the DMX output of the last DMX unit in the chain.
Pairing the transmitter and receiver
1 Power on the transmitter and receiver.
Parallel operation: To set up a universe, unlink all devices from previous links. Then only switch on the
receivers that you have designated for this universe. Leave all other receivers switched off temporarily.
2 Shortly press FUNCTION on the transmitter.
The LINK LED on the receiver flashes quickly until the wireless connection is established. Once connected
and DMX signals are being received, the LINK and DMX LEDs light permanently.
The assignment of the receiver to the transmitter is kept memorized even after switching off.
You can assign additional receivers to the transmitter at any time, even during operation. In an operational
system, assigning an additional receiver will make the connected units revert to idle mode for 10 seconds;
they will be reactivated once the new units are connected.
Disconnecting a receiver from the transmitter
Press LINK on the receiver or transmitter for about three seconds.
The LINK and DMX LEDs go off and the receiver is unlinked.
Disconnecting all receivers from the transmitter
Press FUNCTION on the transmitter for about five seconds until the LINK LED starts flashing.
All registered receivers linked to that transmitter will be unlinked. The LINK and DMX LEDs go off on the
receivers.
OPERATION
18 • EN

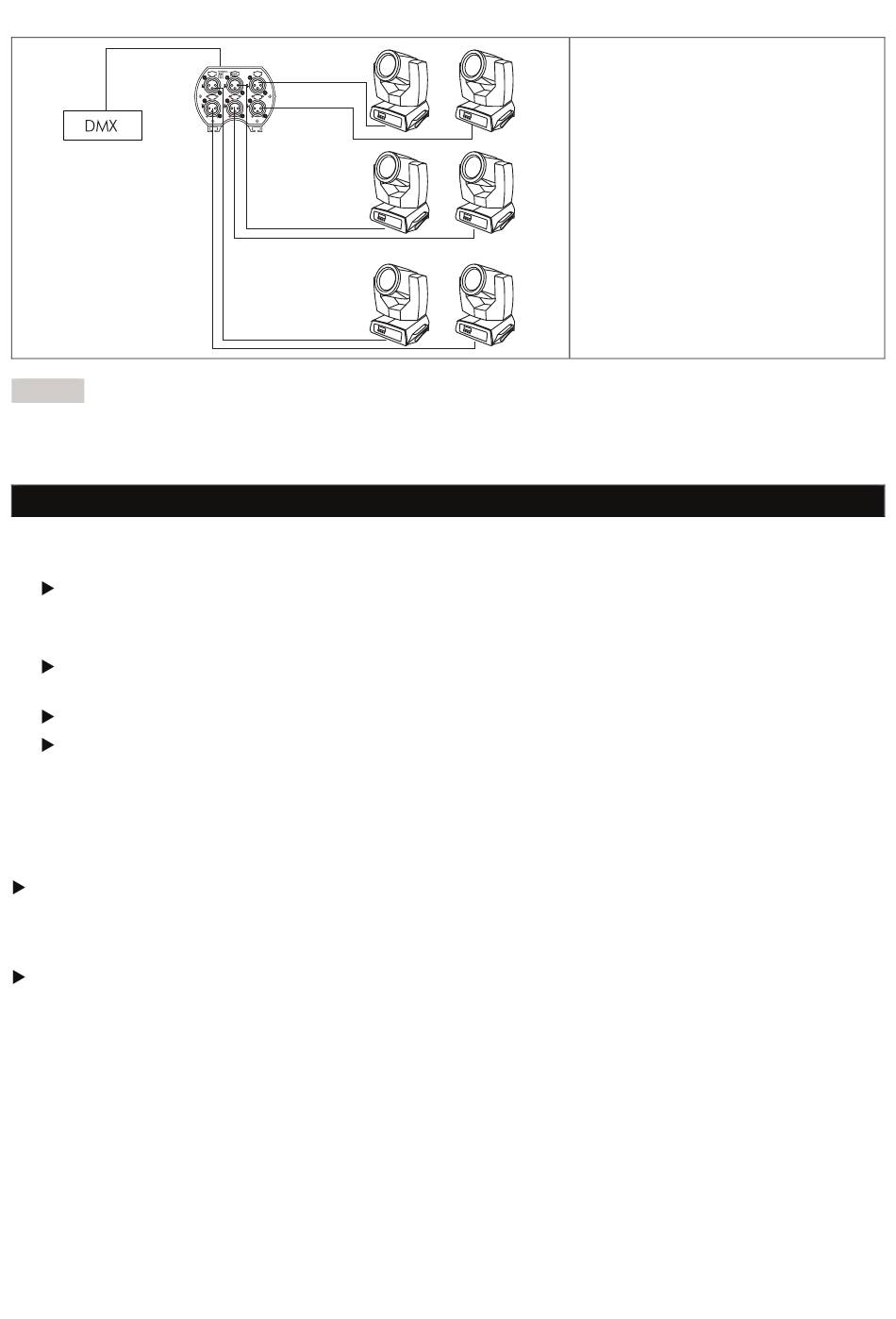

Feed the DMX control signal to the
DMX IN jack. Each of the unit's DMX
outputs 1 to 6 allows connection of
one DMX chain, which in turn may
consist of a maximum of 100 DMX
devices. You can
additional DMX SPLIT 6 or DMX
chain to the DMX feed-through
output DMX THRU.
connect an
