Futurelight DMX SPLIT 6 Bedienungsanleitung Seite 15

2
3
5
No. Element
1 Antenna
2 Status indicators
3 LINK button
4 Signal strength indication
5 DMX outputs 1-6
6 DMX IN/THRU jacks
7 Fuse holder
8 Power input
9 M10 threaded insert

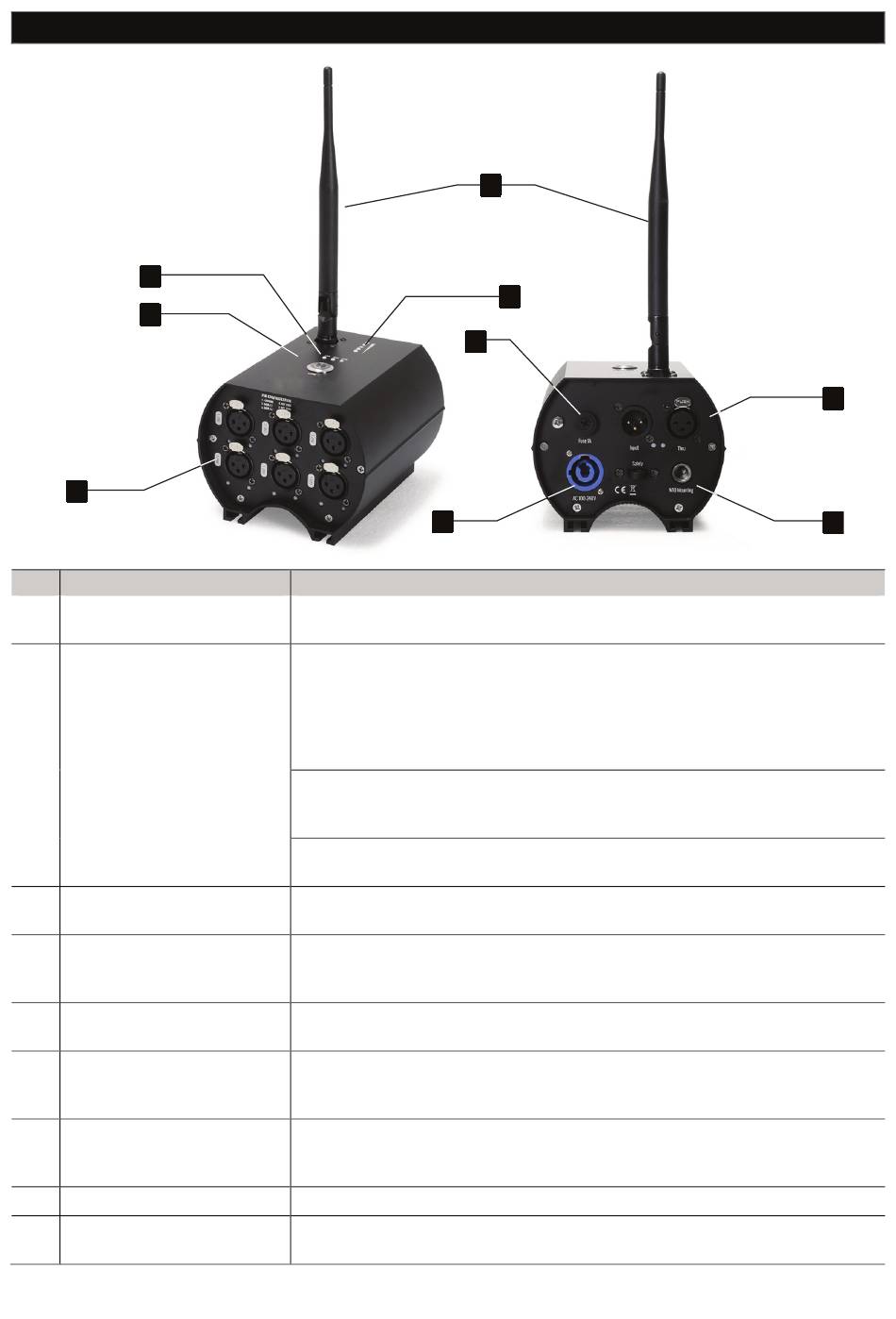

OPERATING ELEMENTS AND CONNECTIONS
Function
Screw on the antenna provided to the antenna input and put it in a vertical
position.
LINK
• Fast flashing: The device tries to set up a transmission path to a transmitter
• Slow flashing: Transmission path active, no DMX signal present
• Lights permanently: Transmission path active, DMX signals are being
received
• Off: Transmission path not active
DMX
• Lights permanently: DMX signals are being received
• Off: no DMX signal
ON
Lights permanently when the device is turned on.
Press this button for approx. five seconds to unpair from a transmitter (LINK
LED goes off).
The top four green LEDs show the signal strength (top LED: 80%, third LED:
60%, second LED: 40%, first LED: 20%). The bottom LED lights up red when
the transmission path is not active.
3-pin XLR female sockets with status indicators, used to send DMX data. PWR
(red) = port is powered, SIG (green) = DMX signal is present.
DMX IN: DMX input for connecting the DMX control signal; DMX THRU: direct
DMX output for connecting additional DMX devices or DMX splitters within the
same DMX chain as the DMX input.
Only replace the fuse when the device is disconnected from mains. Only use
fuses of the same rating and power. The correct value is specified on the
device.
Used to plug the supplied power cord in.
For mounting a truss clamp. The eyelet next to it is used to attach a safety
bond.
1
4
7
8
15 • EN
