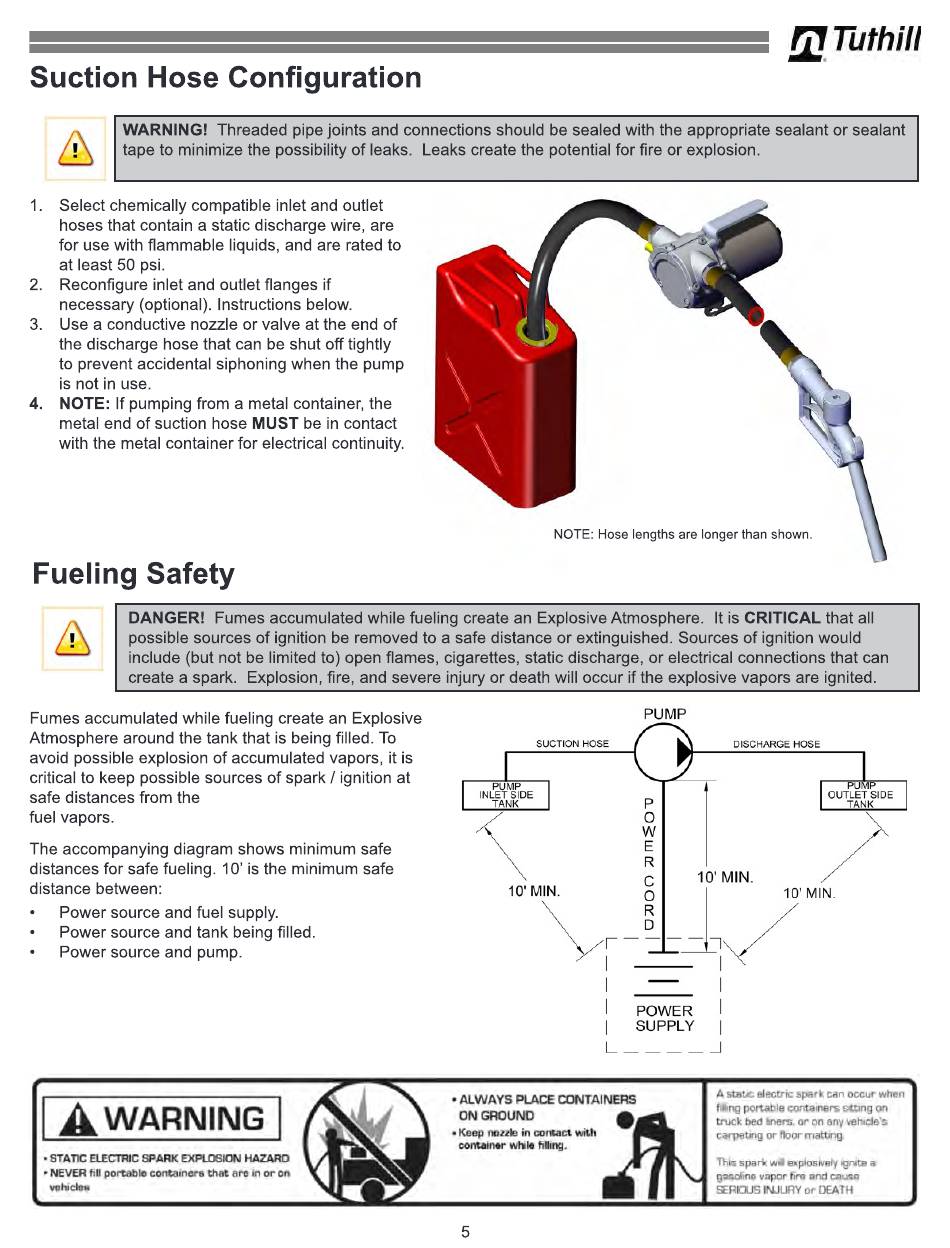

Suction Hose Configuration
WARNING!
tape to minimize the possibility of leaks. Leaks create the potential for fire or explosion.
1 Select chemically compatible
hoses that contain a static discharge wire, are
for use with flammable liquids, and are rated to
at least 50 psi.
2. Reconfigure inlet and outlet flanges if
necessary (optional). Instructions below.
3. Use a conductive nozzle
the discharge hose that can be shut off tightly
to prevent accidental siphoning when the pump
is not in use.
4. NOTE: If pumping from a metal container, the
metal end of suction
with the metal container for electrical continuity.
Fueling Safety
DANGER!
possible sources of ignition be removed to a safe distance or extinguished.
include (but not be limited to) open flames, cigarettes, static discharge, or electrical connections
create a spark.
Fumes accumulated while fueling create an Explosive
Atmosphere around the tank that is being filled. To
avoid possible explosion of accumulated
critical to keep possible sources of spark / ignition at
safe distances from the
fuel vapors.
The accompanying diagram shows minimum safe
distances for safe fueling. 10' is the minimum safe
distance between:
Power source and fuel supply.
Power source and tank being filled
Power source and pump.
