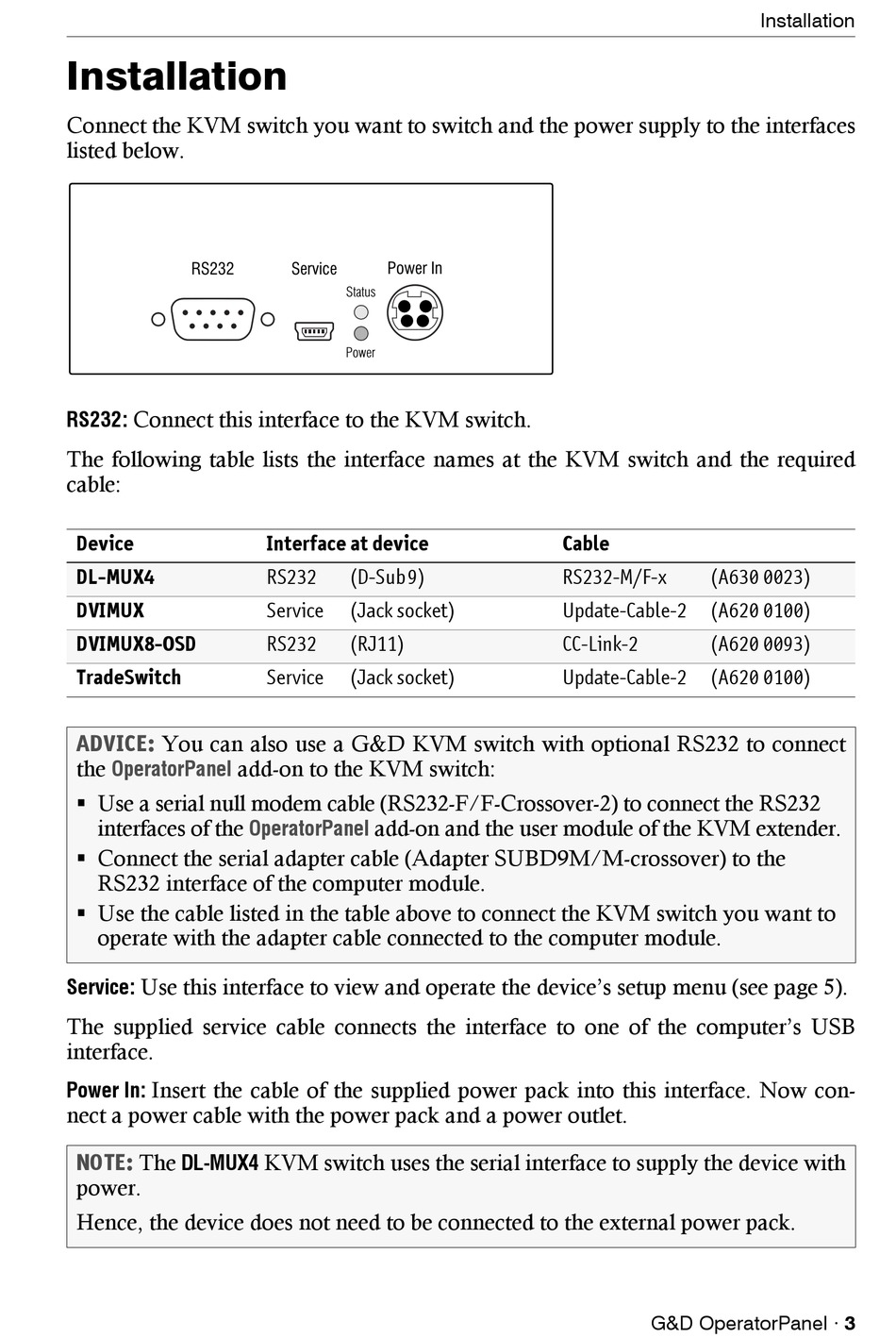

Installation

Connect the KVM switch you want to switch and the power supply to the interfaces
listed below.
RS232: Connect this interface to the KVM switch.
The following table lists the interface names at the KVM switch and the required
cable:
Device
DL-MUX4
DVIMUX
DVIMUX8-OSD
TradeSwitch
ADVICE: You can also use a G&D KVM switch with optional RS232 to connect
the OperatorPanel
 Use a serial null modem cable (RS232-F/F-Crossover-2) to connect the RS232
interfaces of the
 Connect the serial adapter cable (Adapter SUBD9M/M-crossover) to the
RS232 interface of the computer module.
 Use the cable listed in the table above to connect the KVM switch you want to
operate with the adapter cable connected to the computer module.
Use this interface to view and operate the device's setup menu (see page 5).
Service:
The supplied service cable connects the interface to one of the computer's USB
interface.
Insert the cable of the supplied power pack into this interface. Now con-
Power In:
nect a power cable with the power pack and a power outlet.
NOTE:
The DL-MUX4
power.
Hence, the device does not need to be connected to the external power pack.

Interface at device
RS232 (D-Sub 9)
Service (Jack socket)
RS232 (RJ11)
Service (Jack socket)
add-on to the KVM switch:
OperatorPanel add-on and the user module of the KVM extender.
KVM switch uses the serial interface to supply the device with
Cable
RS232-M/F-x (A630 0023)
Update-Cable-2 (A620 0100)
CC-Link-2 (A620 0093)
Update-Cable-2 (A620 0100)
G&D OperatorPanel · 3
