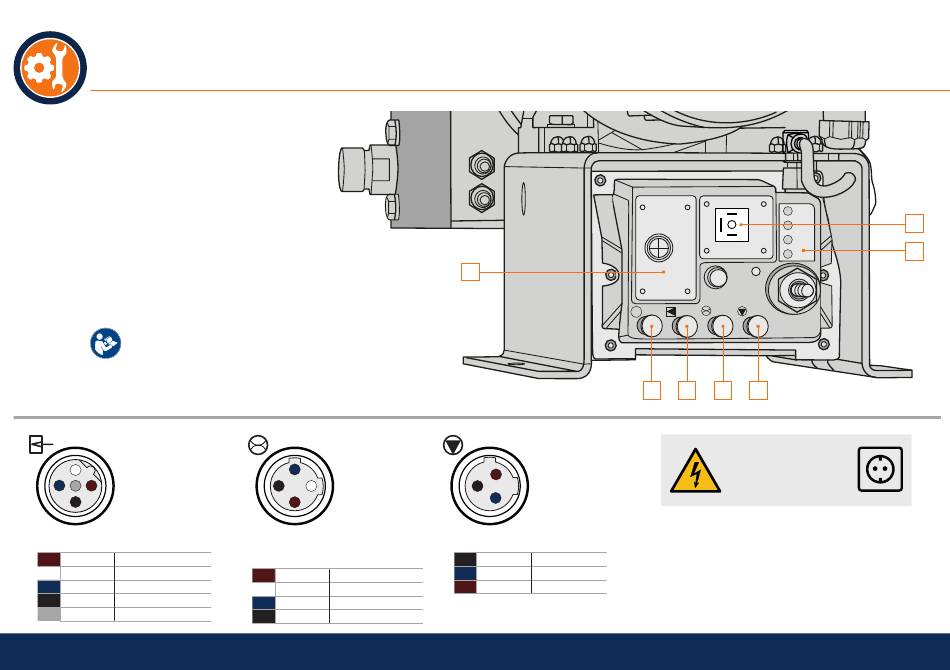

Electrical installation
1 Relay and mA-output (optional)
2 Slot for optional modules
(PROFIBUS option ...)
®
3 No function
4 "External control" socket
5 "Hose rupture" (optional) socket
6 "Level switch" socket
7 LEDs and status LED
CANbus (external)
Refer to the operating instructions for more
detailed information on additional accesso-
ries on sockets or the relay.
www.prominent.com
2
3 1
5
4
External control
1 brown Pause
2 white Coding
3
blue mA input
4 black GND
5 grey Auxiliary
EN 10
3
4 2
1
Hose rupture
indicator
1 brown Voltage (5 V)
2 white not assigned
3 blue Sensor signal
4 black GND
2
3
1
2
Level switch
1 black GND
2 blue Pre-warning
3
brown Shutdown
2
4
1
3 4 5 6
100 – 230 V ±10%
50/60 Hz
1
7
