Brief Instructions

Quadrocopter „Shadow 2.0" RTF
Item No. 1400004
You can download the complete product instructions via the link www.conrad.com/downloads. Fol-
low the instructions on the website.

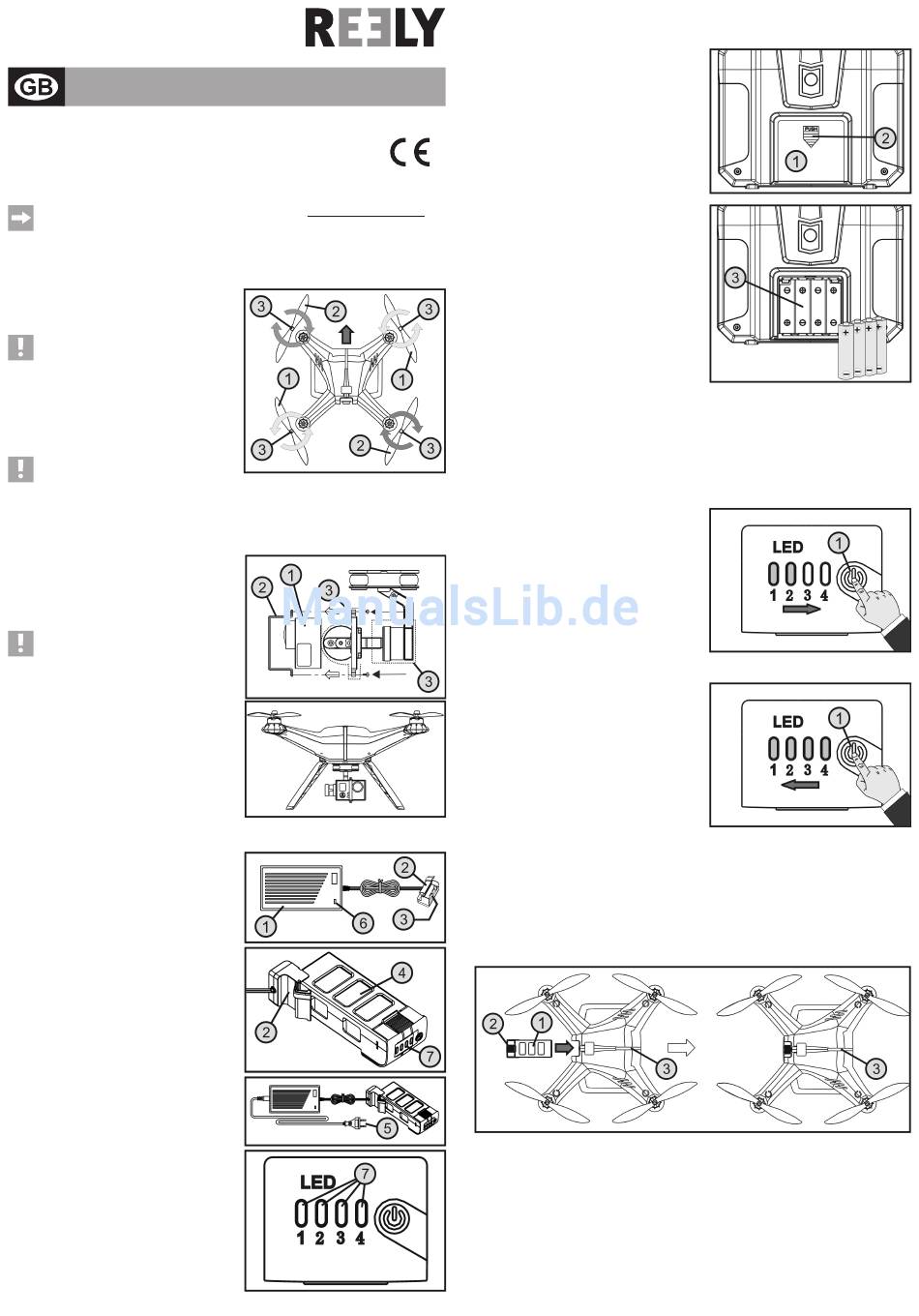

Preparation of the Quadrocopter
Mounting the Propellers
The quadrocopter comes with 1 pair of left-turning
propellers (1) and 1 pair of right-turning propellers (2)
each.
Important!
Observe the rotating direction of the propellers
at installation. The propellers at the front left
and the rear right turn clockwise when viewed
from above; the propellers on the front right
and rear left turn counter-clockwise.
The arrow in the upper half of the picture shows the
flight direction of the model forwards.
The propellers have glued-in attachment nuts
(see figure 1, item 3), which tighten themselves
when the quadrocopter is in operation.
To attach the propellers, place the respective propellers on the threads of the motor shafts and
manually turn the propellers contrary to the regular operating rotating direction. Hold the bell of the
brushless motor with the other hand.
Stabilised Camera Holder (2 D-Gimbal)
To install a camera of type GoPro or other correspon-
ding cameras (1), the holding bracket (2) must be remo-
ved and attached again with the two M2 x 5 screws after
inserting the camera.
Attention, important!
The two transparent plastic covers (3) serve to
protect the gimbal when transporting the quad-
rocopter. The covers must be removed before
inserting the flight battery or the camera.
Never operate the camera holder without a ca-
mera inserted.
The missing weight of the camera will cause
the holder to be unbalanced, which will put too
much of a strain on the controlling electronics,
which may be damaged.
Charging the Flight Battery
The 3-cell flight battery is charged using the enclosed
mains unit (1) supplied. For this, open the covers of the
charge adapter (2), so that the two large charging con-
tacts (3) are visible.
Connect the flight battery (4) to the charge adapter ac-
cording to the two middle illustrations in figure 3.
After connecting the enclosed mains cable to the mains
unit, connect the mains plug (5) to a proper mains so-
cket of the public mains.
The indicator lamp at the mains unit lights up red to si-
gnal that charging is in progress. At the same time, the
four LEDs at the flight battery (7) indicate the current
charge condition.
When the flight battery is discharged, only LED 1 is lit.
With increasing battery charge, LED 2 first starts to flash
and then remains lit. This display will also be repeated
in LED 3 and LED 4 as charging continues. Before char-
ging is complete, all 4 LEDs will be permanently lit.
When the flight battery is fully charged, the four LEDs at
the flight battery (7) will go out and the control indicator
at the mains unit (6) will light up green.
Once charging is completed, disconnect the flight batte-
ry from the charge adapter and pull the mains plug from
the mains socket.
Setting up the Transmitter
Inserting the Batteries
The battery compartment lid (1) is located at the rear of
the transmitter. Push the grooved surface
(2) and push the lid off downwards.
www.conrad.com
Ensure that the polarity is correct when inserting the
4 batteries. A corresponding note (3) is located on the
Version 10/16
bottom of the battery compartment.
Commissioning of the Quadrocopter
Checking Activation/Deactivation function of the Flight Battery
Before inserting the flight battery in the quadrocopter, check the activation/deactivation function of the elec-
tronics in the flight battery.
Figure 1
Switching on
To switch on the flight battery, briefly push the on/off but-
ton (1) at the flight battery and release it again at once.
When the flight battery fully charged, the four LEDs of
the flight battery will start to light up.
Now push the on/off button (1) again and keep it pu-
shed. The four LEDs will go out and start to light up
again in sequence (LED 1 to LED 4).
When all four LEDs are lit, release the button again. The
flight battery is now on and voltage is pending on the
rechargeable battery contacts.
Switching Off
Briefly push the on/off button (1) at the flight battery
with the flight battery switched on and release it again
at once. The four LEDs of the flight battery will start to
flash three times.
During this time, push the on/off button (1) again and
keep it pushed. The four LEDs will be lit and then go out
in sequence (LED 4 to LED 1).
When LED 1 has gone dark as well, release the button
again. The flight battery is now off and the battery con-
tacts are powered down.
Figure 2
Inserting the Flight Battery into the Quadrocopter
Before inserting the flight battery in the quadrocopter, briefly push the on/off button on the flight battery. All
four LEDs must be lit for two seconds.
Push the deactivated flight battery (see figure 7, item 1) into the quadrocopter with the charge connection
contacts first. Slightly push the grooved surface of the battery lock (see figure 7, item 2) so that the locking
tab can latch.
When the flight battery has been inserted into the quadrocopter and is locked properly, switch on the trans-
mitter and then the flight battery.
Figure 3
Figure 4
Figure 5
Figure 6
Figure 7
