22
Crossfeed Switch
21
Phonitor Matrix Switch
Phonitor x
Off
On
MATRIX
XLR
RCA
Digital
SOURCE
USB
Optical
Coaxial
DIGITAL
VOLTAiR
120V DC Audio Rail
Mode Switch
Output/Mute Switch
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 45 W
A
Phonitor x
IR
B
PGM
Serial
Refer to
Number
Manual
Connect to SPL
Power Amp(s) for
remote power on/off
AMP CTL
Made in Germany
26
IR PGM Volume
23
Angle Switch
Mute
OUTPUT
Stereo
Mono
MODE
24
26
25
Voltage Selection:
C A U T I O N
1. Remove Fuse Holder
2. Exchange Fuses
RISK OF ELECTRIC SHOCK
3. Flip Over 4. Reinstall
D O N O T O P E N
Fuses:
230V AC: T 500 mA L 250 V
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
115V AC: T 1 A L 250 V
L
R
R
L
SPEAKER OUTPUTS

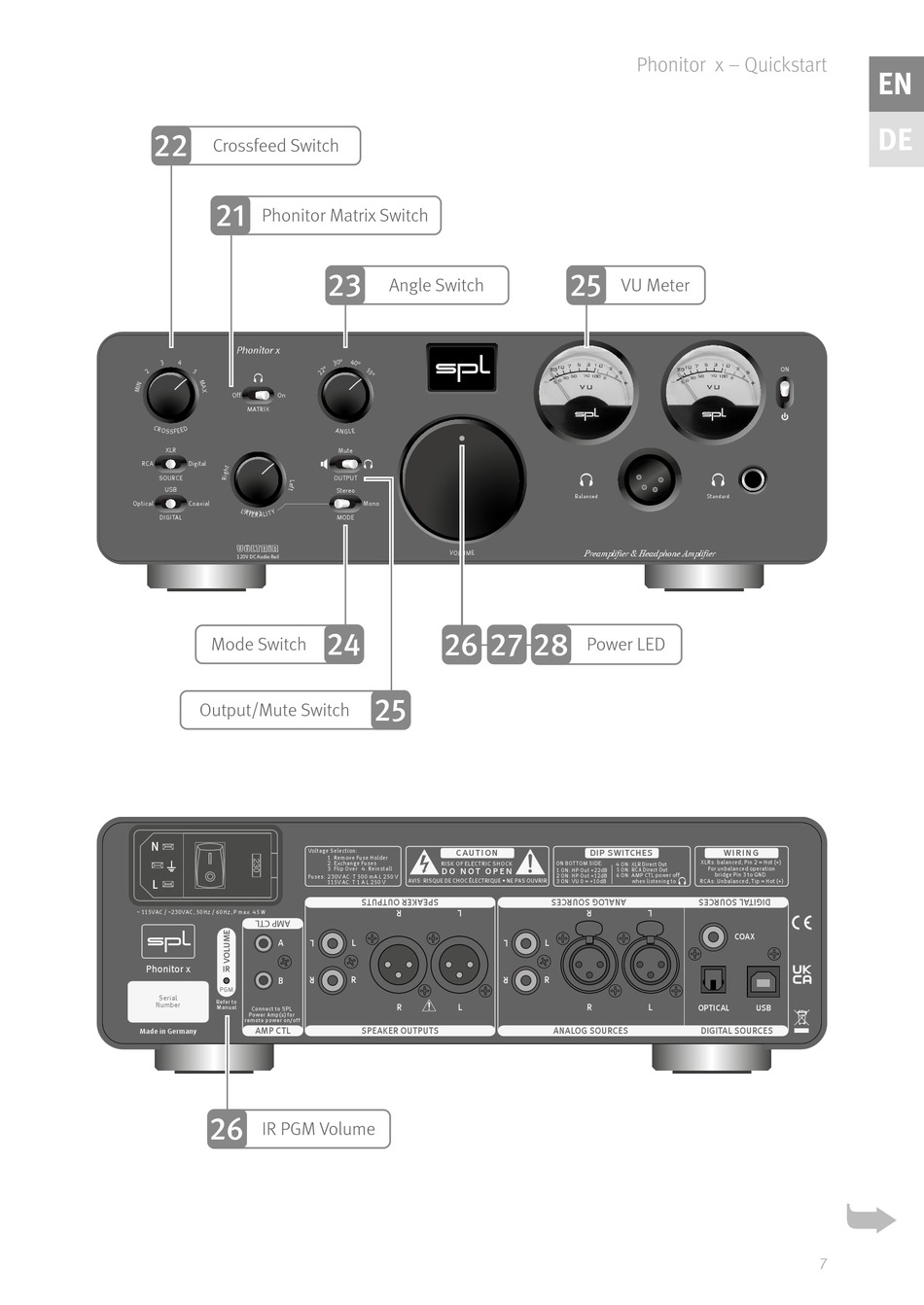

Phonitor x – Quickstart
25
VU Meter
Balanced
Preamplifier & Headphone Amplifier
27
28
Power LED
DIP SWITCHES
ON BOTTOM SIDE:
4 ON: XLR Direct Out
1 ON: HP Out +22dB
5 ON: RCA Direct Out
2 ON: HP Out +12dB
6 ON: AMP CTL power off
when listening to
3 ON: VU 0 = +10dB
L
R
R
L
ANALOG SOURCES
ON
Standard
W I R I N G
XLRs: balanced, Pin 2 = Hot (+)
For unbalanced operation
bridge Pin 3 to GND.
RCAs: Unbalanced, Tip = Hot (+)
COAX
OPTICAL
USB
DIGITAL SOURCES
7
EN
