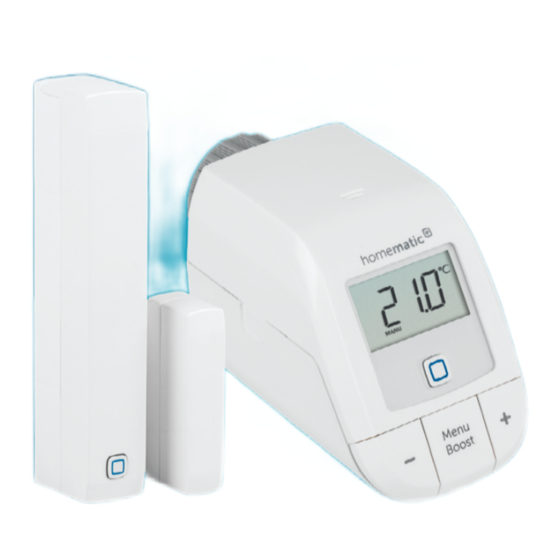

HomeMatic IP HmIP-eTRV-B-2 Installations- Und Bedienungsanleitung

HomeMatic IP HmIP-eTRV-B-2 Installations- Und Bedienungsanleitung

Vorschau ausblenden Andere Handbücher für HmIP-eTRV-B-2:

Werbung

Verfügbare Sprachen
  • DE

Verfügbare Sprachen

  • DEUTSCH, seite 1
Heizkörperthermostat – basic
Radiator Thermostat – basic
HmIP-eTRV-B-2
Installations- und
DE
Bedienungsanleitung
Installation and operating
EN
manual
Notice d'installation et
FR
d'emploi
Manual de instalación
ES
y uso
Istruzioni per l'installazione
IT
e l'uso
Installatie- en
NL
bedieningshandleiding
