CONTROL PANEL INSTALLATION

9.1

DESCRIPTION OF COMPONENTS

Panel Mod. MIKRA2 with 1 calling button Panel Mod. MIKRA2 with 2 calling buttons
(present only in one-household kit ref. 1723/71) (present only in two-household kit ref. 1723/72)

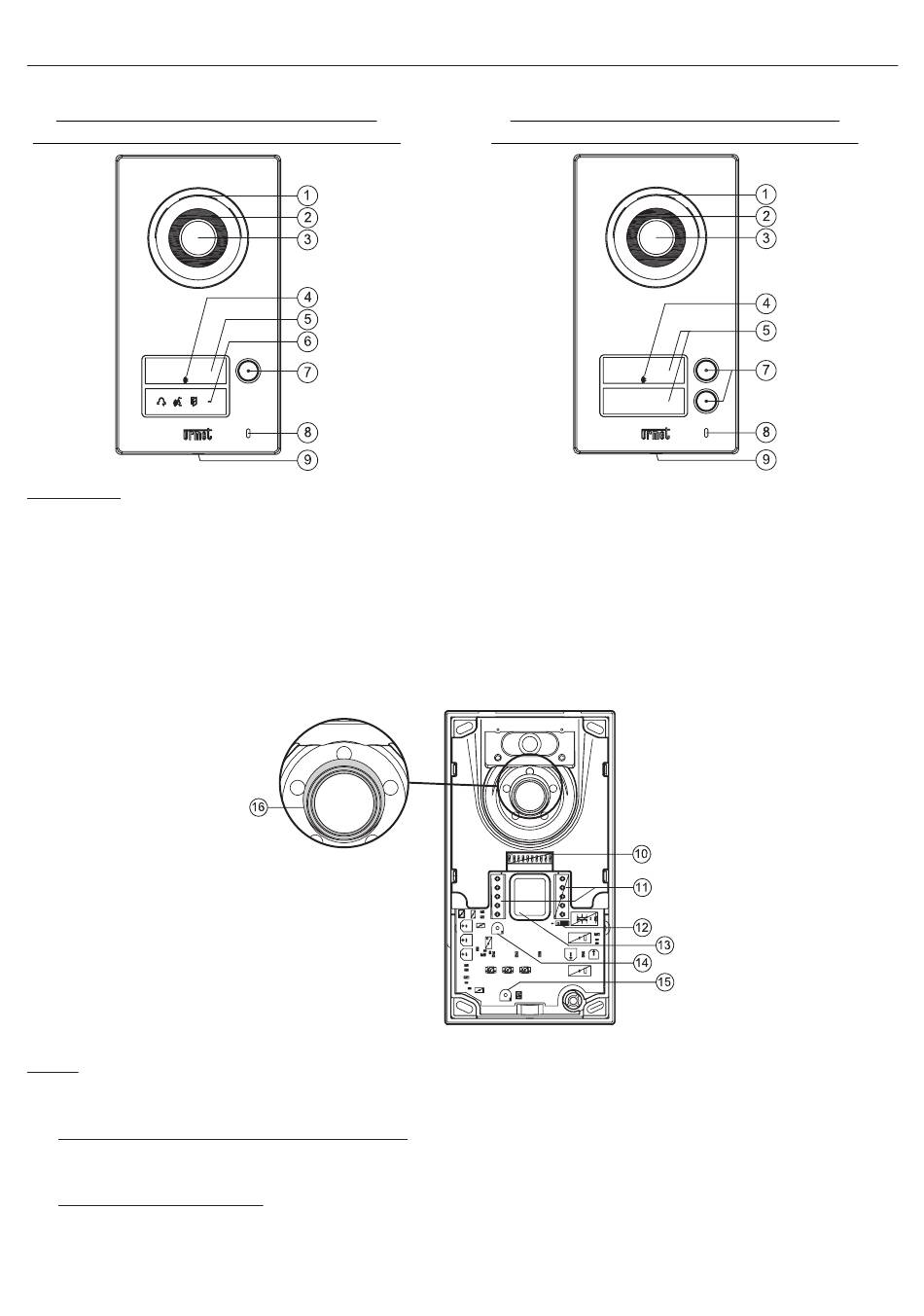

Front panel:
1. Speaker
2. Camera lighting LED
3. Camera
4. Transponder reader
5. Name tag(s)
6. Signalling LEDs dedicated to the DDA function
7. Calling button(s)
8. Microphone
9. Front closing screw
Inside:
10. Confi guration dip-switch:
11. Terminal boards
12. Do not change the position of this jumper!
13. Hole for running wires
14. Speaker volume trimmer
15. Do not turn this trimmer!
16. Anti-refl ection seal
