2. INSTALLATION

IMPORTANT For the correct operation of gesture commands, do not install the device in places
exposed to direct sunlight because the IR sensor is sensitive to light.

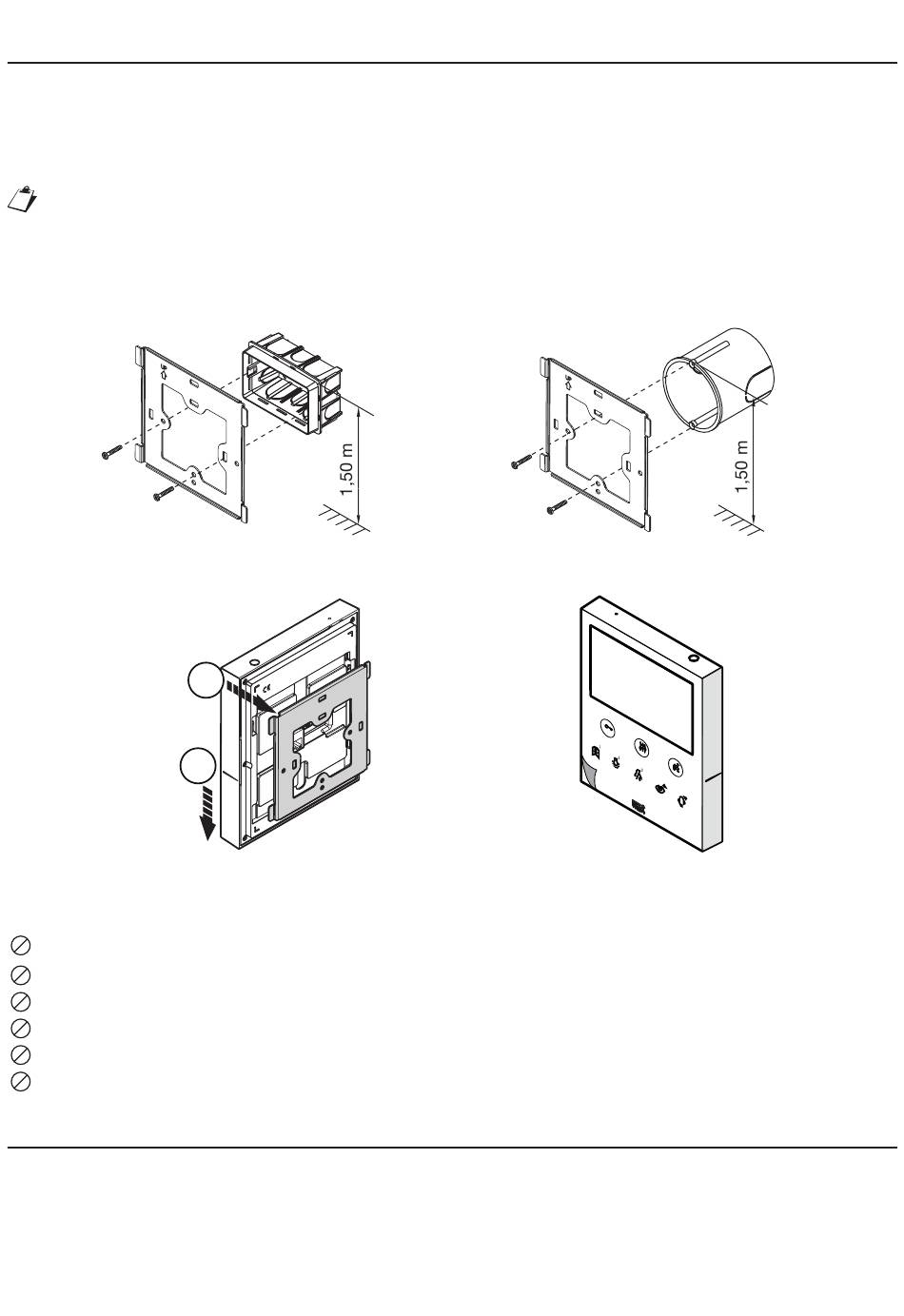

• Embed the flush-mounting box Mod. 503 in the wall or the flush-mounting box Ø 60 at the height shown
in the following drawing.
The flush-mounting box Mod. 503 can be installed either horizontally or vertically.
• Fix the bracket to the mounting box as indicated.
• Make the connections to the terminal board.
• Fix the door phone to the bracket.
• Remove the protective film from the display.
2 x M3.5 x 19 mm
provided

2.1. DESCRIPTION OF TERMINALS

}
S-
Call repeater
S+
]
Panic alarm
PANIC
]
Floor call
FC

3. WIRING INSTRUCTIONS

RJ45 Ethernet Cable
The Ipercom system has been designed to work with the EIA/TIA 568B standard.
• Plug the cable into one of the RJ45 connectors with the Urmet logo.
• Insert the wire in its guide, according to the provided colour code (Standard T568B).
6
Box
Mod. 503
1
2
2 x 2.9 x 13 mm
countersunk screws
Box
Ø 60 mm
