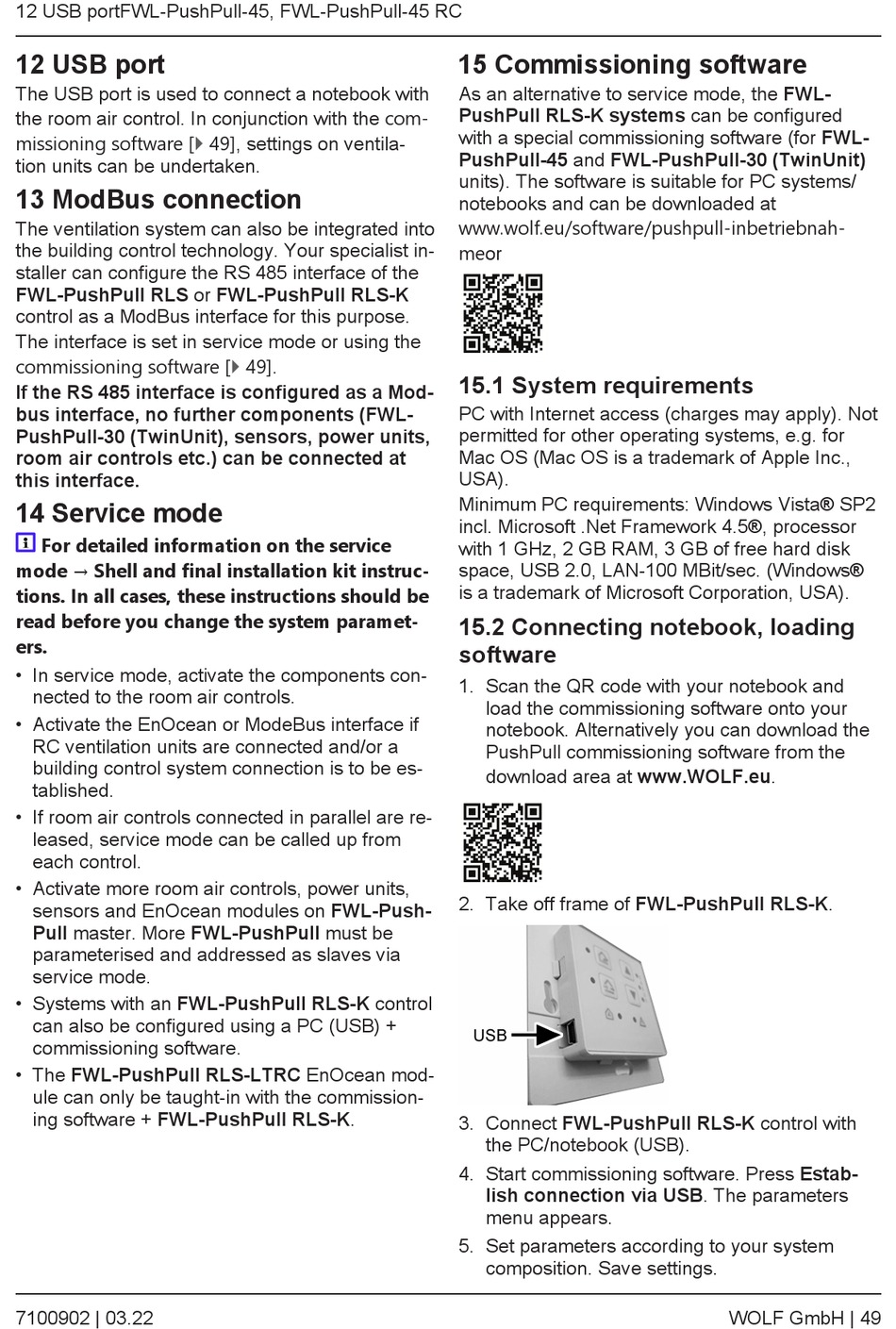

12 USB portFWL-PushPull-45, FWL-PushPull-45 RC

12 USB port

The USB port is used to connect a notebook with
the room air control. In conjunction with the com-
missioning software [} 49], settings on ventila-
tion units can be undertaken.

13 ModBus connection

The ventilation system can also be integrated into
the building control technology. Your specialist in-
staller can configure the RS 485 interface of the
FWL-PushPull RLS or FWL-PushPull RLS-K
control as a ModBus interface for this purpose.
The interface is set in service mode or using the
commissioning software [} 49].
If the RS 485 interface is configured as a Mod-
bus interface, no further components (FWL-
PushPull-30 (TwinUnit), sensors, power units,
room air controls etc.) can be connected at
this interface.

14 Service mode

For detailed information on the service
mode → Shell and final installation kit instruc-
tions. In all cases, these instructions should be
read before you change the system paramet-
ers.
• In service mode, activate the components con-
nected to the room air controls.
• Activate the EnOcean or ModeBus interface if
RC ventilation units are connected and/or a
building control system connection is to be es-
tablished.
• If room air controls connected in parallel are re-
leased, service mode can be called up from
each control.
• Activate more room air controls, power units,
sensors and EnOcean modules on FWL-Push-
Pull master. More FWL-PushPull must be
parameterised and addressed as slaves via
service mode.
• Systems with an FWL-PushPull RLS-K control
can also be configured using a PC (USB) +

commissioning software.

• The FWL-PushPull RLS-LTRC EnOcean mod-
ule can only be taught-in with the commission-
ing software + FWL-PushPull RLS-K.
7100902 | 03.22
15 Commissioning software
As an alternative to service mode, the FWL-
PushPull RLS-K systems can be configured
with a special commissioning software (for FWL-
PushPull-45 and FWL-PushPull-30 (TwinUnit)
units). The software is suitable for PC systems/
notebooks and can be downloaded at
www.wolf.eu/software/pushpull-inbetriebnah-
meor

15.1 System requirements

PC with Internet access (charges may apply). Not
permitted for other operating systems, e.g. for
Mac OS (Mac OS is a trademark of Apple Inc.,
USA).
Minimum PC requirements: Windows Vista® SP2
incl. Microsoft .Net Framework 4.5®, processor
with 1 GHz, 2 GB RAM, 3 GB of free hard disk
space, USB 2.0, LAN-100 MBit/sec. (Windows®
is a trademark of Microsoft Corporation, USA).
15.2 Connecting notebook, loading
software
1. Scan the QR code with your notebook and
load the commissioning software onto your
notebook. Alternatively you can download the
PushPull commissioning software from the
download area at www.WOLF.eu.
2. Take off frame of FWL-PushPull RLS-K.
3. Connect FWL-PushPull RLS-K control with
the PC/notebook (USB).
4. Start commissioning software. Press Estab-
lish connection via USB. The parameters
menu appears.
5. Set parameters according to your system
composition. Save settings.
