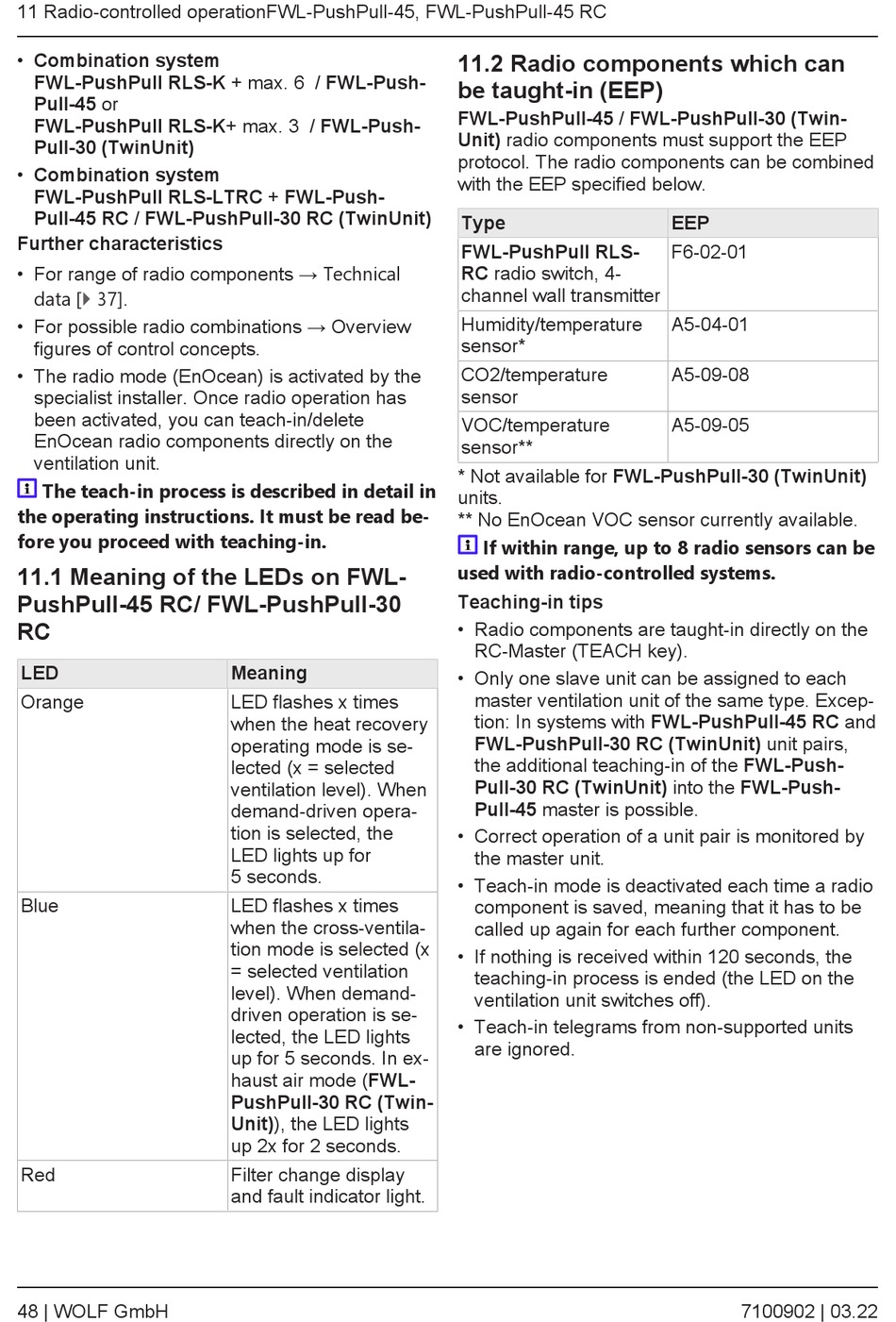

11 Radio-controlled operationFWL-PushPull-45, FWL-PushPull-45 RC
• Combination system
FWL-PushPull RLS-K + max. 6 / FWL-Push-
Pull-45 or
FWL-PushPull RLS-K+ max. 3 / FWL-Push-
Pull-30 (TwinUnit)
• Combination system
FWL-PushPull RLS-LTRC + FWL-Push-
Pull-45 RC / FWL-PushPull-30 RC (TwinUnit)
Further characteristics
• For range of radio components → Technical
data [} 37].
• For possible radio combinations → Overview
figures of control concepts.
• The radio mode (EnOcean) is activated by the
specialist installer. Once radio operation has
been activated, you can teach-in/delete
EnOcean radio components directly on the
ventilation unit.
The teach-in process is described in detail in
the operating instructions. It must be read be-
fore you proceed with teaching-in.
11.1 Meaning of the LEDs on FWL-
PushPull-45 RC/ FWL-PushPull-30
RC
LED
Orange
Blue
Red
48 | WOLF GmbH
Meaning
LED flashes x times
when the heat recovery
operating mode is se-
lected (x = selected
ventilation level). When
demand-driven opera-
tion is selected, the
LED lights up for
5 seconds.
LED flashes x times
when the cross-ventila-
tion mode is selected (x
= selected ventilation
level). When demand-
driven operation is se-
lected, the LED lights
up for 5 seconds. In ex-
haust air mode (FWL-
PushPull-30 RC (Twin-
Unit)), the LED lights
up 2x for 2 seconds.
Filter change display
and fault indicator light.
11.2 Radio components which can
be taught-in (EEP)
FWL-PushPull-45 / FWL-PushPull-30 (Twin-
Unit) radio components must support the EEP
protocol. The radio components can be combined
with the EEP specified below.
Type
FWL-PushPull RLS-
RC radio switch, 4-
channel wall transmitter
Humidity/temperature
sensor*
CO2/temperature
sensor
VOC/temperature
sensor**
* Not available for FWL-PushPull-30 (TwinUnit)
units.
** No EnOcean VOC sensor currently available.
If within range, up to 8 radio sensors can be
used with radio-controlled systems.
Teaching-in tips
• Radio components are taught-in directly on the
RC-Master (TEACH key).
• Only one slave unit can be assigned to each
master ventilation unit of the same type. Excep-
tion: In systems with FWL-PushPull-45 RC and
FWL-PushPull-30 RC (TwinUnit) unit pairs,
the additional teaching-in of the FWL-Push-
Pull-30 RC (TwinUnit) into the FWL-Push-
Pull-45 master is possible.
• Correct operation of a unit pair is monitored by
the master unit.
• Teach-in mode is deactivated each time a radio
component is saved, meaning that it has to be
called up again for each further component.
• If nothing is received within 120 seconds, the
teaching-in process is ended (the LED on the
ventilation unit switches off).
• Teach-in telegrams from non-supported units
are ignored.
EEP
F6-02-01
A5-04-01
A5-09-08
A5-09-05
7100902 | 03.22
