10.1 Remote-Schnittstelle
10 Anhang
10.1
Remote-Schnittstelle
10.1.1
Pin-Belegung der Remote-Schnittstelle
66
■■■■■■■■
5
1
1
9
6
6

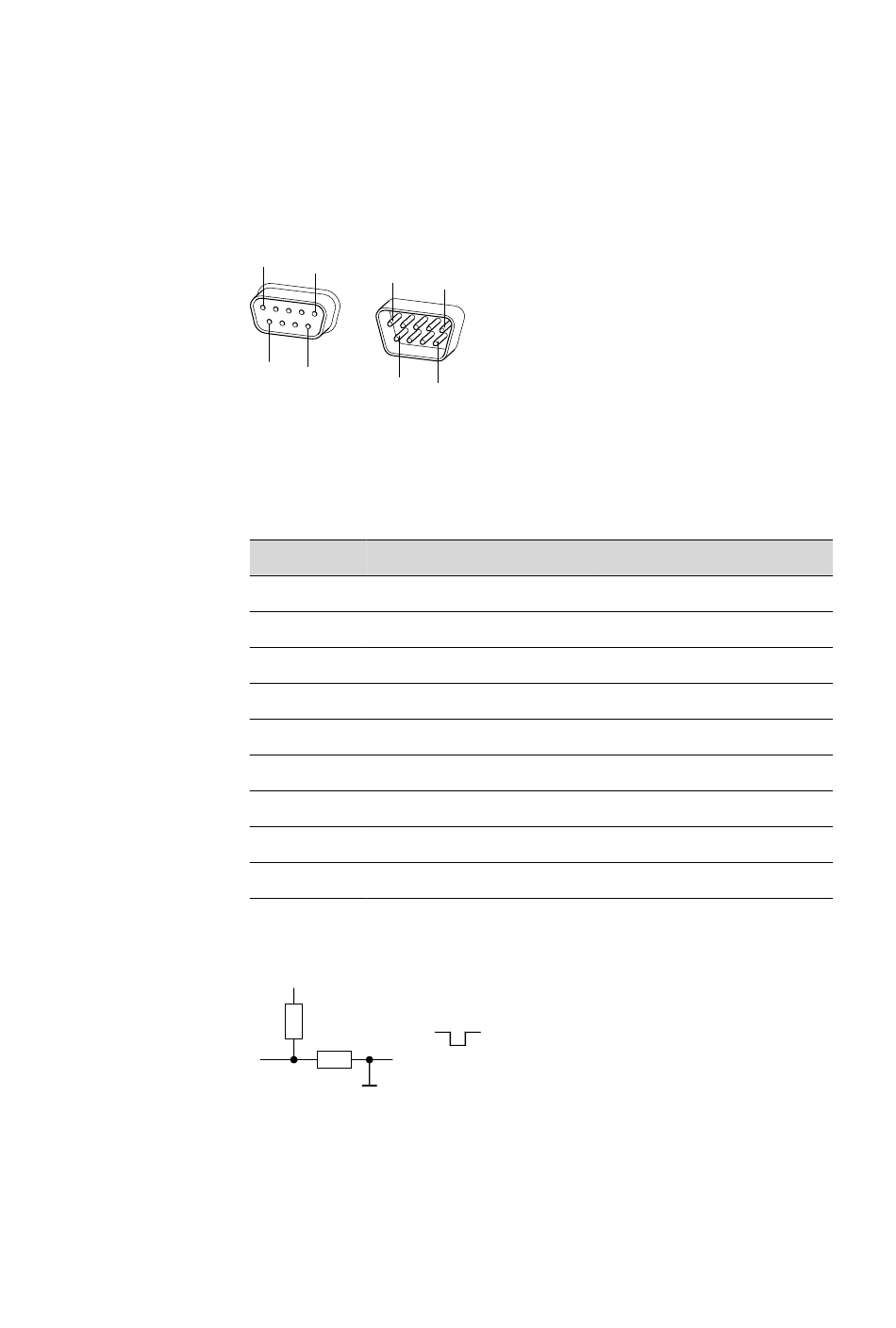

Abbildung 24
Pin-Belegung von Remote-Buchse und Remote-Stecker
Die obige Darstellung der Pin-Belegung gilt für alle Metrohm-Geräte mit 9-
poligem D-Sub-Remote-Anschluss.
Tabelle 1
Eingänge und Ausgänge der Remote-Schnittstelle
Pin-Nr.
Belegung
1
Output 0
2
Output 1
3
Output 2
4
Output 3
5
Output 4
6
0 Volt (GND)
7
+5 Volt
8
Input 0
9
Input 1
Inputs
+5 V
5
9
ca. 5 kΩ Pull-up
t p
t
> 100 ms
P
aktiv = low, inaktiv = high
■■■■■■■■■■■■■■■■■■■■■■
Funktion
Sample ready
Dosimat
Pump 1
Pump 2
Error
Continue
Stop
