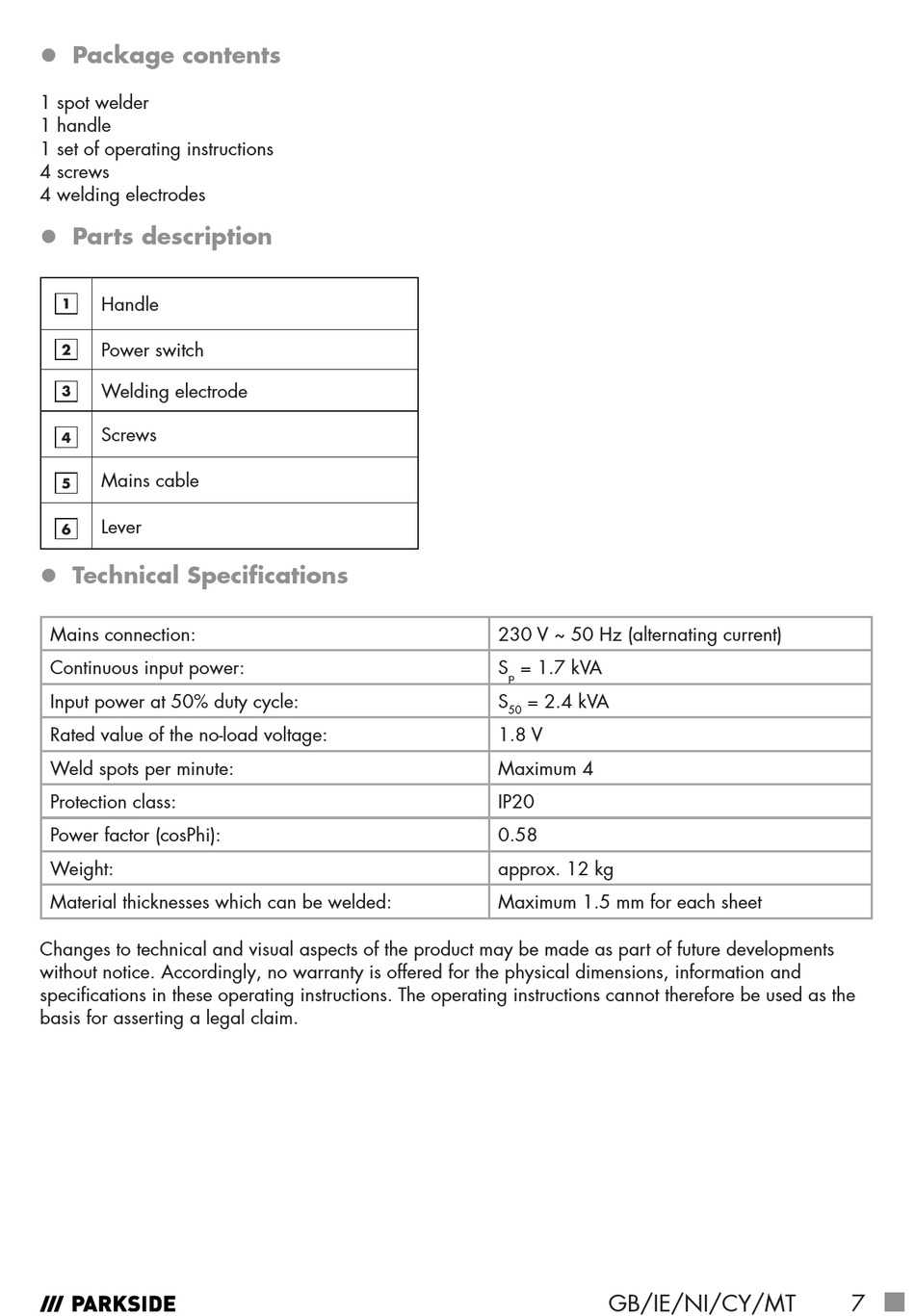

z Package contents
1 spot welder
1 handle
1 set of operating instructions
4 screws
4 welding electrodes
z Parts description
Handle
1
Power switch
2
Welding electrode
3
Screws
4
Mains cable
5
Lever
6
z Technical Specifications
Mains connection:
Continuous input power:
Input power at 50% duty cycle:
Rated value of the no-load voltage:
Weld spots per minute:
Protection class:
Power factor (cosPhi):
Weight:
Material thicknesses which can be welded:
Changes to technical and visual aspects of the product may be made as part of future developments
without notice. Accordingly, no warranty is offered for the physical dimensions, information and
specifications in these operating instructions. The operating instructions cannot therefore be used as the
basis for asserting a legal claim.
230 V ~ 50 Hz (alternating current)
S = 1.7 kVA
p
S = 2.4 kVA
50
1.8 V
Maximum 4
IP20
0.58
approx. 12 kg
Maximum 1.5 mm for each sheet
GB/IE/NI/CY/MT
7
