2-32 CSMS variant RRS with automatic start

BERNSTEIN products that might be used for the application:
High-level coding (unicode)
6075988057 – CSMS-SET-RRS-H-KA
●
6075988058 – CSMS-SET-RRS-H-ST
●
Low-level coding (multicode)
6075988066 – CSMS-SET-RRS-L-ST
●
6075988068 – CSMS-SET-RRS-L-MA
●
Application:
Three safety guards will be monitored by three CSMS units.
The individual CSMS will be switched in series.
The safety outputs of the last CSMS will be directly
connected to contactors.
The return circuit monitoring of the contactors will be done
by the first CSMS. This configuration allows an automatic
start once the safety guard is closed. A risk analysis of the
machine shows whether an automatic start can be used or
not.
The CSMS system can be used without any other safety
controllers for safety-related control of contactors with
positive driven contacts.

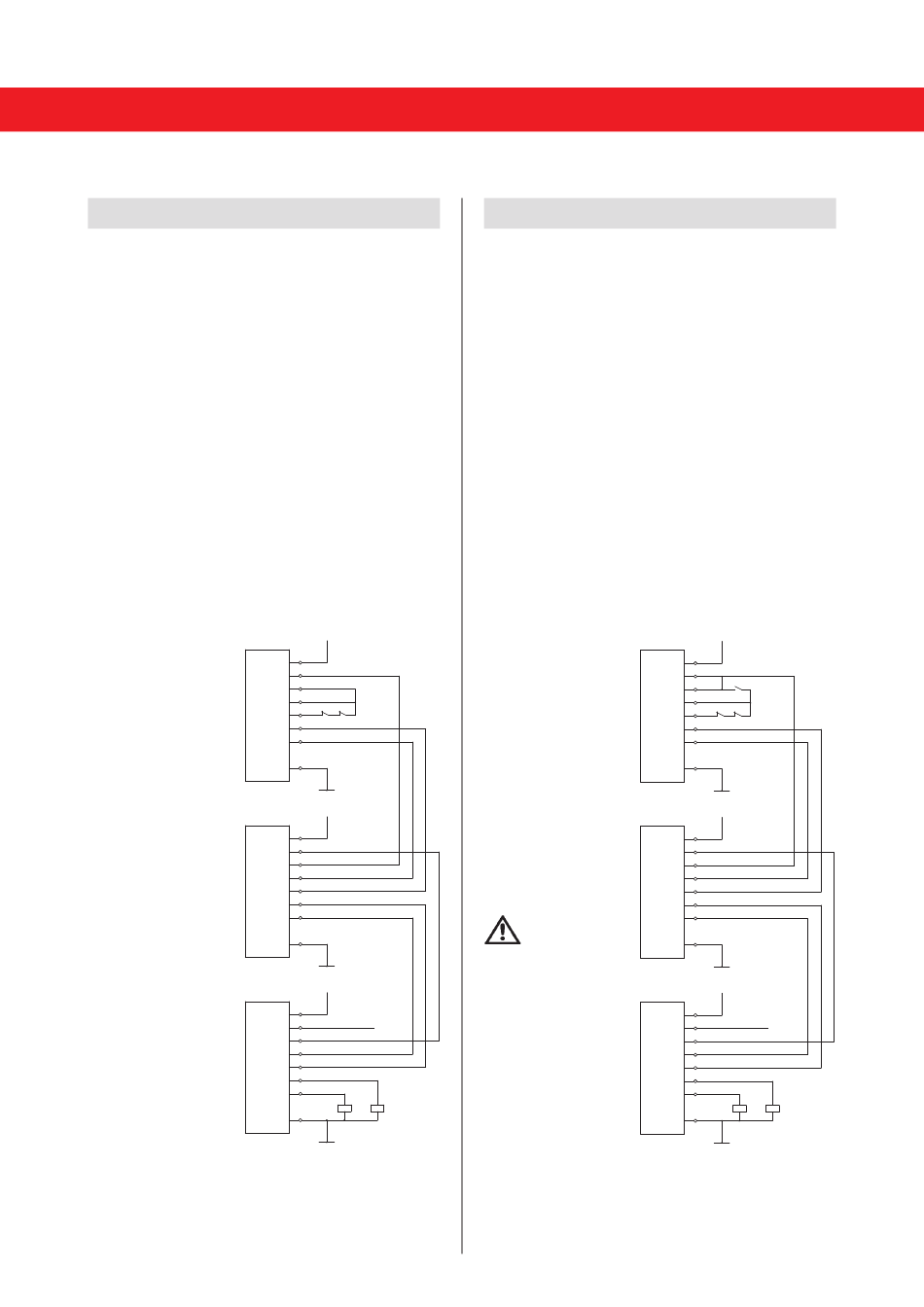

Connecting diagram
CSMS 1
CSMS 2
CSMS 3
Functional test
Due to the automatic start, the last CSMS switches on the
CSMS-RRS mit automatischem Start
safety outputs once the safety guard is closed (after the
actuator has been detected). The function can be verified by
means of the LED displays (for status display of the blinking
pattern see page 32).
30
24V
8 RD
+
4
YE
Do
1 WH
Di
3
GN
I2/Q3
2
BN K1 K2
I1
5
GY
Q1
6
PK
Q2
7 BU
–
24V
8
RD
+
4
YE
Do
1 WH
Di
3
GN
I2/Q3
2
BN
I1
5
GY
Q1
6
PK
Q2
7
BU
–
24V
8
RD
+
4
YE
Do Diagnostic
1 WH
Di
3
GN
I2/Q3
2
BN
I1
5
GY
Q1
6
PK
Q2
7
BU K1 K2
–
Fig. 22

2-32 CSMS variant RRS with manual start

BERNSTEIN products that might be used for the application:
High-level coding (unicode)
6075988057 – CSMS-SET-RRS-H-KA
●
6075988058 – CSMS-SET-RRS-H-ST
●
Low-level coding (multicode)
6075988066 – CSMS-SET-RRS-L-ST
●
6075988068 – CSMS-SET-RRS-L-MA
●
Application:
Three safety guards will be monitored by three CSMS units.
The individual CSMS will be switched in series.
The safety outputs of the last CSMS will be directly
connected to contactors.
The return circuit monitoring of the contactors will be done
by the CSMS. This configuration allows an automatic start by
the button connected to the CSMS.
The CSMS system can be used without any other safety
controllers for safety-related control of contactors with
positive driven contacts.
Connecting diagram
CSMS 1
CSMS 2
Faulty wiring
may result in a
circumvention of
the start button and
the system has an
automatic start-up.
CSMS 3
Functional test
As soon as the safety guard is closed and the actuator has
been detected, the safety outputs can be switched on
by actuating the start button. The function can be verified by
means of the LED displays (for status display of the blinking
pattern see page 32).
24V
8
RD
+
4
YE
Do
1 Start
WH
Di
3
GN
I2/Q3
2
BN K1 K2
I1
5
GY
Q1
6 PK
Q2
7 BU
–
24V
8
RD
+
4 YE
Do
1
WH
Di
3
GN
I2/Q3
2
BN
I1
5
GY
Q1
6 PK
Q2
7 BU
–
24V
8
RD
+
4 YE
Diagnostic
Do
1
WH
Di
3
GN
I2/Q3
2
BN
I1
5
GY
Q1
6 PK
Q2
7 BU K1 K2
–
Fig. 23
CSMS-RRS mit manuellem Start
