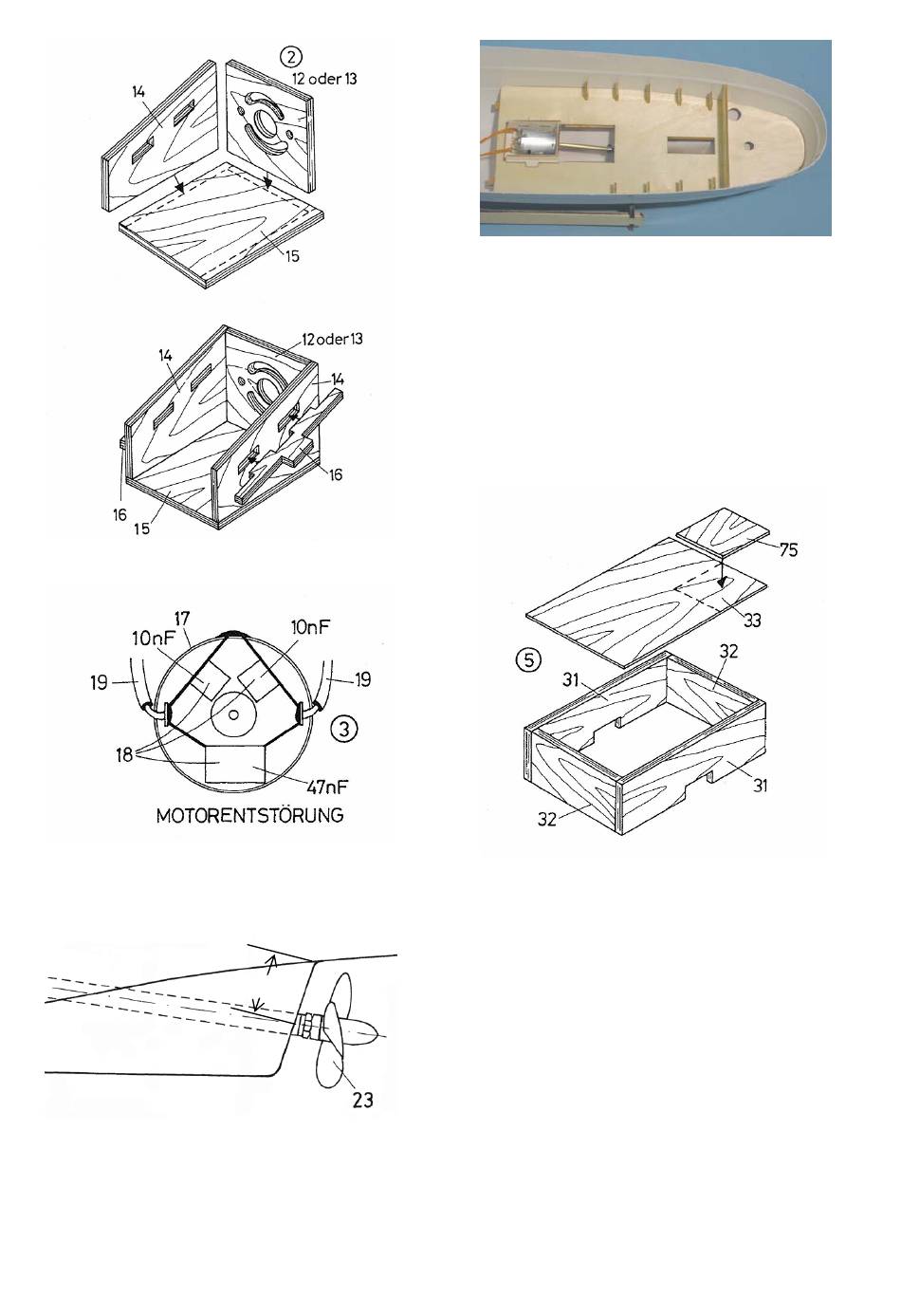

8. Parts 12 to 16. Assemble the motor
mount as shown on drawing 2.
Then refer to drawing 3. Solder on the
motor wires and suppression capacitors.
Screw the motor to the mount with the
screws provided.
9. Parts 21 to 28. Carefully drill the hull to
accept the prop shaft, use an undersize
drill and file to fit. Insert the shaft and tube
and with the motor in position coupling 26
as an aligning jig to ensure complete
accuracy.
21 mm
Carefully drill pilot holes for the motor
mount screws and screw the mount in
position. When fixed Epoxy glue the shaft
and support 28 in position.
10.
Parts 29 to 33. Place the forward
locker cover 29 in the lower deck to the
rear of the removable engine cover. Glue
the main engine room coaming 30 in
place.
Assemble the engine room cover as
shown in drawing 5. Part 75 door step
panel can be fitted later after painting.
11. Parts 34 to 38. Mark and drill a hole
for the rudder shaft 35. The rudder tube
34 rests on the hull and should be
epoxied in place. Make up the rudder and
sand to the profile as shown on the plan.
Fit the rudder in place and fit the servo
control arm 104.
