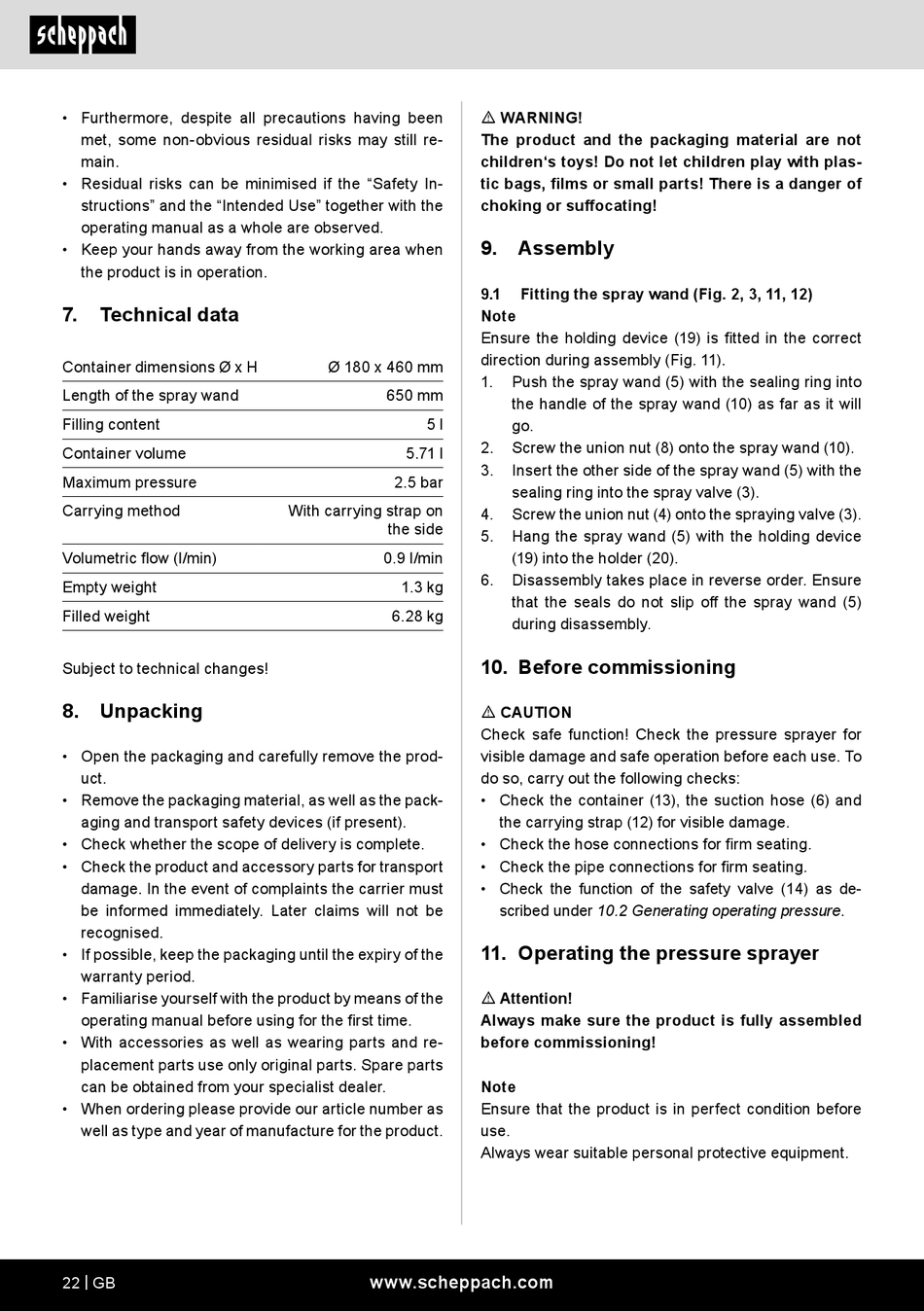

• Furthermore, despite all precautions having been
met, some non-obvious residual risks may still re-
main.
• Residual risks can be minimised if the "Safety In-
structions" and the "Intended Use" together with the
operating manual as a whole are observed.
• Keep your hands away from the working area when
the product is in operation.
7.
Technical data
Container dimensions Ø x H
Length of the spray wand
Filling content
Container volume
Maximum pressure
Carrying method
Volumetric flow (l/min)
Empty weight
Filled weight
Subject to technical changes!
8. Unpacking
• Open the packaging and carefully remove the prod-
uct.
• Remove the packaging material, as well as the pack-
aging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the product and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of the
warranty period.
• Familiarise yourself with the product by means of the
operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Spare parts
can be obtained from your specialist dealer.
• When ordering please provide our article number as
well as type and year of manufacture for the product.
22 | GB
Ø 180 x 460 mm
650 mm
5 l
5.71 l
2.5 bar
With carrying strap on
the side
0.9 l/min
1.3 kg
6.28 kg
www.scheppach.com
m WARNING!
The product and the packaging material are not
children's toys! Do not let children play with plas-
tic bags, films or small parts! There is a danger of
choking or suffocating!
9.
Assembly
9.1
Fitting the spray wand (Fig. 2, 3, 11, 12)
Note
Ensure the holding device (19) is fitted in the correct
direction during assembly (Fig. 11).
1.
Push the spray wand (5) with the sealing ring into
the handle of the spray wand (10) as far as it will
go.
2.
Screw the union nut (8) onto the spray wand (10).
3.
Insert the other side of the spray wand (5) with the
sealing ring into the spray valve (3).
4.
Screw the union nut (4) onto the spraying valve (3).
5.
Hang the spray wand (5) with the holding device
(19) into the holder (20).
6.
Disassembly takes place in reverse order. Ensure
that the seals do not slip off the spray wand (5)
during disassembly.
10. Before commissioning
m CAUTION
Check safe function! Check the pressure sprayer for
visible damage and safe operation before each use. To
do so, carry out the following checks:
• Check the container (13), the suction hose (6) and
the carrying strap (12) for visible damage.
• Check the hose connections for firm seating.
• Check the pipe connections for firm seating.
• Check the function of the safety valve (14) as de-
scribed under 10.2 Generating operating pressure.
11. Operating the pressure sprayer
m Attention!
Always make sure the product is fully assembled
before commissioning!
Note
Ensure that the product is in perfect condition before
use.
Always wear suitable personal protective equipment.
