Installation

Tools Needed

-Medium Philips screwdriver; -Tape measure or ruler; -Knife
or scissors; -Saw (optional, to shorten window adaptor for
narrow windows)

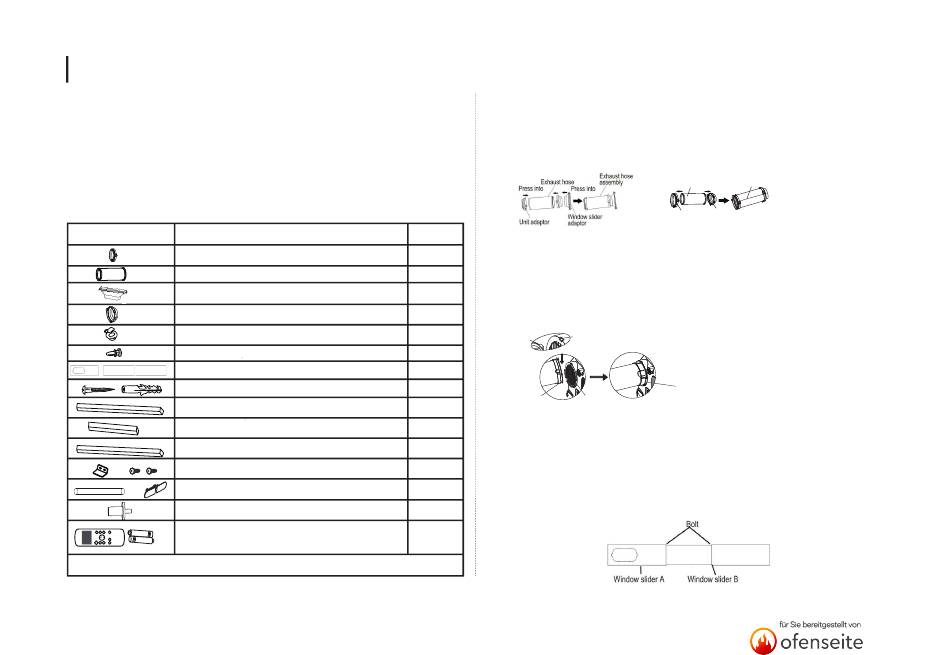

Accessories
Your Window Installation Kit fits windows 67.5-123cm
(26.5-48") and can be shortened for smaller windows.
Part
Unit Adaptor
Exhaust Hose
Window Slider Adaptor
Wall Exhaust Adaptor A (only for wall installation)
Wall Exhaust Adaptor B(with cap)(only for wall installation)
Window Slider A(with hole), Window Slider B
Screw and anchor (only for wall installation)
Foam Seal A (Adhesive)
*
Foam Seal B (Adhesive)
*
Foam Seal C (Non-adhesive)
*
Security Bracket and 2 Screws
*
Drain Hose,
Drain Hose Adaptor(only for heat pump mode)
Remote Controller and Battery
(For remote control models only)
Items with are optional. Slight variations in design may occur.
*
Description Quantity
1 pc
1 pc
1 pc
1 pc
1 pc
Bolt 1 pc
1 set
4 set
2 pc
2 pc
1 pc
1 set
Power Cord Buckle 1 set
1 pc
1 set
Window Installation Kit(optional)
Step One: Preparing the Exhaust Hose assembly
Press the exhaust hose into the window slider adaptor (into wall
window slider adaptor for wall installation) and unit adaptor,
clamp automatically by elastic buckles of the adaptors.
Type window installation
Step Two: Install the Exhaust hose assembly to the unit
Insert unit adaptor of the Exhaust hose assembly into the lower
groove of the air outlet of the unit while the hook of the adaptor
is aligned with the hole seat of the air outlet and slide down the
Exhaust hose assembly along the arrow direction for installation.
Hook
Hole Seat
Lower groove
adaptor
Step Three: Preparing the Adjustable Window Slider
1. Depending on the size of your window, adjust the size
of the window slider.
2. If the length of the window requires two window sliders,
use the bolt to fasten the window sliders once they are
adjusted to the proper length.
8
Exhaust hose assembly
Exhaust hose
Unit adaptor Wall exhaust adaptor A
Type wall window installation
Make sure the adaptor is inserted into the
lower groove of the air outlet.
