- Carefully trim the edge excess putty with a tool
(fi g. 10/B ).
- In order to avoid accidental touch with the overhe-
ating bottom of the hob, during the working, is ne-
cessary to put a wooden insert, fi xed by screws, at
a minimum distance of 70 mm from the top (see fi g.
9).
IMPORTANT!
A perfect installation, adjustment or transforma-
tion of the cook top to use other gases requires
a QUALIFIED INSTALLER: a failure to follow this
rule will void the warranty.
IMPORTANT INSTALLATION
INSTRUCTIONS
The installer should note that the appliance that
side walls should be no higher than the hot pla-
te itself. Furthermore, the rear wall, the surfaces
surrounding and adjacent to the appliance must
be able to withstand a temperature of 90 °C.
The adhesive used to stick the plastic laminate
to the cabinet must be able to withstand a tem-
perature of not less than 150 °C otherwise the
laminate could come unstuck.
This appliance is not connected to a device able
to dispose of the combustion fumes. It must the-
refore be connected in compliance with the abo-
ve mentioned installation standards. Particular
care should be paid to the following provisions
governing ventilation and aeration.

5) ROOM VENTILATION

To ensure correct operation of the appliance, it is
important to ensure that the room where the hot pla-
te is installed has suffi cient ventilation, as set out in
BS
5440 part 2. 1989. See table below.
Natural air fl ow must enter directly through perma-
nent openings in the walls of the room in question.
These must open towards the outside and possess
a minimum section of 100 cm2 see fi g. 3). It must
be impossible to obstruct these openings.
Indirect ventilation with air drawn from adjacent ro-
oms is permitted in strict compliance with the provi-
sions in force.
6) LOCATION AND AERATION
Gas cooking appliances must always dispose of
their combustion fumes through hoods. These must
be connected to fl ues, chimneys or straight outside
(see fi g. 4). If it is not possible to install a hood, an
electric fan can be installed on a window or on a
wall facing outside (see fi g. 5). This must be acti-
vated at the same time as the appliance, so long
INSTALLATION
as the specifi cations in the provisions in force are
strictly complied with.

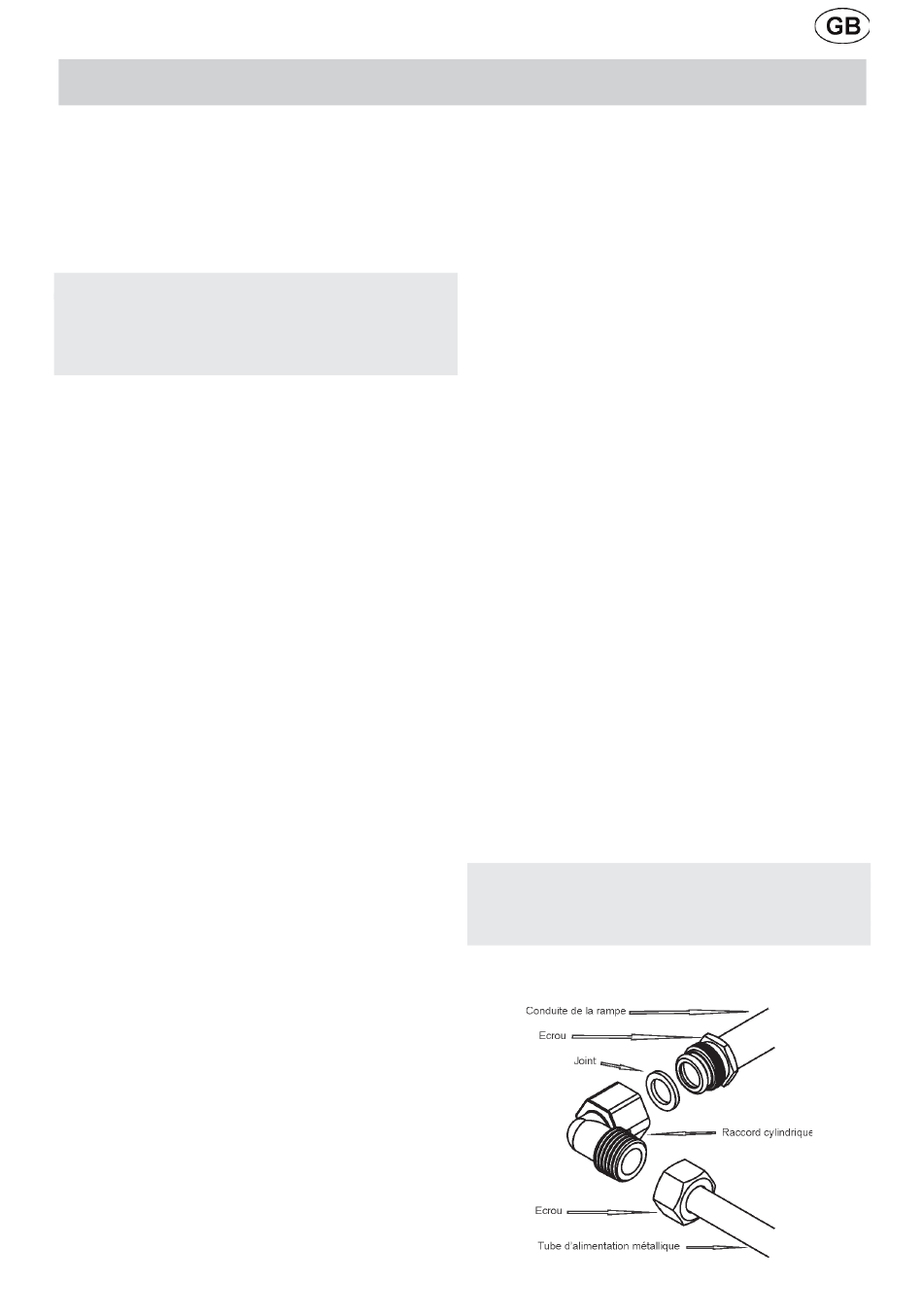

7) GAS CONNECTION

Before connecting the appliance, check that the va-
lues on the data label affi xed to the underside of the
hot plate correspond to those of the gas mains in
the home.
A label on this manual and on the product indicates
the type of gas and pressure adjustment.
WARNING:
a gas hot plate can only be connected by a COR-
GI Registered engineer.
Installations should be carried out in accordan-
ce with BS 6891 1988 and must comply with the
Gas Safety Regulations.
All hot plate installations must include an isola-
tion tap.
GAS PRESSURE TEST
Some hot plates models have a test point fi tted un-
der the control panel, to conduct a gas pressure test
proceed as follows:
- turn off the gas supply.
- Remove screw in the pressure test point, place
test gauge connecting tube on test point.
- Fit a burner ring and cap onto burner assembly,
replace control knob onto corresponding control tap
for the burner.
- Turn on gas and ascertain working pressure.
After test, turn off control tap, turn off gas supply,
disconnect test gauge connecting tube.
Replace the test point screw, turn gas back on and
test for soundness. Reassemble the hotplate.
IMPORTANT:
The appliance complies with the provisions of
the sub-regulations for European Directives:
- Regulation (EU) 2016/426.
31
