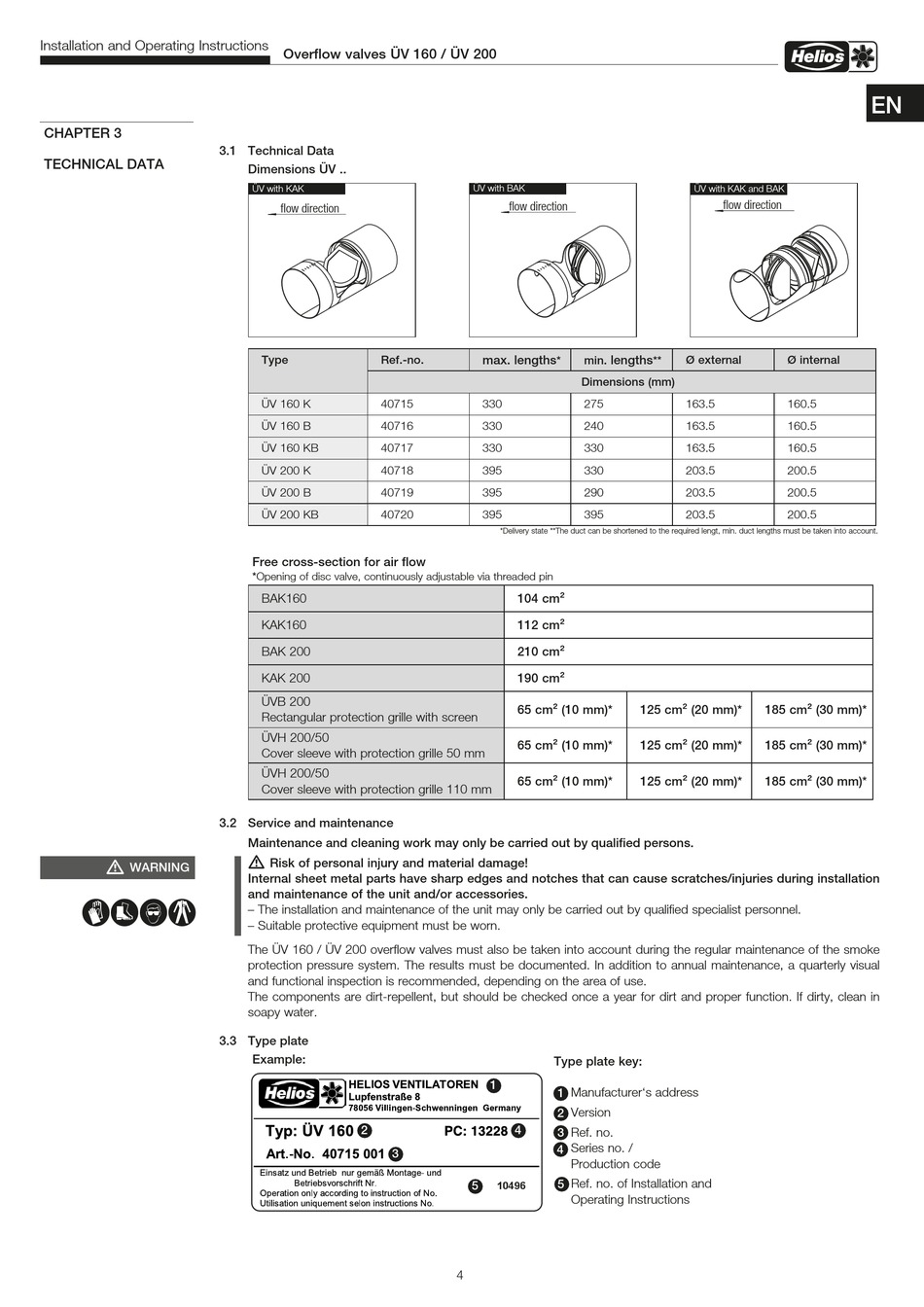

Installation and Operating Instructions
CHAPTER 3
TECHNICAL DATA
m
WARNING
nmlr
Overflow valves ÜV 160 / ÜV 200
3.1 Technical Data
Dimensions ÜV ..
ÜV with KAK
flow direction
Förderrichtung
Type
Ref.-no.
ÜV 160 K
40715
ÜV 160 B
40716
ÜV 160 KB
40717
ÜV 200 K
40718
ÜV 200 B
40719
ÜV 200 KB
40720
Free cross-section for air flow
*Opening of disc valve, continuously adjustable via threaded pin
BAK160
KAK160
BAK 200
KAK 200
ÜVB 200
Rectangular protection grille with screen
ÜVH 200/50
Cover sleeve with protection grille 50 mm
ÜVH 200/50
Cover sleeve with protection grille 110 mm
3.2 Service and maintenance
Maintenance and cleaning work may only be carried out by qualified persons.
m
Risk of personal injury and material damage!
Internal sheet metal parts have sharp edges and notches that can cause scratches/injuries during installation
and maintenance of the unit and/or accessories.
– The installation and maintenance of the unit may only be carried out by qualified specialist personnel.
– Suitable protective equipment must be worn.
The ÜV 160 / ÜV 200 overflow valves must also be taken into account during the regular maintenance of the smoke
protection pressure system. The results must be documented. In addition to annual maintenance, a quarterly visual
and functional inspection is recommended, depending on the area of use.
The components are dirt-repellent, but should be checked once a year for dirt and proper function. If dirty, clean in
soapy water.
3.3 Type plate
Example:
2
3
ÜV with BAK
flow direction
Förderrichtung
max. lengths
lengths
*
min.
Dimensions (mm)
330
275
330
240
330
330
395
330
395
290
395
395
*Delivery state **The duct can be shortened to the required lengt, min. duct lengths must be taken into account.
104 cm²
112 cm²
210 cm²
190 cm²
65 cm² (10 mm)*
65 cm² (10 mm)*
65 cm² (10 mm)*
Type plate key:
1
1
Manufacturer's address
Version
2
4
3
Ref. no.
Series no. /
4
Production code
Ref. no. of Installation and
5
5
10496
Operating Instructions
4
ÜV with KAK and BAK
flow direction
Förderrichtung
**
Ø external
Ø internal
163.5
160.5
163.5
160.5
163.5
160.5
203.5
200.5
203.5
200.5
203.5
200.5
125 cm² (20 mm)*
185 cm² (30 mm)*
125 cm² (20 mm)*
185 cm² (30 mm)*
125 cm² (20 mm)*
185 cm² (30 mm)*
EN
